Sea-doo 2005 4-Tec models User Manual

Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)
ELECTRICAL CONNECTORS
SERVICE TOOLS
Description Part Number Page
crimper die............................................................................
529 035 906 ......................................... 304
crimper die............................................................................
529 035 908 ......................................... 300
crimping pliers ......................................................................
529 035 730 ......................................... 305
crimping tool.........................................................................
529 035 909
................................. 300, 304
DEUTSCH CONNECTORS
Deutsch connectors are used on some harnesses.

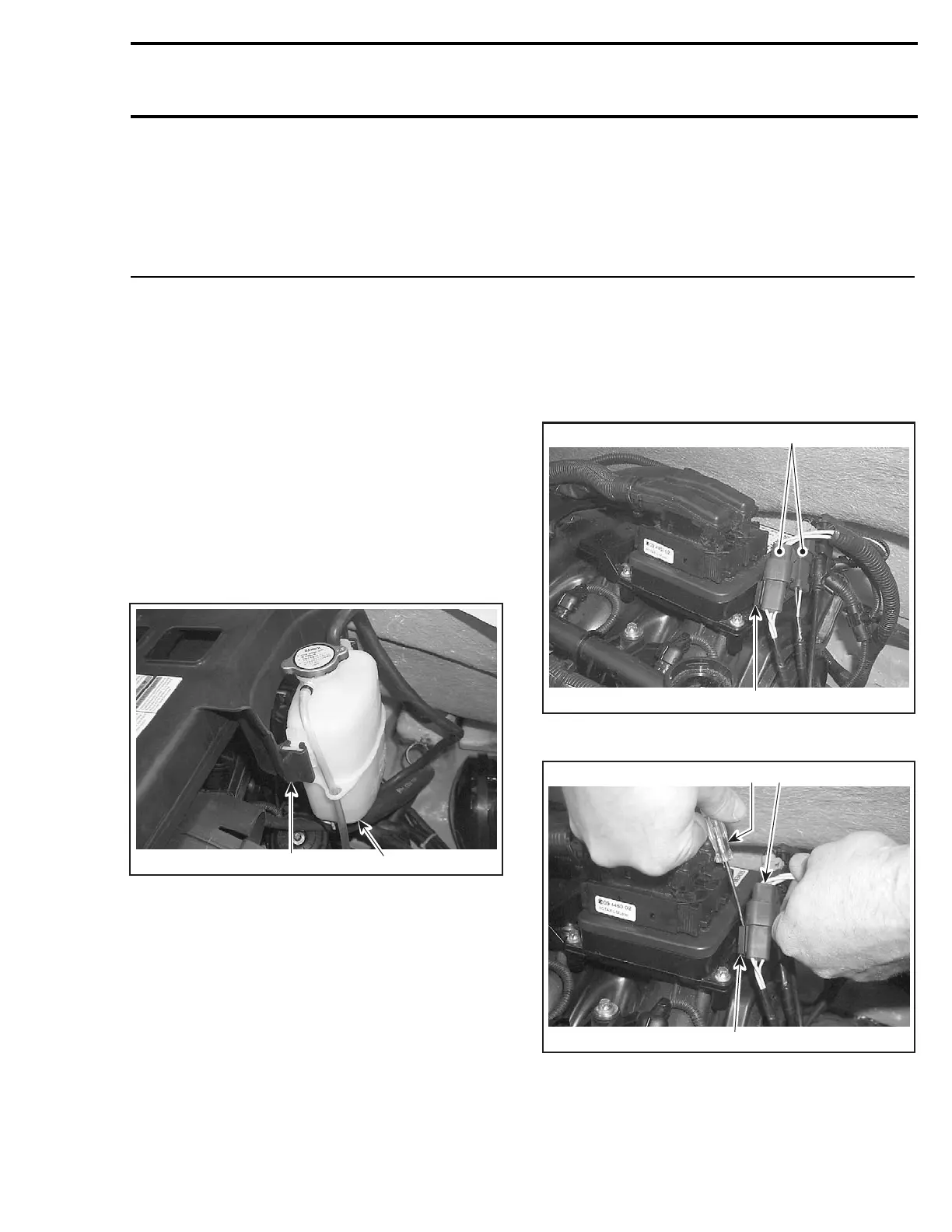

Removal from Engine Connector
Bracket
To remove Deutsch connectors from engine con-
nector bracket, remove the expansion coolant
tank.
1
F18Z0IA
2
1. Expansion coolant tank
2. Tank bracket
Slide a flat screwdriver between the connector
bracket and the Deutsch connectors and remove
connectors.
1
F18Z0JA
2
1. Engine connector bracket
2. Deutsch connectors
1
F18Z0KA
23
1. Engine connector bracket
2. Deutsch connectors
3. Flat screwdriver
smr2005-026 295
