Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

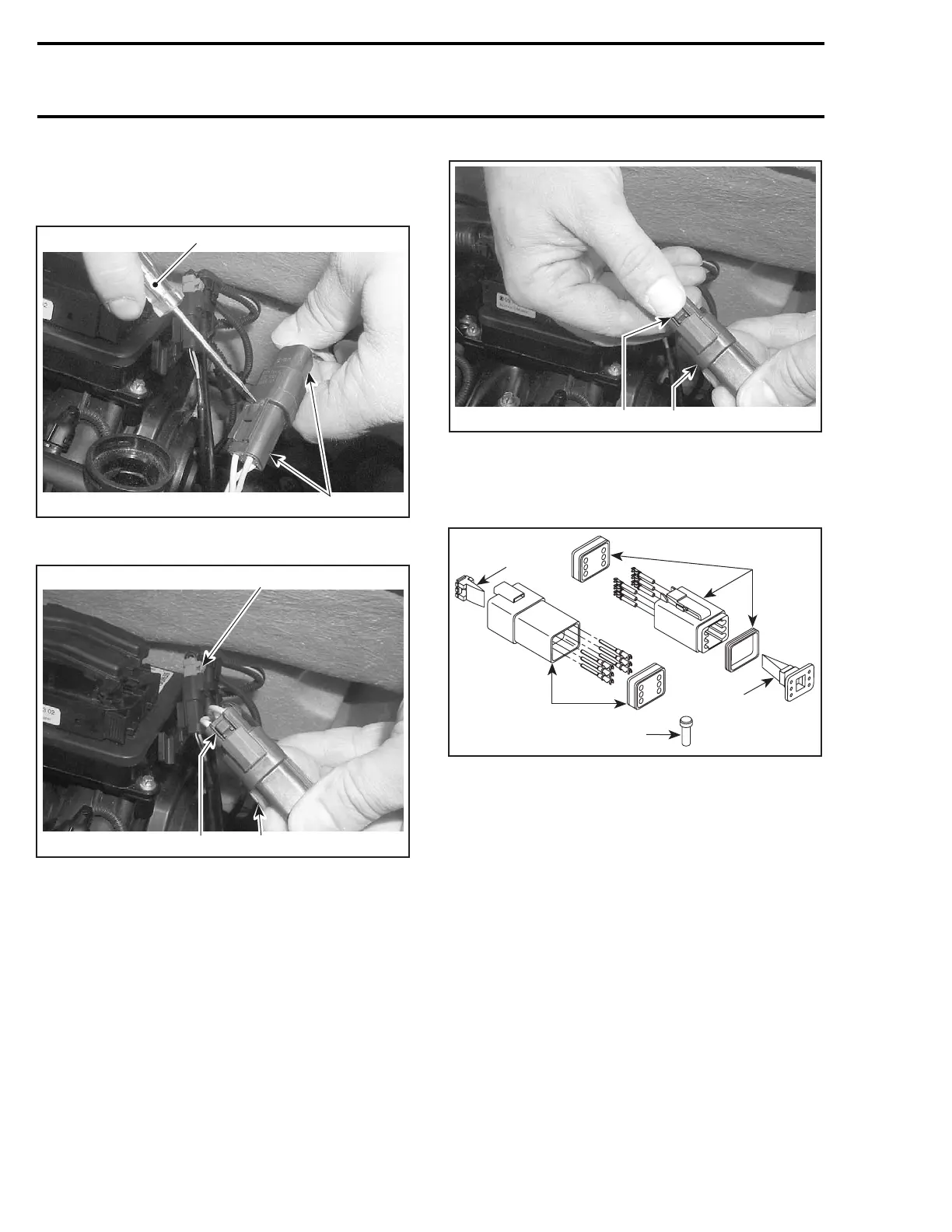

To disconnect the two Deutsch connectors, slide a
flat screwdriver between each other to disengage,
press the release button and disconnect them.
1
F18Z0LA
2
1. Flat screwdriver
2. Deutsch connectors
2
F18Z0MA
2
1
1. Release button
2. Deutsch connectors
F18Z0NA
1
2
1. Deutsch connectors
2. Press release button
Connector Disassembly
F00H1CA
1
3
4
2
3
1. Male connector
2. Female connector
3. Secondary lock
4. Sealing cap
CAUTION: Do not apply dielectric grease on
terminal inside connector.
To remove terminals from connector, proceed as
follows:
– Using a long nose pliers, pull out the lock.
