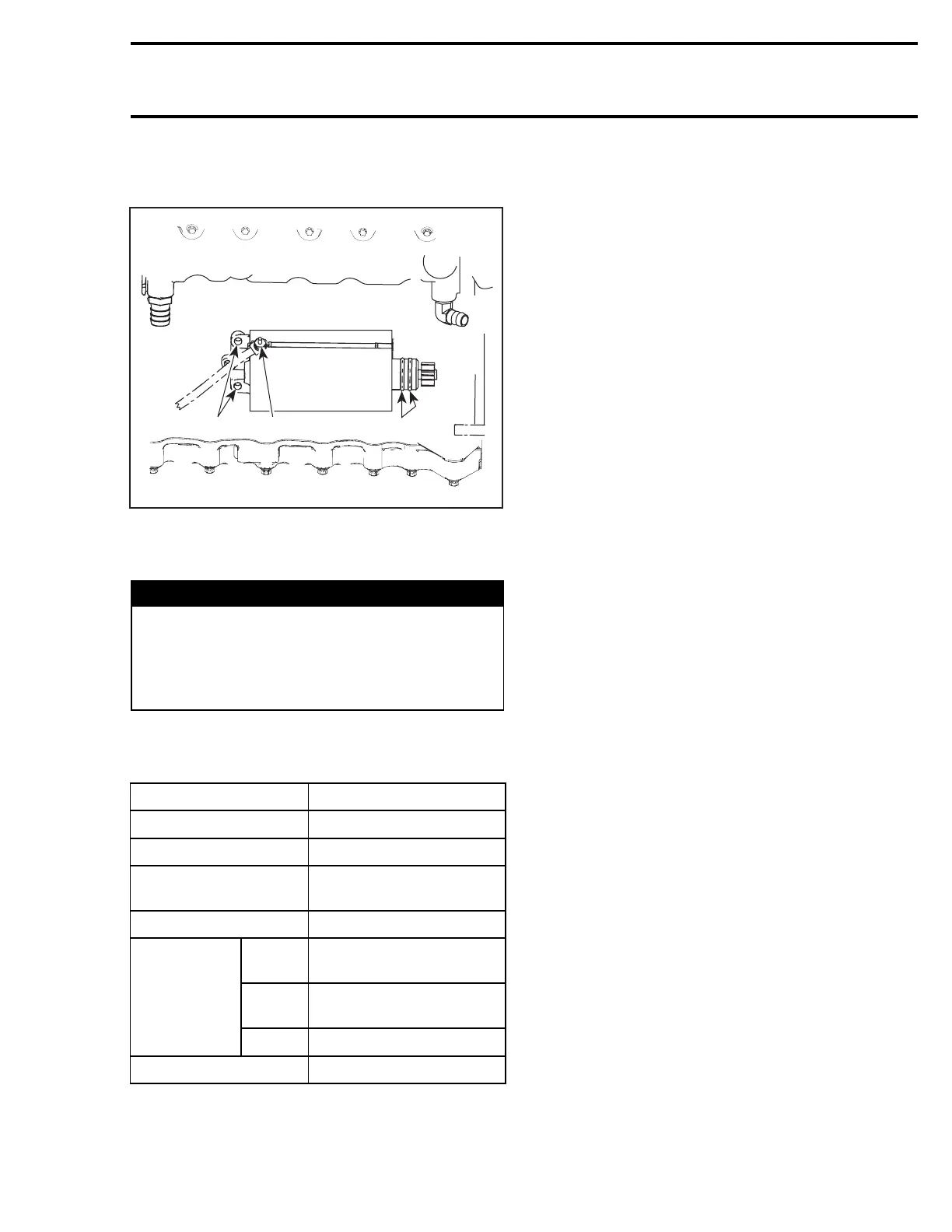

Section 06 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)
Ensure to slide protector over nut to hide metallic
parts.
3
2
1
F18H0UB
1. Grease on O-rings.
2. Torque nut to 7 N•m(62lbf•
in) and apply dielectric
grease and install protection cover
3. 10 N•m(89lbf•
in)
WARNING
Always connect RED positive cable first then
BLACK negative cable last. Whenever con-
necting the RED positive cable to the starter
motor make sure the battery cables are dis-
connected to prevent electric shock.
STARTER SPECIFICATION
Nominal output 0.9 kW
Voltage 12 V
Rated time 30 seconds
Rotation
Counterclockwise (viewed
from pinion side)
Weight 2.5 kg (5.39 lb)
No load 11.4 V 23 A max.
8600 RPM
Load 8.5 V 140 A max.
5200 RPM
Performance
specification
at 20°C(68°F)
Stall
3.75 V 330 A max. 0 RPM
Battery 12 V, 30 Ah
smr2005-017 171
