Sea-doo 2005 4-Tec models User Manual

Section07PROPULSION
Subsection 03 (REVERSE SYSTEM)
DISASSEMBLY
Reverse Gate
To remove reverse gate, refer to JET PUMP sec-
tion.
Reverse Cable

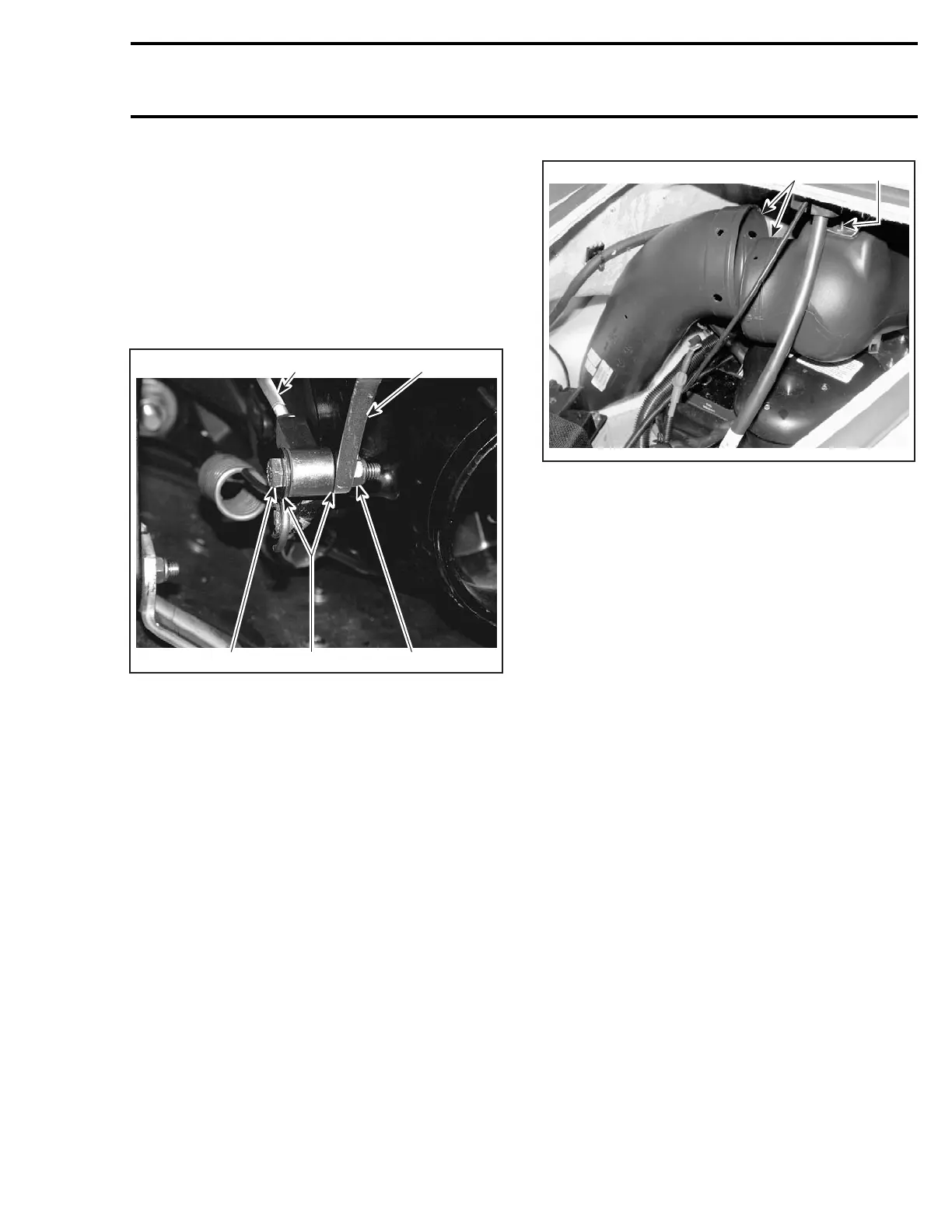

Unscrew bolt no. 1, washers and the elastic stop
nut retaining reverse cable no. 2 on pivot arm.
3
F18J1HA
1 2
54
1. Reverse cable
2. Pivot arm
3. Bolt
4. Washer
5. Elastic stop nut
Unscrew the cable lock no. 11 then remove the
half rings no. 12.
RXP Models
Open storage compartment and remove basket.
Remove nut of front vent tube, unsnap wiring har-
ness and separate vent tube.
2
F19J04A
1
1. Remove nut
2. Separate bottom and top parts
Pull out bottom part first then top part.
All Other Models
Remove the seat and the glove box. Refer to
HULL/BODY.
Push the vent tube toward the front of the vehicle
to get greater access to the interior lever and the
reverse cable support.
To release the vent tube, press down its locking
tabs and move the tube.
There are two locking tubes; one above and one
underneath the hose.
DO NOT REMOVE the vent tube completely.
smr2005-021 217
