Section05FUELSYSTEM
Subsection 01 (FUEL TANK AND FUEL PUMP)
F18R09A
CAUTION: While pulling out the fuel pump, pay
attention to fuel sensor float arm. Float arm
can get stuck and bend which can reduce the
fuel sensor capabilities.

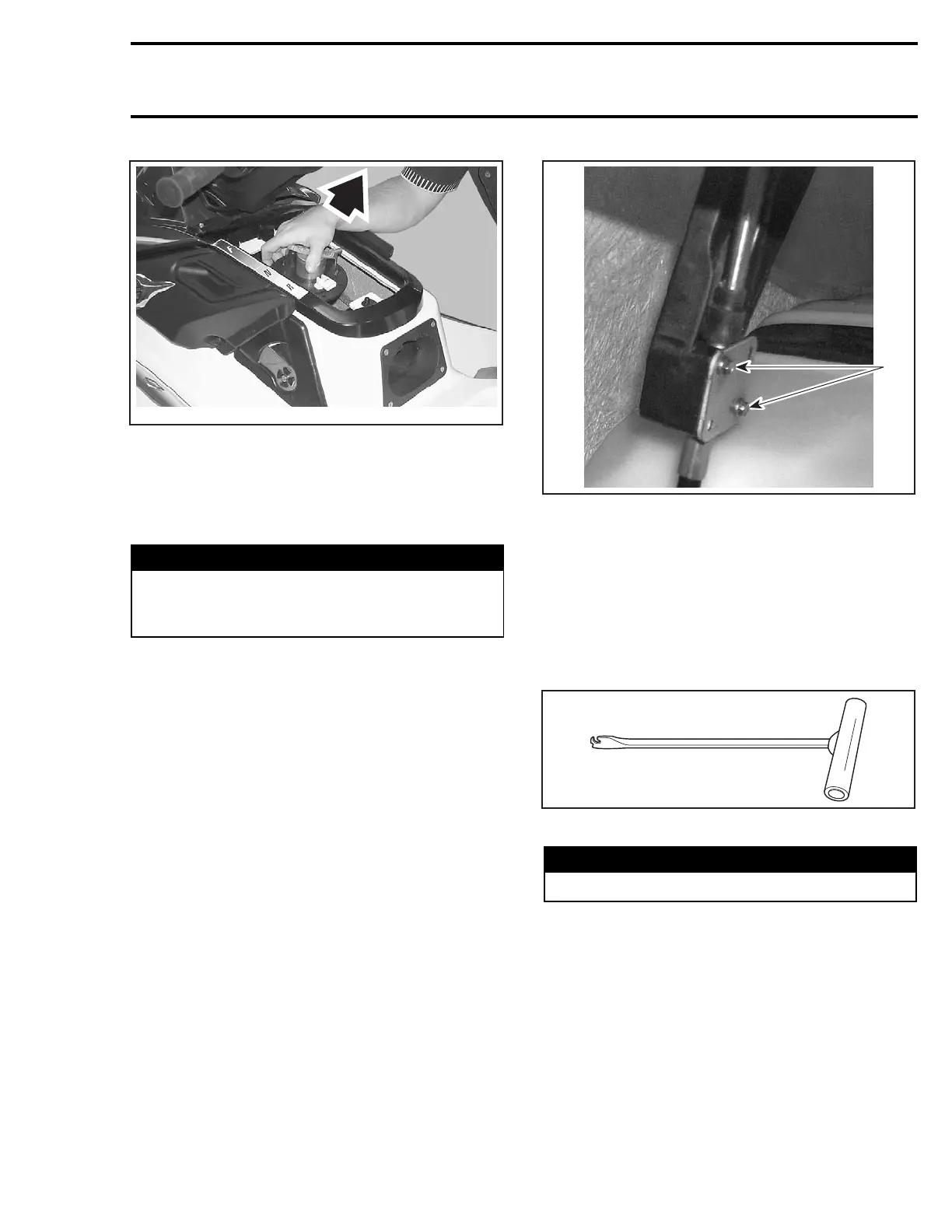

Pull fuel pump out from glove box opening.
WARNING
Always wipe off any fuel spillage from the wa-
tercraft. While dealing with fuel or fuel sys-
tem always work in well ventilated area.
Fuel Tank
The engine removal is necessary to remove fuel
tank.
Siphon fuel tank.
Disconnect MPEM connectors.
Detach MPEM assembly and support from bilge.
Remove TOPS switch from electrical harness or
MPEM bracket.
Remove air box. Refer to AIR INTAKE SYSTEM
subsection.
From storage compartment disconnect fuel pump
connections.
Remove fuel pump no. 5 from fuel tank no. 6.
RefertoFUELPUMP.
Detach reverse system support.
1
F18F0BA
1. Screws
Remove battery. Refer to CHARGING SYSTEM
subsection.
Disconnect fuel tank connections.
Cut locking ties as required to release wiring har-
ness.
Detach straps no. 13 with hook tool (P/N 529 035
989).
529 035 989
Remove fuel tank from the vehicle.
WARNING
Check that fiberglass is not exposed.
INSPECTION
Fuel Filter
Check if particles are present in fuel filter. If so,
replace it.
Fuel Filler Hose
Verify fuel filler hose no. 15 for damage. Always
ensure that clamps no. 16 are well positioned and
tightened. Torque clamps to 4 N•m(35lbf•in).
smr2005-014 137
