Sea-doo 2005 4-Tec models User Manual

Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

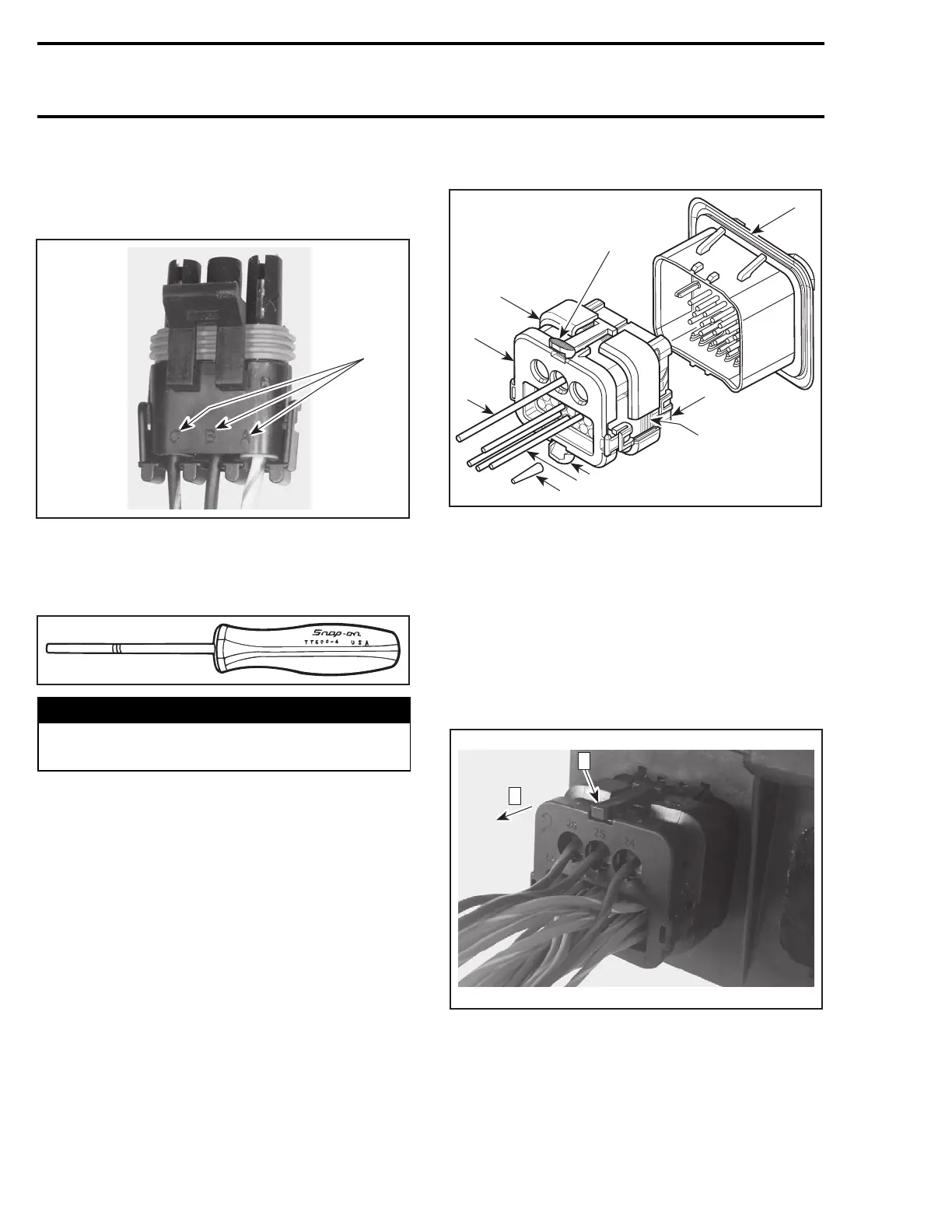

PACKARD CONNECTOR
Packard connectors are used to connect electrical
harnesses and gauges.
F04H45A
1
A
BC
VIEW OF A 3-PIN PACKARD CONNECTOR
1. Identification letters
To remove terminal from Packard connector, use
Snap-on TT600-4 tool.
F01B1JA

WARNING
Ensure all terminals are properly crimped on
wires and connector are properly fastened.
AMP CONNECTOR
These connectors are found on the MPEM.
When servicing electrical system, special care
must be taken when working with AMP connec-
tors in order to prevent any malfunction of the
system.
Description
F00H0WB
2
3
4
5
6
7
8
9
9
1
AMP CONNECTOR
1. Male connector
2. Cover assembly
3. Mating seal
4. Wedge lock
5. MPEM connector
6. Seal plug
7. Power wire
8. Signal wire
9. Locking tab
Removal
To remove the male connector from the MPEM,
press both tabs and pull connector.
F00H0NA
1
2
Step 1: Press tabs (both sides)
Step 2: Pull male connector
Installation
Do not apply any product to the pins of the con-
nectors on the MPEM.
298 smr2005-026
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
