Section 03 ENGINE SYSTEM
Subsection 01 (AIR INTAKE SYSTEM)
INSPECTION
Check for water in air silencer no. 1. If so, replace
check valves no. 2. Check collar tightness. En-
sure there is no water trapped in tube no. 3 (if so
equipped).
Inspect silencer, tube and hose condition. Re-
place any damaged part.

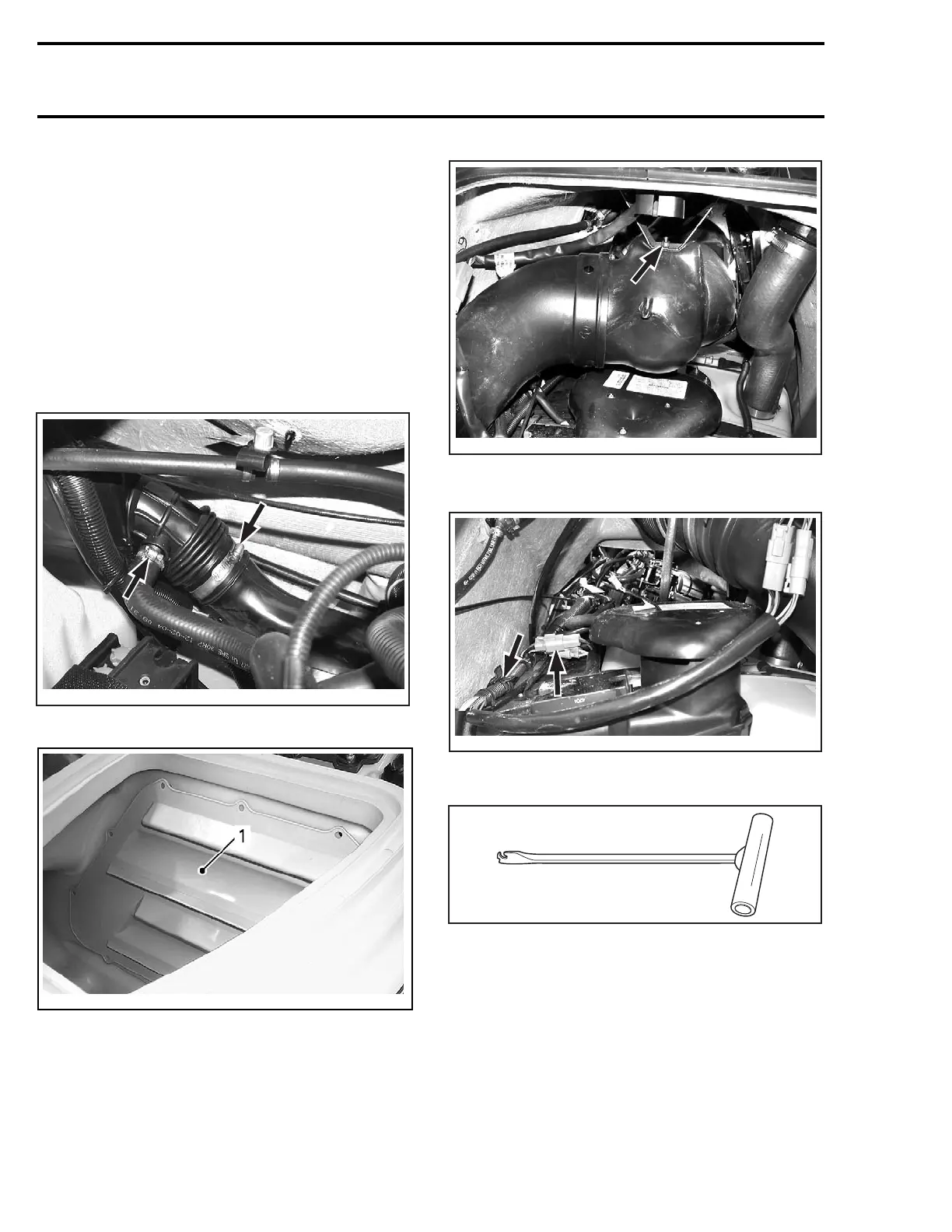

REMOVAL
From storage compartment, remove/disconnect:
– hose no. 4.
F18D32A
– front access door (if so equipped)
smr2005-029-007_a
1. Access door
– front vent tube (RXP only)
F18D33A
– rectifier/voltage regulator
– wiring harness from air silencer
F18D34A
– fuel tank straps (refer to FUEL SYSTEM) using
hook tool (P/N 529 035 989).
529 035 989
Pull air silencer out.
4-TEC Supercharged and Supercharged
Intercooled Engines
From engine compartment, remove/disconnect:
– vent tube
30 smr2005-029
