Section 03 ENGINE SYSTEM
Subsection 01 (AIR INTAKE SYSTEM)
F18E0PA
1

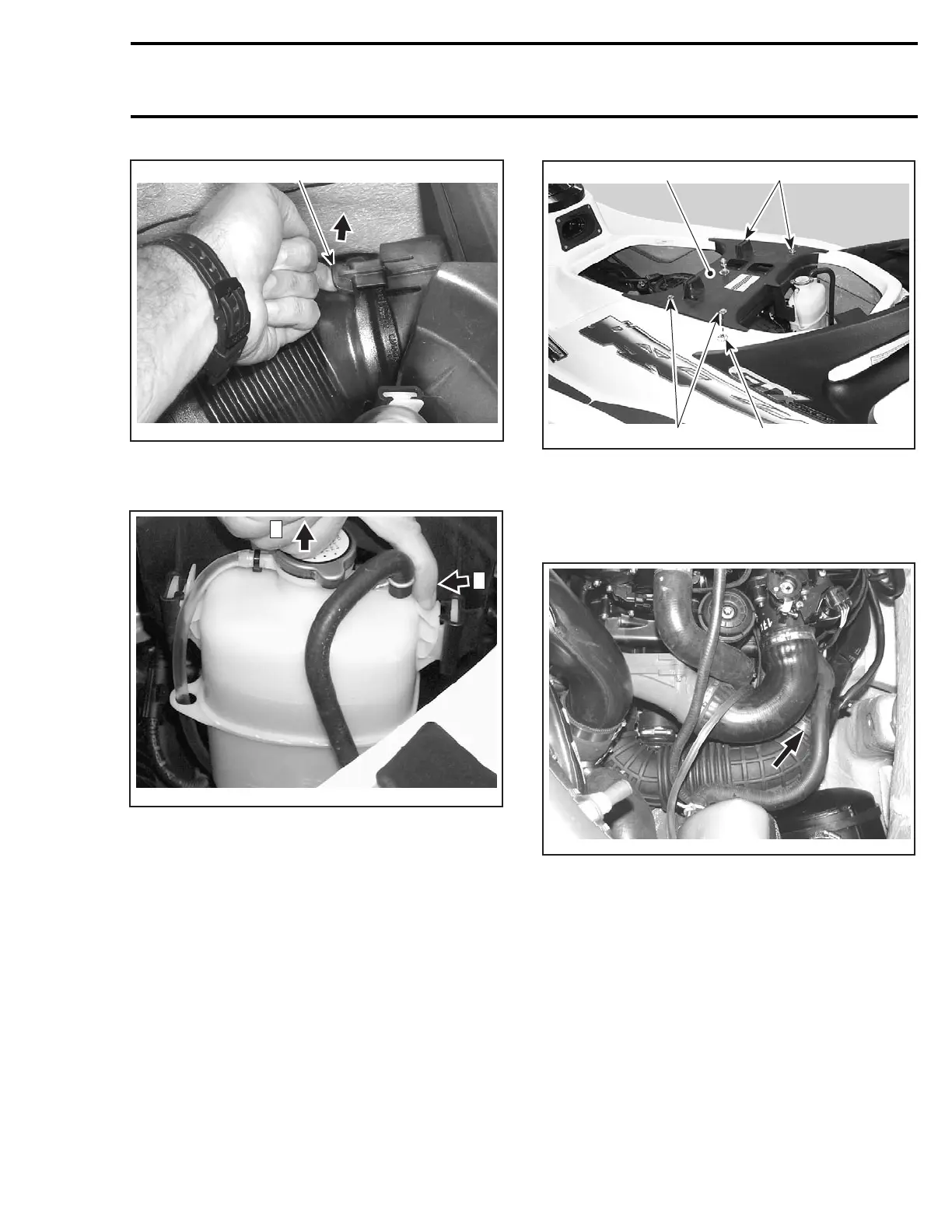

1. Lift lock tab
– coolant expansion tank
2
F18E1MA
1
Step 1: Push tab (each side) to release
Step 2: Pull tank out
– vent tube support
2
1
F18L1GA
2
3
1. Vent tube support
2. Remove retaining screws
3. Pay attention to nuts underneath
– tube from air intake hose
Pull tube out.
R1503motr224C
INSTALLATION
Reverse removal operation order and pay atten-
tion to the following.
Ensure that tubes are well secured with hoses and
there is a tight fit.
