Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
Installation
Reverse the removal procedure.

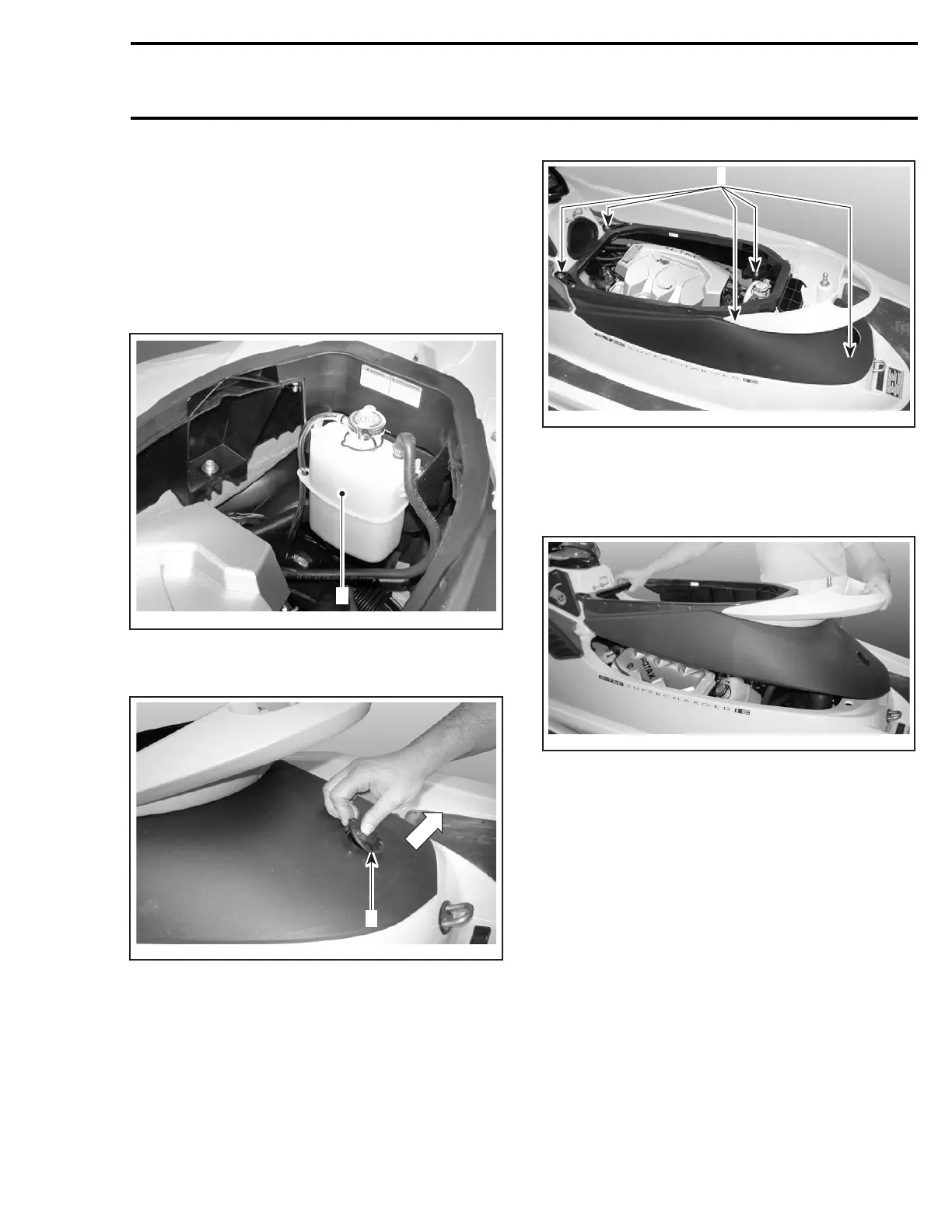

ENGINE COVER
RXP Models
Remove seat.
Detach coolant expansion tank and move away.
F19L1BA
1
1. Coolant expansion tank
Remove BRP logo at rear.
F19L1AA
1
1. Logo
Remove retaining screws.
1
F19L1CA
1. Retaining screws
NOTE: Pay attention not to drop retaining blocks
under cover when removing screws.
Pull out engine cover.
F19L1SA
Assembly is the opposite procedure of removal.
Ensure to tighten screws in a criss-cross order and
to torque to 18 N•m(159lbf•in).
SEAT ADJUSTMENT
Seat Retainer
GTX Series, Wake and RXT Models
NOTE: Apply Loctite 243 (blue) (P/N 293 800 060)
on threads of lock pin when the adjustment is re-
quired or when the lock pin is removed then rein-
stalled. The threads on new lock pin are coated
with a self-locking product, do not apply Loctite
243 on threads.
smr2005-024 263
