Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
F19L1KA
1
2

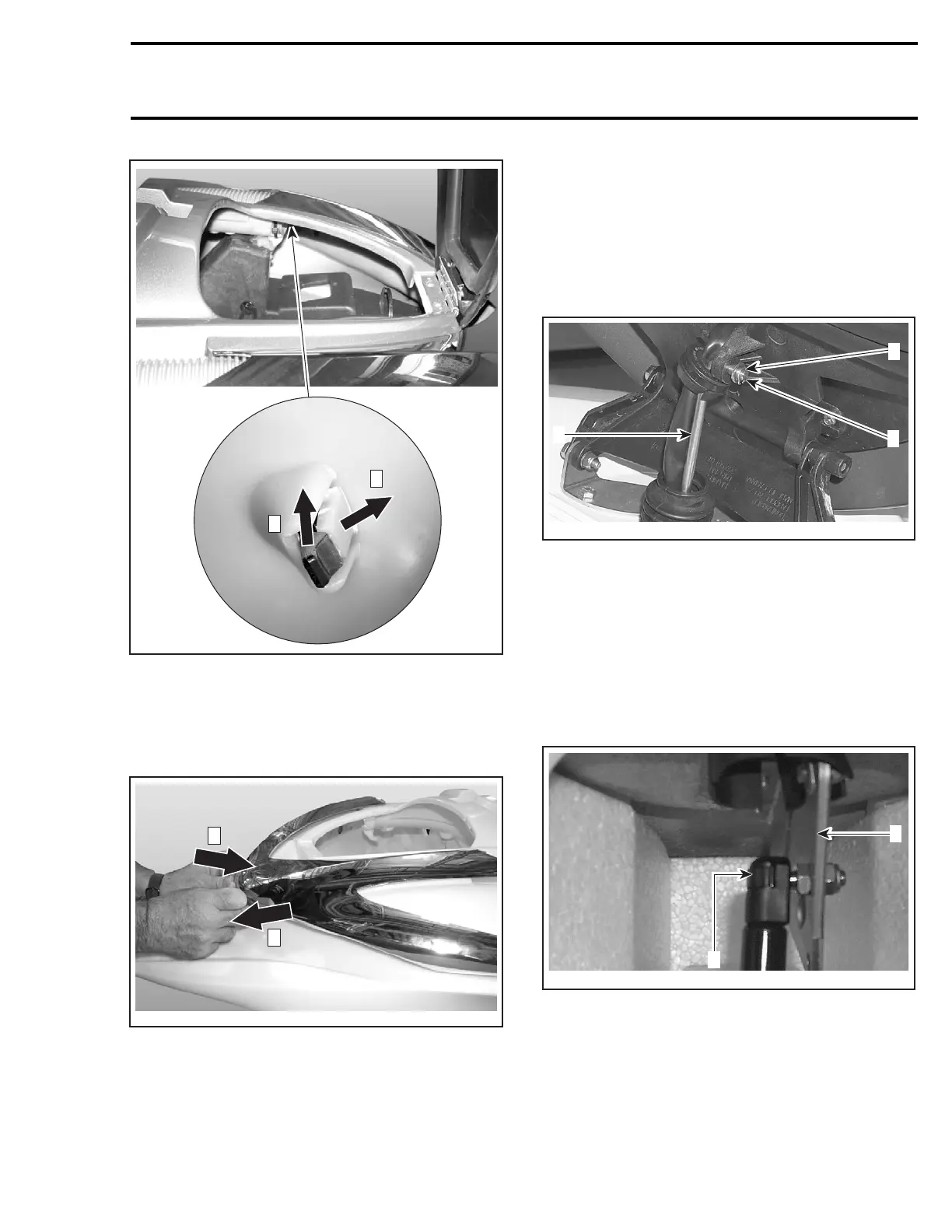

Step 1: Release the locking tab and HOLD
Step 2: Push tab upward
– Release front part of grill and remove it.
At installation, first install the front part of front
grill. Do not snap rear tabs yet.
F19L1NA
1
2
Step 1: Pull out the bottom edges by slightly twisting to hook up
Step 2: Push the top corner to snap in
Ensure to properly position and secure top tubes.
Snap the other tabs of front grill.
Install screws to retain front grill.
Reinstall inner shell.
STORAGE COVER SHOCK
To remove storage cover shock proceed as fol-
lows:
– Unlock shock rod from circlip and remove wash-
er.
F18L1NA
1
3
2
1. Shock rod
2. Circlip
3. Washer
Install a 2 x 4 piece of wood between storage cov-
er and body. This piece of wood will support the
storage cover while changing the cover shock.
– Release the shock from top linkage bracket
and bottom support bracket by inserting a flat
screwdriver in the shock top and bottom lock-
ing devices.
F18L1YA
1
2
1. Top linkage bracket
2. Shock top locking device
smr2005-024 269
