Sea-doo 2005 4-Tec models User Manual

Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

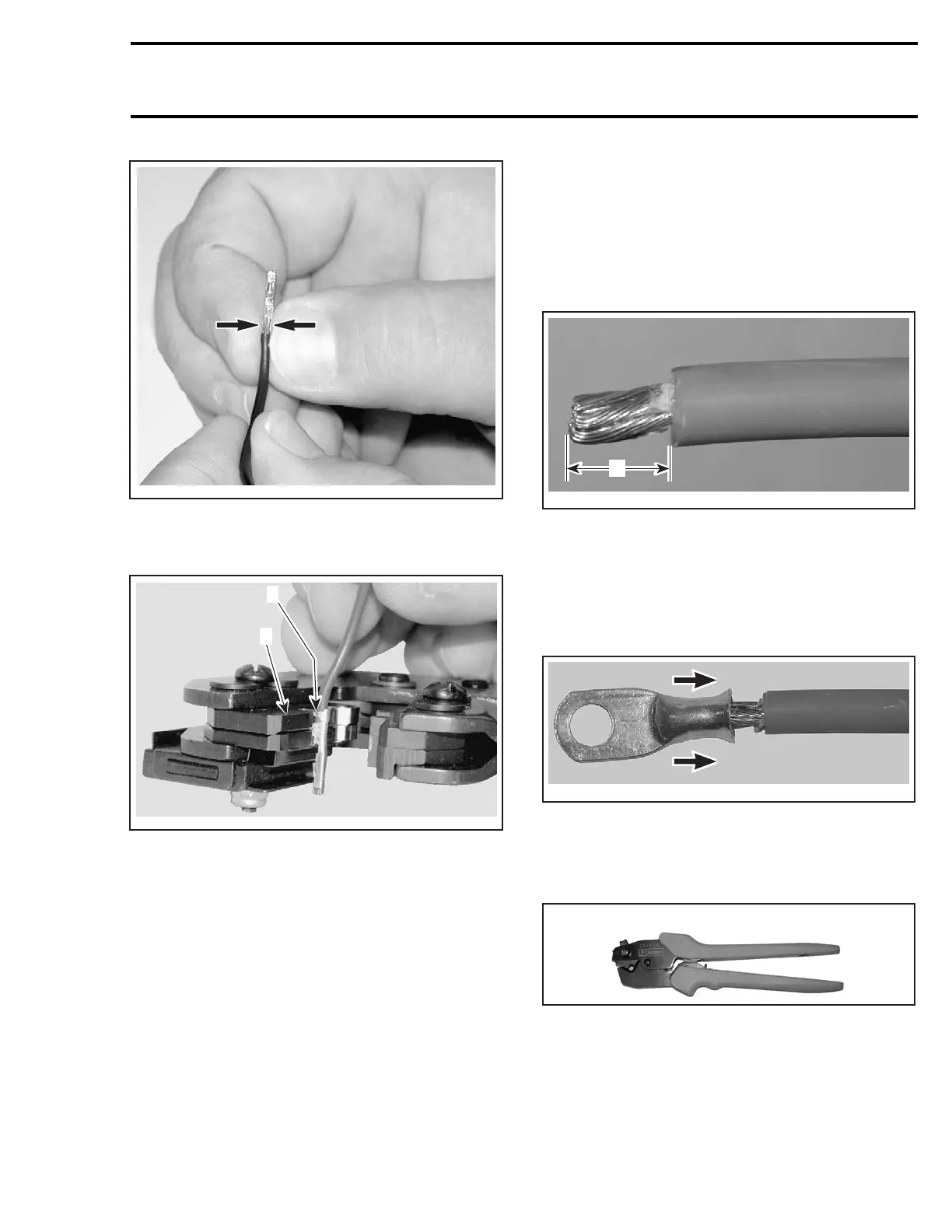

A32E3YA
Insert terminal with wire in crimping pliers and po-
sition so that top of terminal tabs are flush with
pliers edge or a little bit lower as shown.
A32E3ZA
1
2
1. Top of terminal tabs
2. Aligntabswithpliersedge
Crimp terminal. Ensure no tiny wire goes out of
terminal. This might cause strange problems of
the electrical system.
Lubrication
Do not apply any product to the pins of the con-
nector on the ECM.
BATTERY AND STARTER CABLE
TERMINALS
Crimping
Carefully strip the wire approximately to 10 mm
(3/8 in) in length, using a wire stripping tool or
sharp blade/knife.
A32E2QA
A
A. 10 mm (3/8 in)
NOTE: Make sure not to cut wire strands while
stripping the wire.
Install the appropriate terminal on the wire accord-
ing to the requirement. Refer to appropriate parts
catalog.
A32E2RA
INSTALLATION OF TERMINAL
Follow the instructions provided with the crimping
pliers (P/N 529 035 730) to select the proper posi-
tion of the tool.
529 035 730
NOTE: Different wires require different crimping
pliers settings, so make sure to follow the instruc-
tion supplied with the tool.
smr2005-026 305
