Section 06 ELECTRICAL SYSTEM
Subsection 02 (CHARGING SYSTEM)
NOTE: If it is continually necessary to add distilled
water to the battery, this indicates an over voltage
situation, requiring replacement of the rectifier/
regulator. If the battery will not stay charged,
the problem can be any of the charging system
components. If these all check good, try a new
rectifier/regulator.

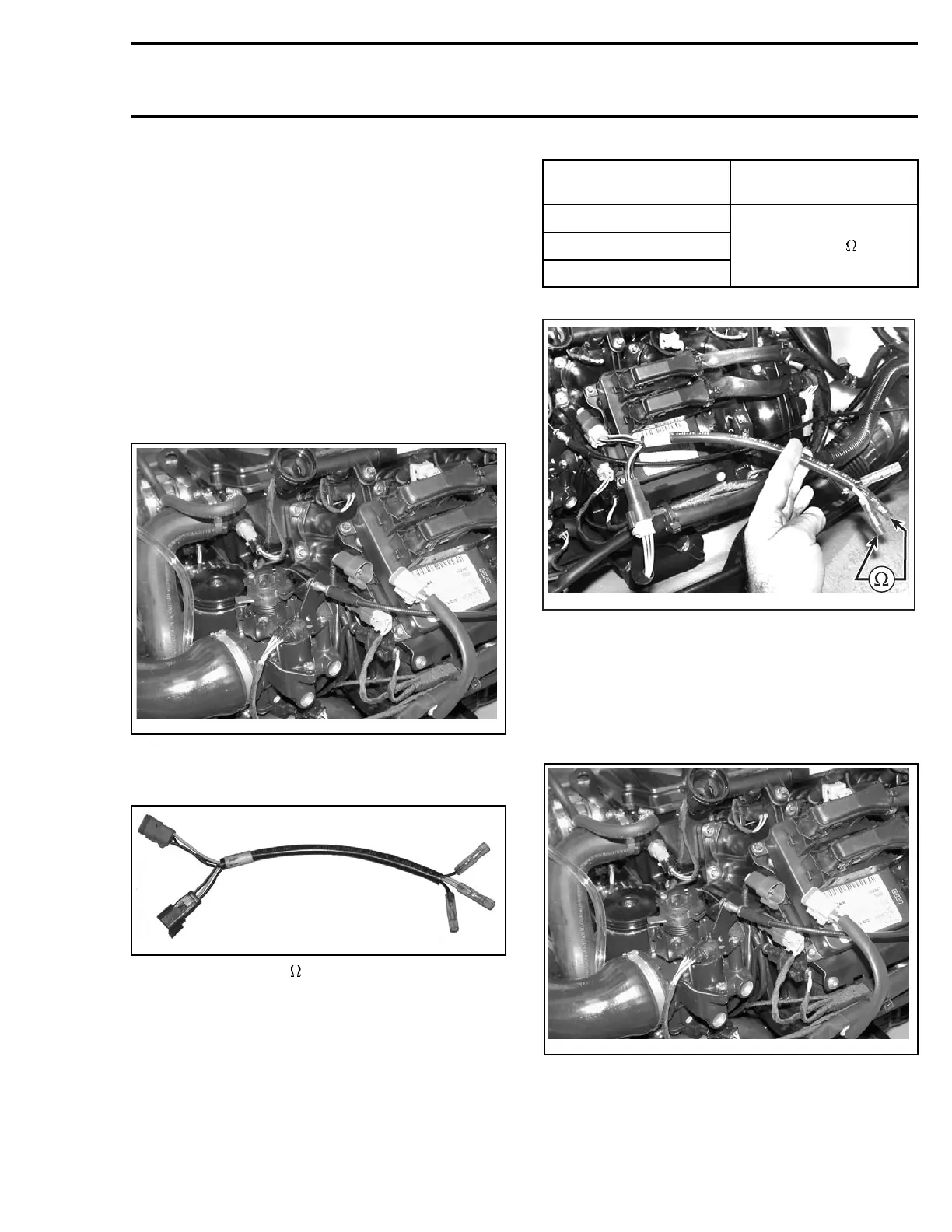

STATOR
Continuity Test
Proceed as follows:
– Disconnect the magneto wiring harness con-
nector.
smr05-016-008
– Install the 3-pin magneto harness adapter
(P/N 529 036 016) between unplugged connec-
tors.
529036016
– Set multimeter to .
– Connect multimeter between YELLOW wires.
TERMINAL
RESISTANCE @
20°C(69°F)
1and2
1and3
2and3
0.1 - 1
– Read resistance.
F18H1UB
– If any result is out of specification, replace sta-
tor.
– Replug connectors properly.
Insulation Test
– Disconnect the magneto wiring harness con-
nector.
smr05-016-008
– Install the 3-pin magneto harness adapter
(P/N 529 036 016) to the magneto wiring har-
ness.
smr2005-016 155
www.SeaDooManuals.net
