Sea-doo 2005 4-Tec models User Manual

Section06ELECTRICALSYSTEM
Subsection 02 (CHARGING SYSTEM)

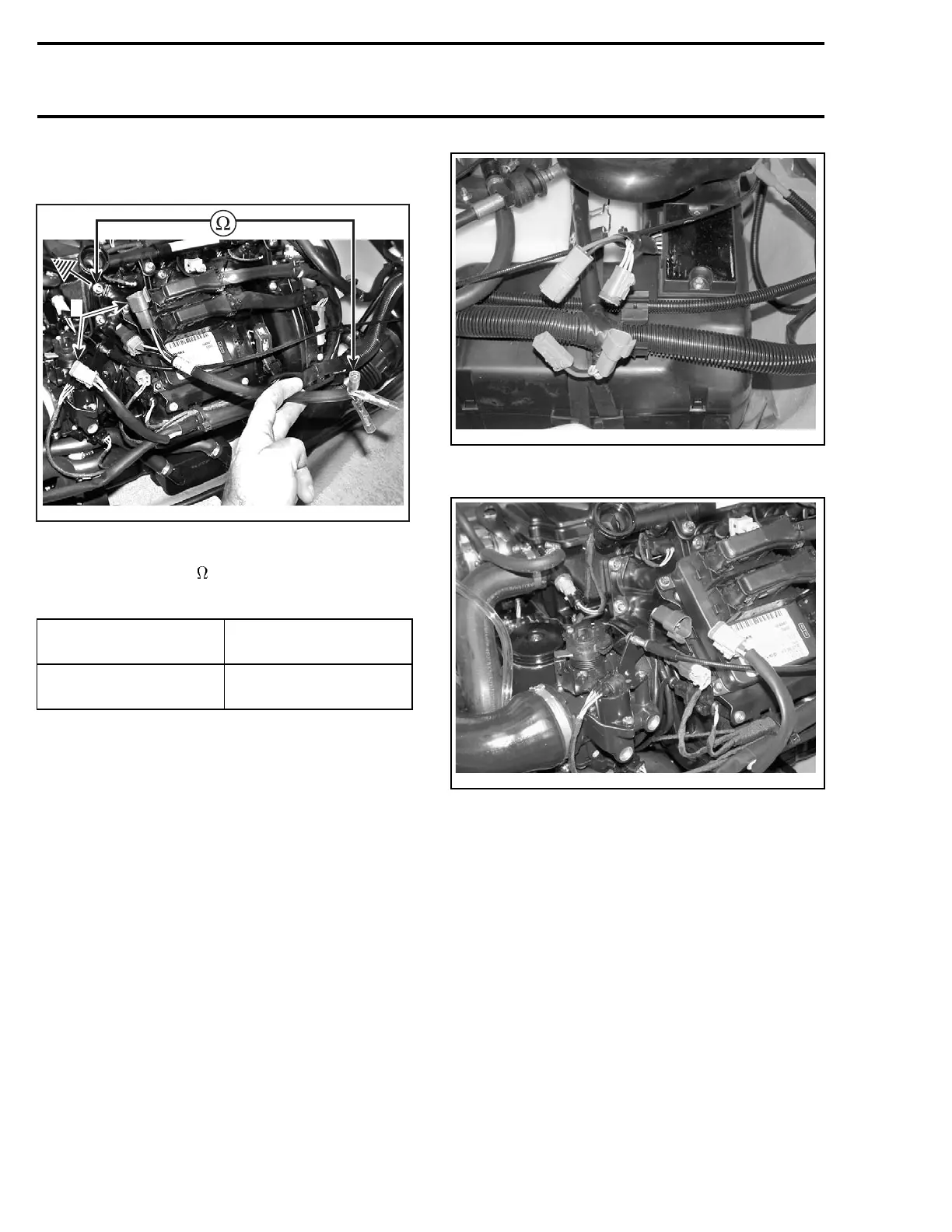

IMPORTANT: Leave wiring harness side discon-
nected.
F18H1QA
1
1. Do not plug these connectors
– Set multimeter to .
– Connect multimeter between YELLOW wires.
TERMINAL
RESISTANCE @
20°C(69°F)
Any YELLOW wire and
engine ground
Infinity (open circuit)
– Read resistance.
– If there is a resistance or continuity, the stator
coils and/or the wiring is grounded and needs
to be repaired or replaced.
– Replug connectors properly.
AC Voltage Test
– Disconnect the voltage regulator/rectifier con-
nectors.
smr05-016-007
– Disconnect the magneto wiring harness con-
nector.
smr05-016-008
– Install the 3-pin magneto harness adapter
(P/N 529 036 016) between unplugged connec-
tors.
156 smr2005-016
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
