Section 08 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
DISASSEMBLY

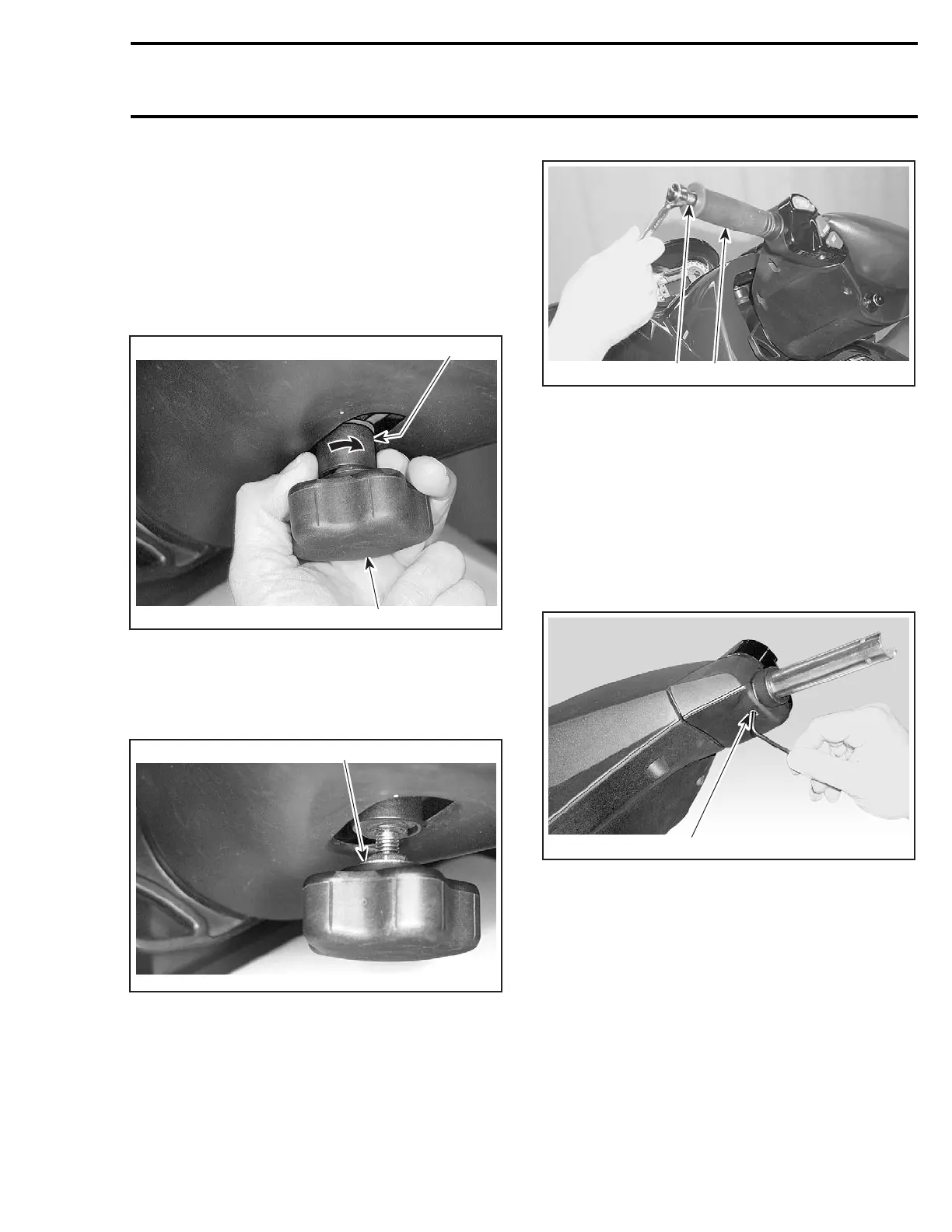

Adjustment Handle
GTX Supercharged Limited Models Only
Set handlebar to its lowest position by turning ad-
justment handle no. 1 counterclockwise.
While holding adjustment handle, turn support
bushing no. 2 clockwise.
2
1
F07K0MA
TYPICAL
1. Adjustment handle
2. Support bushing
Hold jam nut no. 3 and unscrew adjustment han-
dle from adjuster screw no. 4.
1
F07K0NA
TYPICAL
1. Loosen jam nut
Handle Grip and Grip Insert
To remove handle grip no. 5, pull out cap no. 6 and
remove screw no. 7.
1
F18K0AA
2
1. Handle grip
2. Remove screw
Pull out grip and remove grip insert no. 8 from
handlebar no. 9.
NOTE: Verify grip insert for damage.
Steering Cover
Remove grips no. 5.
Loosen screws no. 10 of throttle handle housing
no. 11 and of multifunction switch housing no. 12.
1
F18K0BA
1. Screw
Remove tapping screws no. 13.
smr2005-022 229
www.SeaDooManuals.net
