Section 08 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)
2

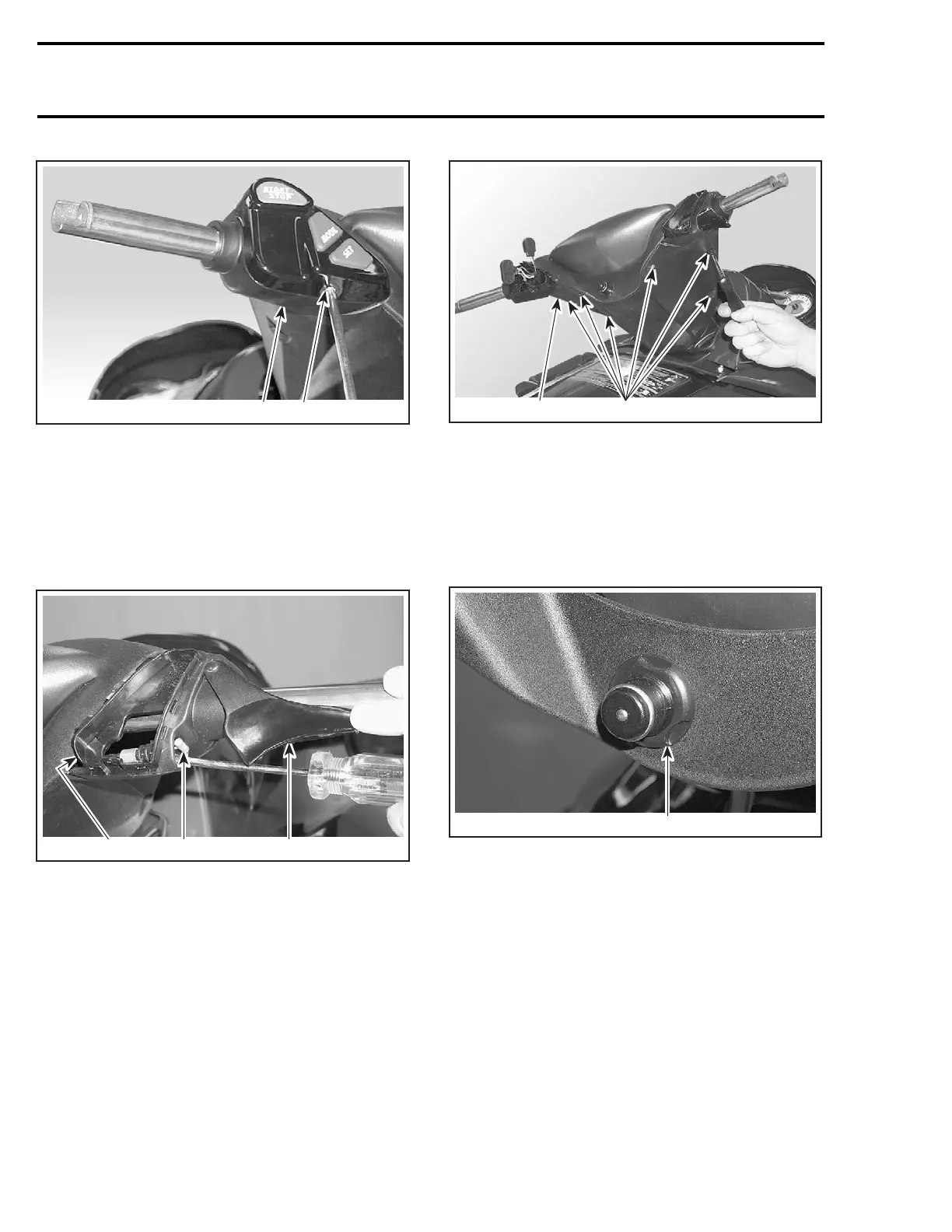

F18K0CA
1
1. Tapping screw
2. Multifunction switch housing
Remove covers no. 14 and no. 15 then the throttle
handle housing no. 11.
Unhook throttle cable from throttle handle.
Pry out the throttle cable housing from throttle
handle housing no. 11.
2
F18K0DA
13
1. Throttle cable
2. Throttle handle housing
3. Throttle handle
Unplug and remove the multifunction switch
housing no. 12.
Remove 6 screws no. 16 and flat washers no. 17
each side of cover.
1
F18K0EA
2
1. Steering cover
2. Screws
On GTX Supercharged Limited models,un-
screw the adjustment handle no. 1.
Remove lower steering cover no. 18.
Unscrew DESS switch nut using safety lanyard
switch tool (P/N 529 035 943).
1
F18K0FA
1. DESS switch nut
Remove upper steering cover no. 19.
Steering Padding
Remove steering cover as mentioned above.
Remove 2 screws no. 20, flat washers no. 21 and
nuts no. 22.
230 smr2005-022
