Section06ELECTRICALSYSTEM
Subsection 03 (STARTING SYSTEM)

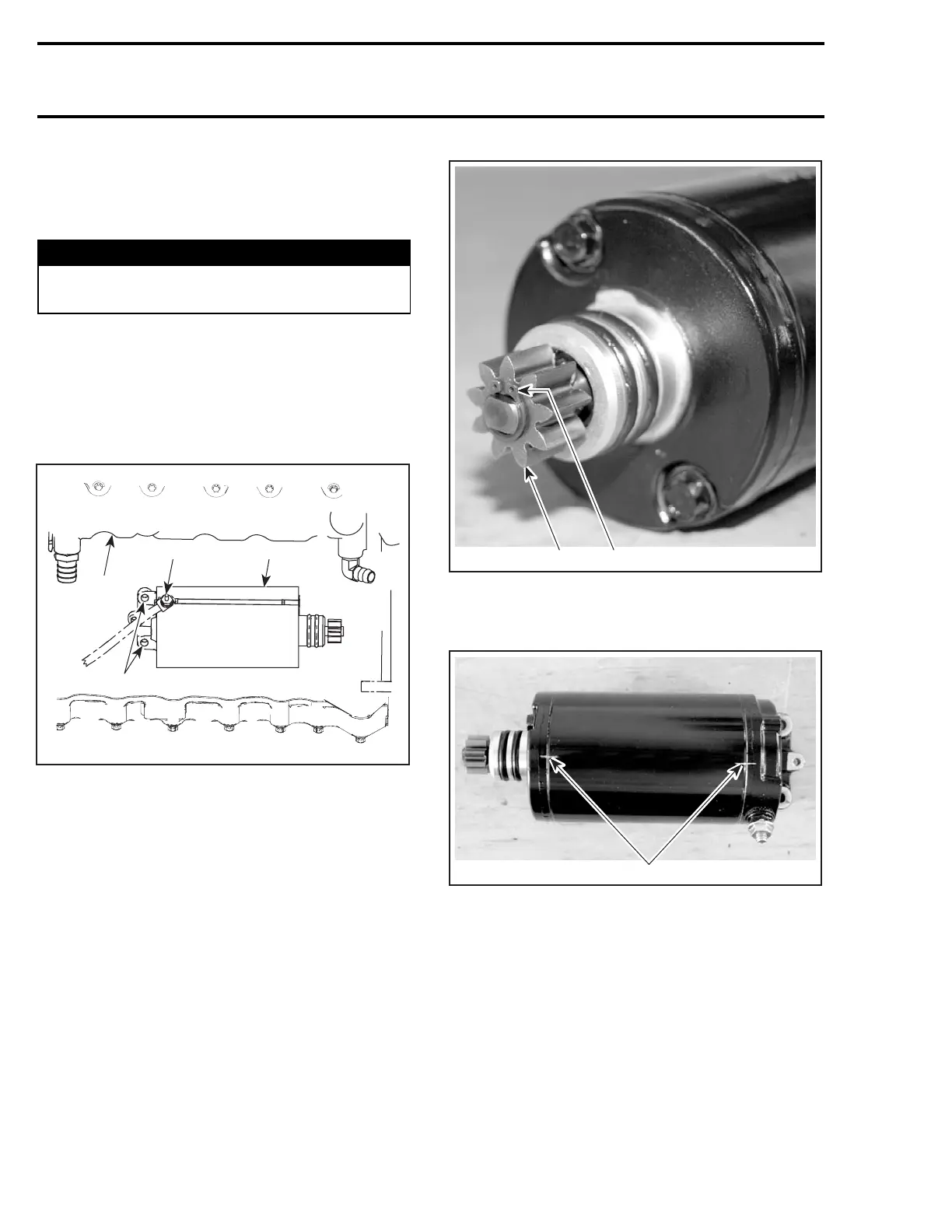

STARTER REMOVAL
Disconnect BLACK cable ground connection from
battery.

WARNING
Always disconnect ground cable first and re-
connect last.
Disconnect RED cable connection from battery.
NOTE: To facilitate starter removal on RXP mod-
els, remove engine cover. Refer to BODY section.
Remove retaining screws from starter.
Pull starter out. Lift starter enough to reach starter
cable then disconnect from starter.
1
F18H0UA
24
3
1. Exhaust manifold
2. Starter
3. Retaining screws
4. Nut
STARTER DISASSEMBLY
Remove bendix retaining circlip and starter bendix.
1
F18H0NA
2
1. Retaining circlip
2. Starter bendix
Locate index marks on yoke and end covers.
1
F18H0OA
1. Index marks
Loosen through bolts.
168 smr2005-017
