Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)
Installation
All Models except RXP
Ensure to position the longest threaded portion of
studs towards the jet pump. Apply Loctite 518
(P/N 293 800 038) against contact surface of studs
with jet pump support.
All Models

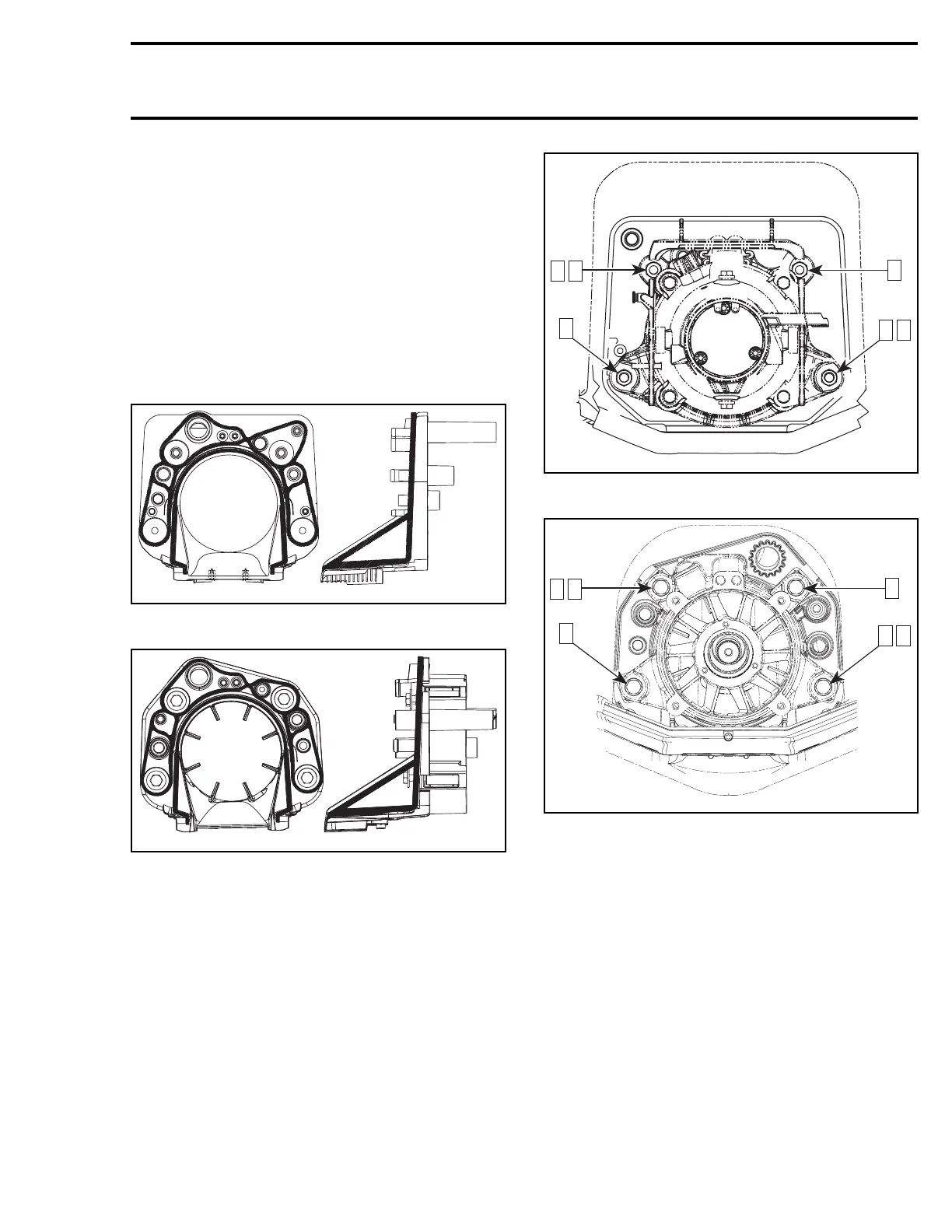

Apply Loctite 5900 (P/N 293 800 066) as indicated
by the shaded areas in the next illustrations. Fol-
low also the torquing sequence as shown in the
same illustrations. Torque to 31 N•m(23lbf•ft).
smr2005-024-010_a
GTX SERIES, WAKE AND RXT MODELS
smr2005-024-011_a
RXP MODELS
Torque jet pump support using the following se-
quence.
5 1
4
2 6
3
smr2005-024-012_a
GTXSERIES,WAKEANDRXTMODELS
5 1
4
2 6
3
smr2005-024-013_a
RXT MODELS
DRAIN PLUG INSTALLATION
Refer to the following illustration to install drain
plug.
smr2005-024 275
