Sea-doo 2005 4-Tec models User Manual

Section 09 HULL/BODY
Subsection 01 (ADJUSTMENT AND REPAIR)

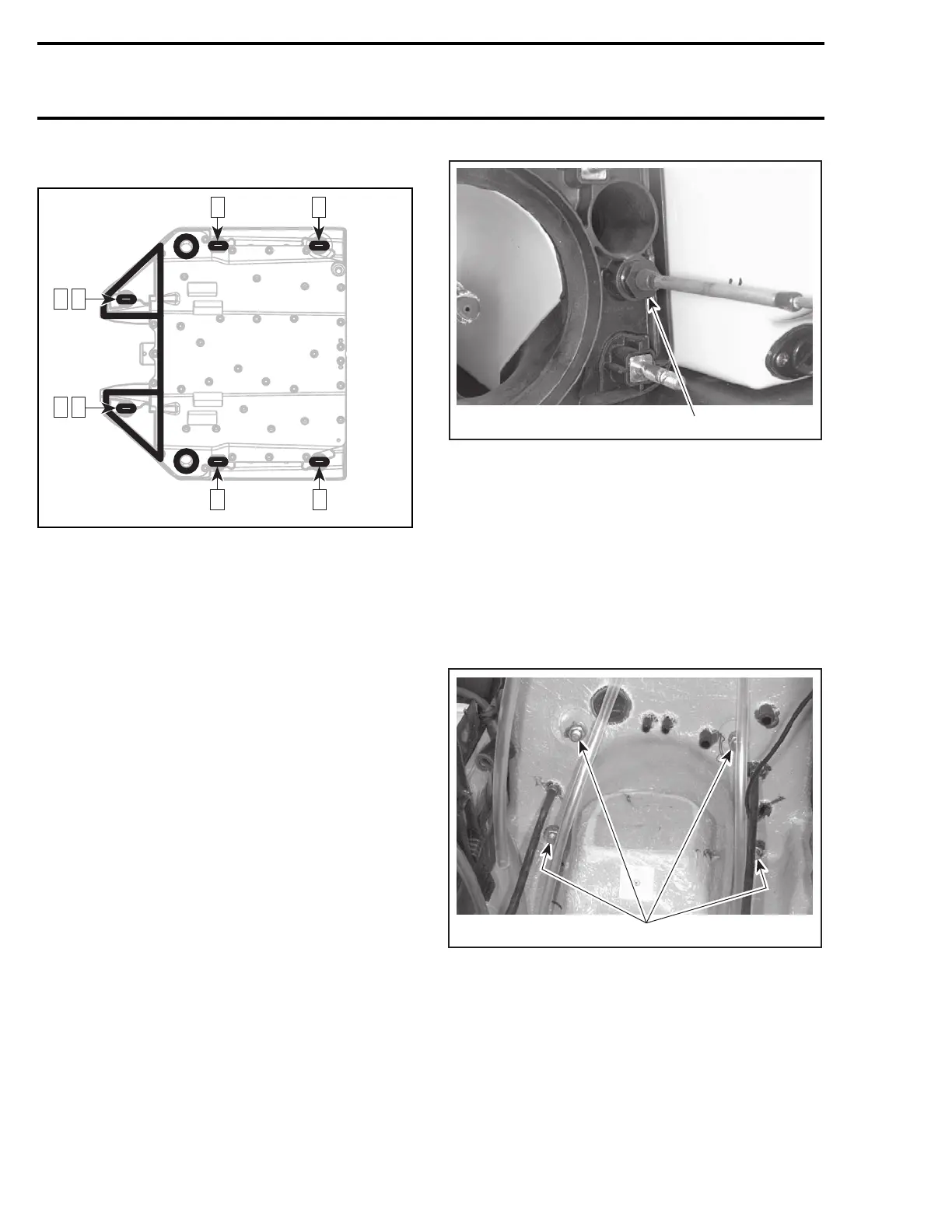

RXP Models
6 4
28
17
35
smr2005-024-009_a
Properly seal and reinstall hose fittings to ride
plate.
Apply Loctite 5900 (P/N 293 800 066) as indicated
by the shaded areas in the previous illustrations.
Follow also the torquing sequence as shown in
the same illustration. Torque screws to 26 N•m
(19 lbf•ft).
Reinstall hoses to ride plate and refill cooling sys-
tem. Refer to COOLING SYSTEM.
JETPUMPSUPPORT
Removal
Remove jet pump. Refer to JET PUMP.
Remove inlet grate and riding plate.
Remove ball joint, boot, nut, half rings and O-rings
from steering cable.
F05K02A
1
TYPICAL
1. Unscrew nut
Remove ball joint, boot, nut, half rings and O-rings
from reverse cable.
Remove boot and nut from VTS sliding shaft (RXP
models).
Disconnect water supply hose, water return hose
and bailer hoses.
Remove nuts, lock washers and flat washers re-
taining jet pump support.
F07L0AA
1
TYPICAL
1. Remove nuts
Using a heat gun, heat jet pump support until it is
possible to pull it.
NOTE: Shims may have been installed between
support and body. Do not remove these shims,
otherwise jet pump alignment will be altered.
274 smr2005-024
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
