Section 06 ELECTRICAL SYSTEM
Subsection 03 (STARTING SYSTEM)
1
F18H0PA

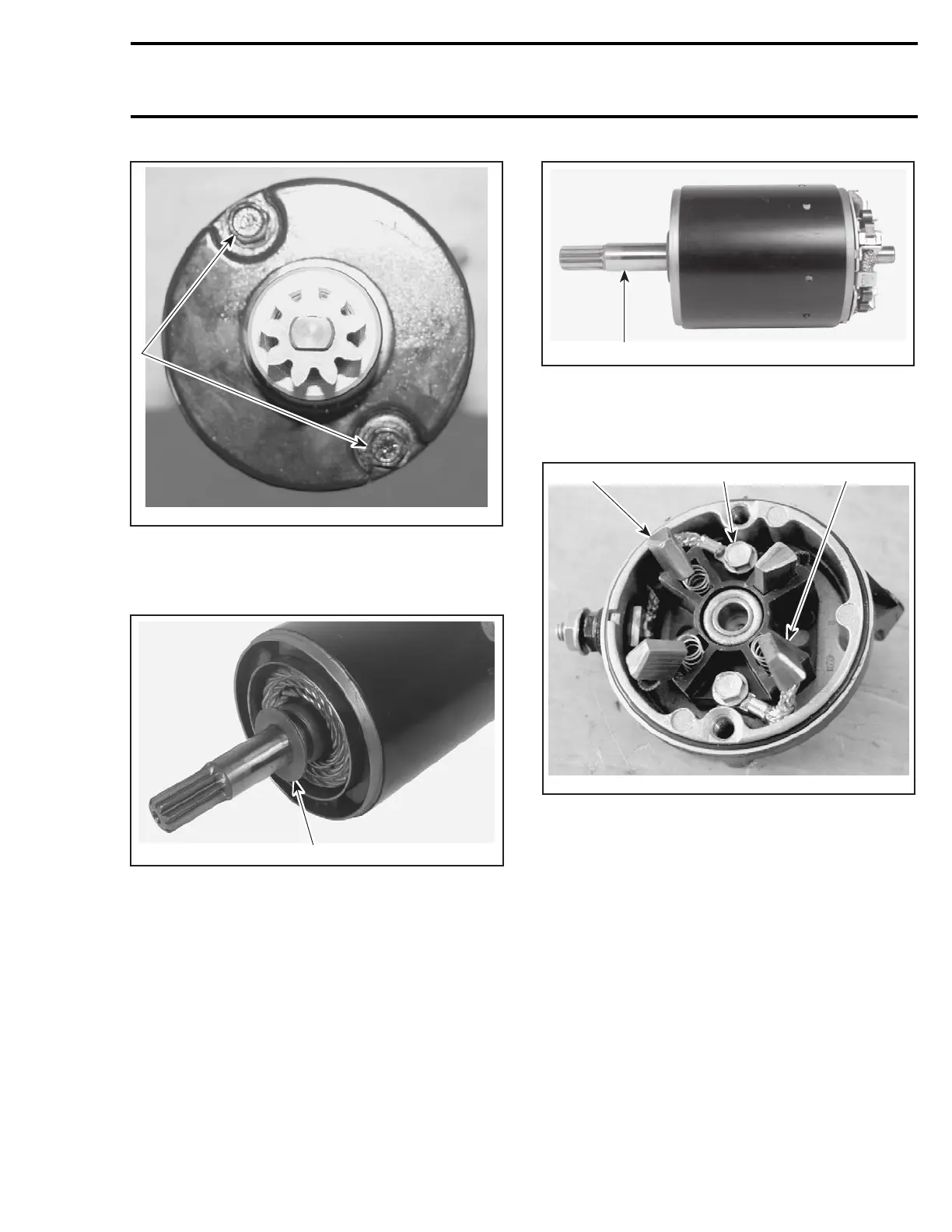

1. Through bolts
Remove end cover.
Remove thrust washer from armature shaft.
F06H1HA
1
TYPICAL
1. Thrust washers
Remove the other end cover with brushes and
brush holder assembly.
Remove armature.
F06H1JA
1
TYPICAL
1. Pull armature shaft
Remove brushes from brush holder by loosening
retaining screws.
1
F18H0QA
23
1. Brushes
2. Retaining screw
3. Brush holder
Remove springs.
STARTER CLEANING
CAUTION: Yoke ass'y and drive unit assembly
must not be immersed in cleaning solvent.
Discard all O-rings.
Clean brushes and holders with a clean cloth
soaked in solvent. Brushes must be dried thor-
oughly with a clean cloth.
Blow brush holders clean using compressed air.
