Sea-doo 2005 4-Tec models User Manual

Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)
2
A32E2SA
1

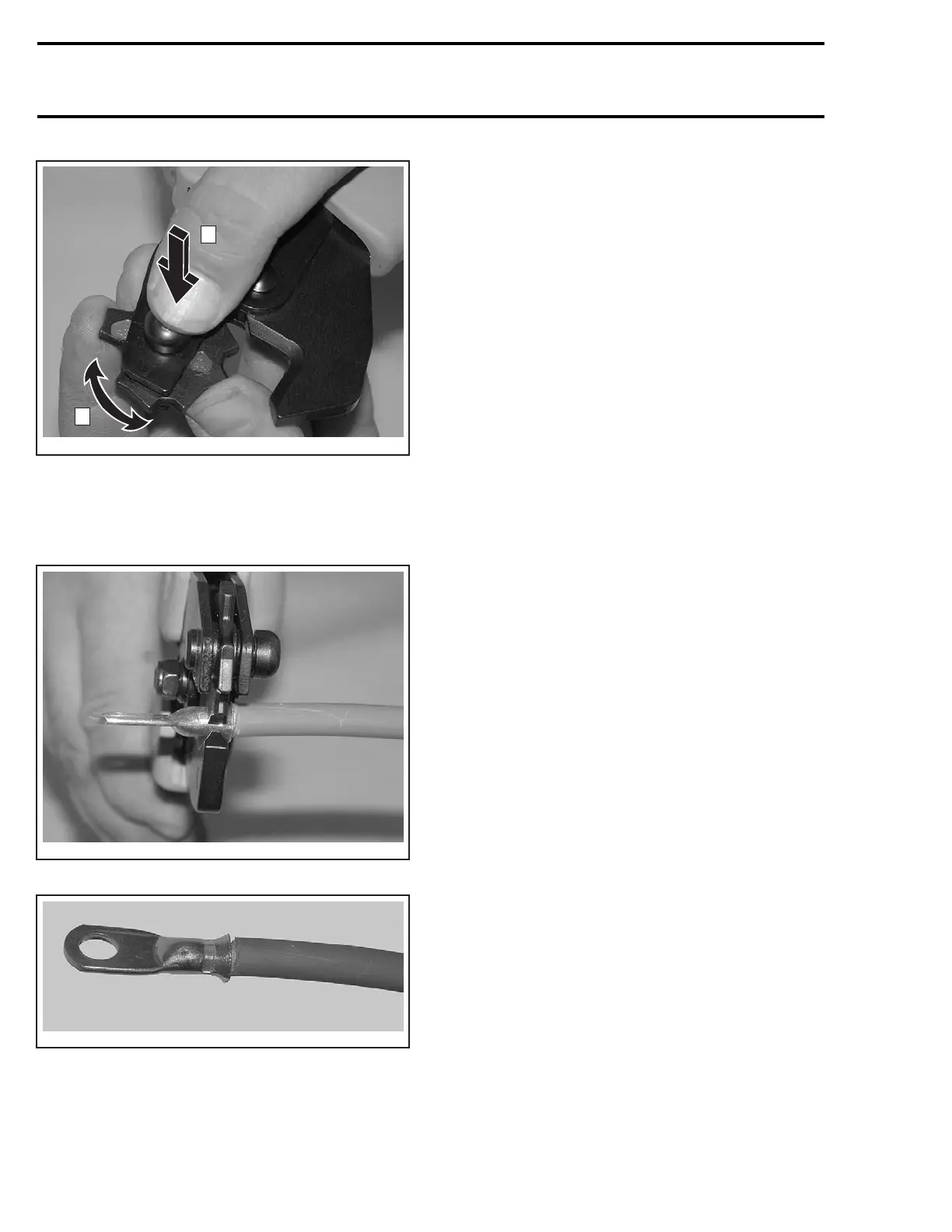

POSITIONING THE CRIMPING PLIERS
Step 1: Press
Step 2: Rotate
After positioning the crimping pliers, crimp the ter-
minal already installed on wire.
A32E2TA
CRIMPING OF WIRE
A32E2UA
PROPERLY CRIMPED WIRE
To verify, if the wire is properly crimped, apply
some pulling force on wire and the terminal at the
same time from both directions.
CAUTION: Never weld the wire to the terminal.
Welding can change the property of the wire
and it can become brittle and break.
Install the protective heat shrink rubber tube on
the terminal. Heat the heat shrink rubber tube us-
ing the heat gun so that it grasps the wire and the
terminal.
CAUTION: Make sure that the protective heat
shrink rubber tube has been properly installed
andnopartofwireisexposed.
306 smr2005-026
