Sea-doo 2005 4-Tec models User Manual

Section 11 ELECTRICAL CONNECTORS AND WIRING DIAGRAMS
Subsection 01 (ELECTRICAL CONNECTORS)

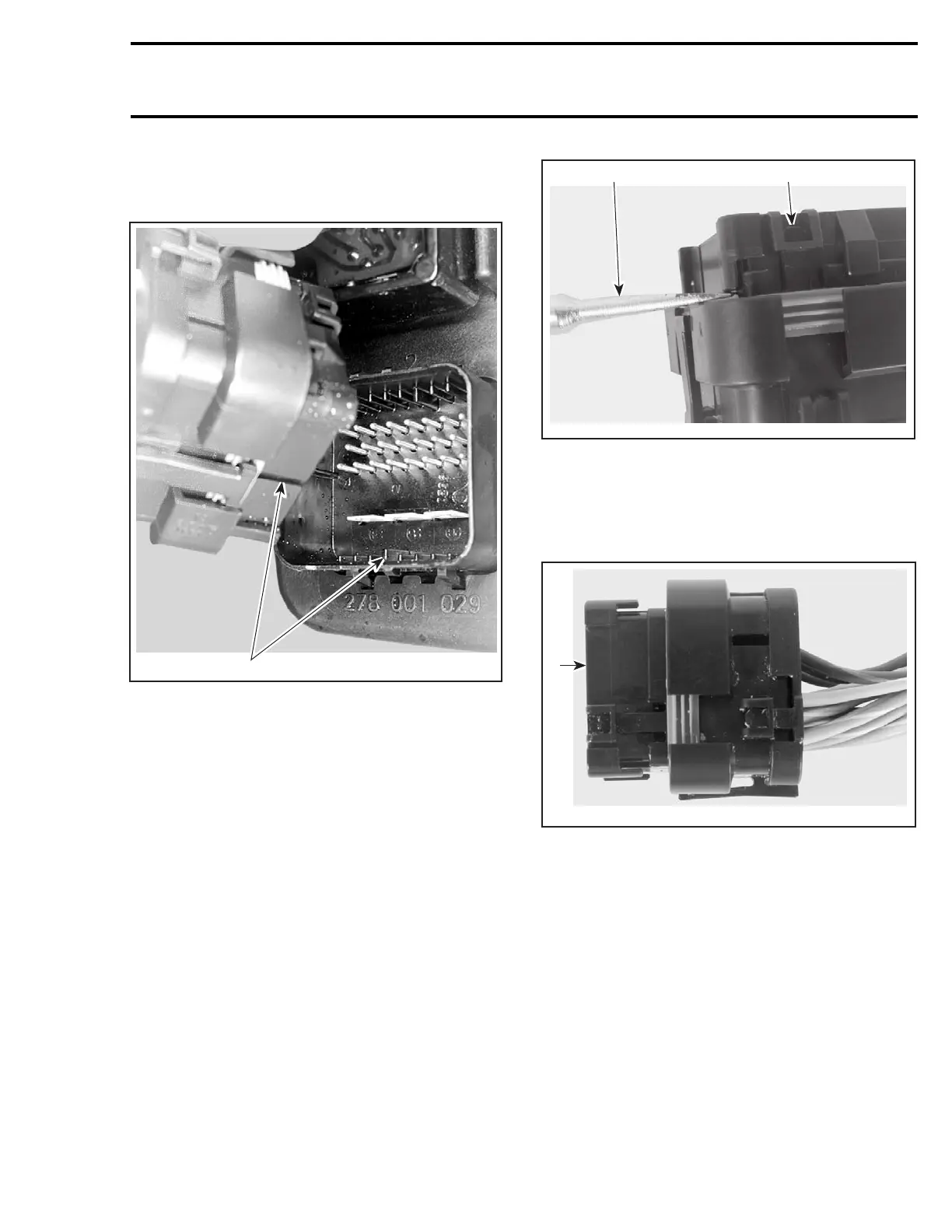

Each male connector is mechanically keyed to
mate only with identical mechanical keyed con-
nector on the MPEM.
F00H12A
1
1. Mechanically keyed
Terminal Removal
SIGNAL WIRE
Insert a screwdriver blade between the connector
and the wedge lock tab.
Release the locking tab and at the same time, pry
the wedge lock to the open position.
CAUTION: The wedge lock should never be re-
moved from the connector for insertion or re-
moval of the signal wire terminals.
F00H0OA
1 2
1. Screwdriver between wedge lock and connector
2. Locking tab
Repeat the same steps for the other locking tab
retaining the wedge lock.
The wedge lock is now in the open position.
F00H0PA
1
1. Wedge lock opened
While rotating the wire back and forth over a half
turn (1/4 turn in each direction), gently pull the wire
until the terminal is removed.
