Sea-doo 2005 4-Tec models User Manual

Section07PROPULSION
Subsection 01 (JET PUMP)

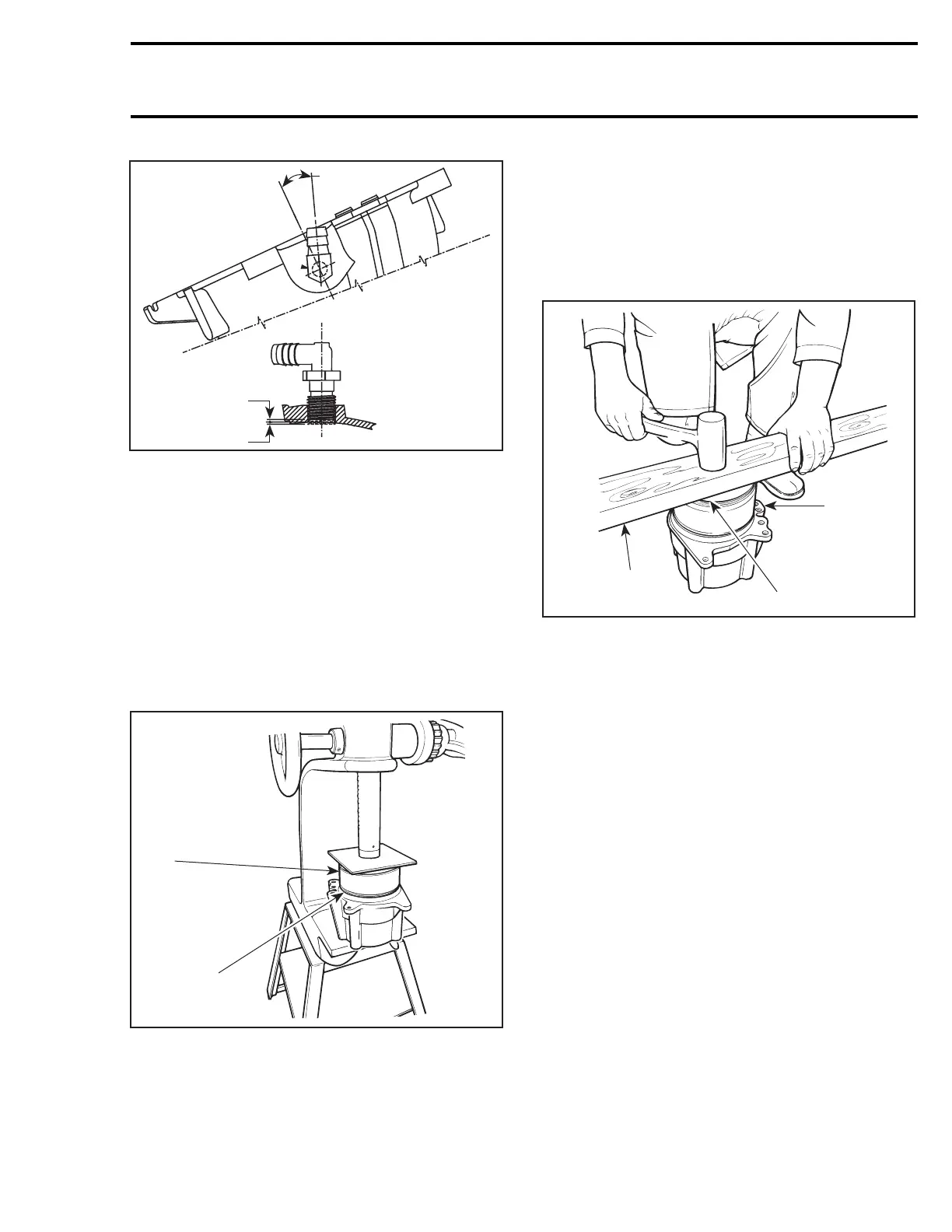

A
F18J0EA
B
C
A. 20°
B. 2.0 mm (.078 in)
C. 2.5 mm (.098 in)
Wear Ring
Position wear ring so that its rounded edge is out-
wards.
To install ring in housing, use a square steel plate
ofapproximately180x180mmx6mmthick(7x
7inx1/4in)andapress.
Manually engage ring in housing making sure it is
equally inserted all around. Press ring until it seats
into bottom of housing.
F01J1DA
1
2
1. Rounded edge
2. Press wear ring
If a press is not readily available, a piece of wood
such as a 2 x 4 in x 12 in long, can be used.
Manually engage ring in housing making sure it
is equally inserted all around. Place wood piece
over ring. Using a hammer, strike on wood to
push ring. Strike one side then rotate wood piece
about 90° and strike again. Frequently rotate
wood piece so that ring slides in evenly until it
seats into bottom of housing.
F01J1FA
1
2
3
1. Piece of wood
2. Rounded edge
3. Wear ring
After wear ring installation, install wear ring
screws no. 38. If the jet pump wasn't equipped
with screws, it is required to fit screws to wear
ring. Using their holes in jet pump housing as
a drilling guide, drill 4.5 mm (11/64 in) diameter
holes in wear ring.
CAUTION: Drill carefully paying attention
not to damage threads in jet pump housing.
Drilling holes prior to screw installation will
avoid wear ring deformation.
Install screws and torque to 6 N•m(53lbf•in).
smr2005-019 195
www.SeaDooManuals.net

Sea-doo 2005 4-Tec models Specifications

General

Displacement	1494 cc
Fuel Type	Unleaded gasoline
Engine Type	4-TEC
Cooling System	Closed-loop cooling
Seating Capacity	3
Width	48 inches (122 cm)
Fuel Capacity	15.9 US gallons
