Section07PROPULSION
Subsection 01 (JET PUMP)
1
F19J07A
2

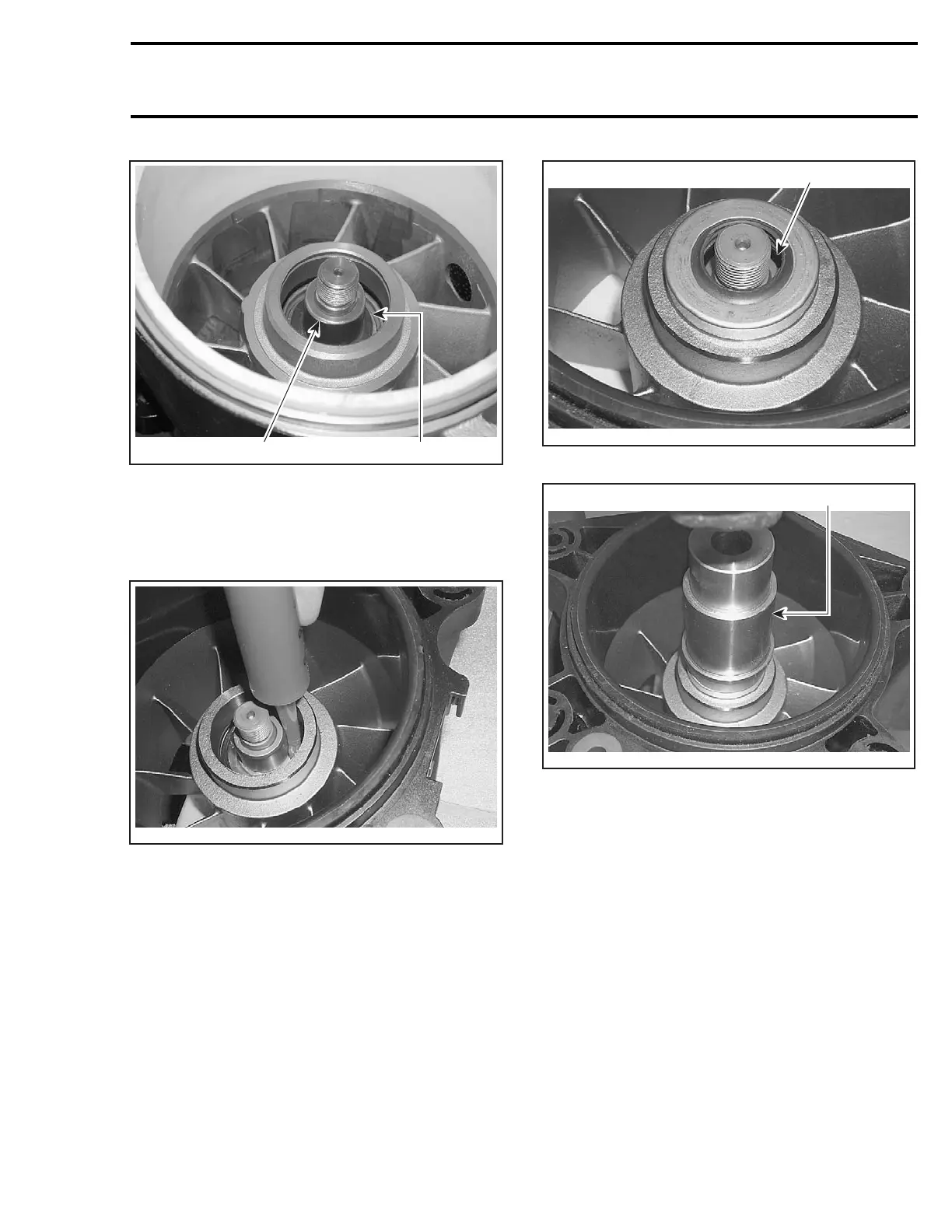

1. O-ring at bottom
2. Sleeve
Apply 4 cc of jet pump bearing grease (P/N 293
550 032) on bearing. Use a new tube of grease
each time a jet pump is rebuilt (1 tube = 1 pump).
F18J12A
Press oil seal no. 29 using the seal/bearing pusher
(P/N 529 035 819) until tool bottoms. Make sure
seal lips are facing up.
1
F18J13A
1. Lips facing up
1
F18J14B
1. Seal/bearing pusher
Install spacer no. 34 and seal no. 33. Ensure seal
lip is facing up.
Install circlip no. 32.
On the outlet side, install 2 O-rings no. 31 in their
respective groove.
Before installing any other parts, pump can be
pressurized to insure proper seal installation. See
PUMP PRESSURIZATION below.
Apply Loctite antiseize (P/N 293 800 070) on im-
peller shaft.
smr2005-019 197
