Section 08 STEERING SYSTEM
Subsection 01 (STEERING SYSTEM)

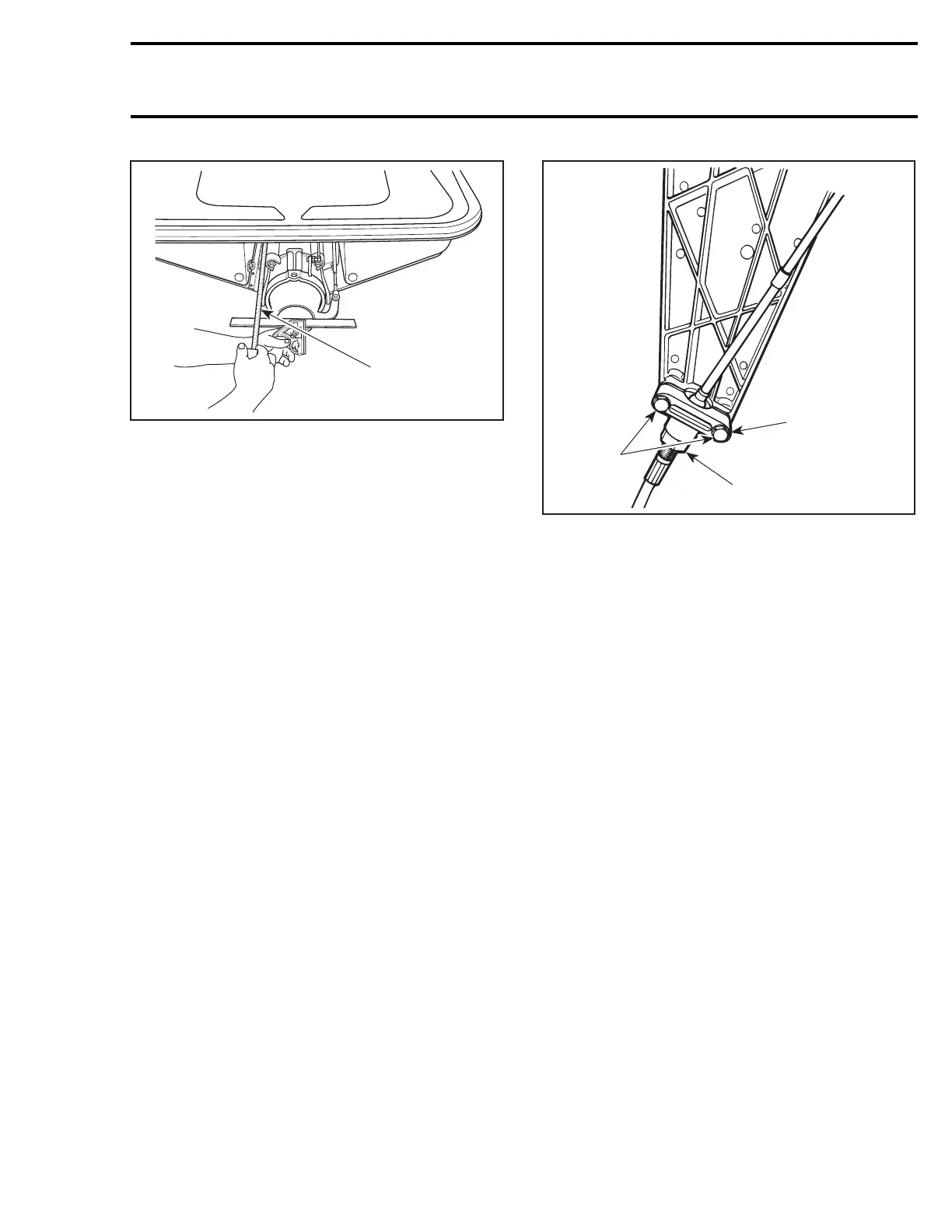

F01J5ZA
1
TYPICAL
1. Measure the distance on each side of the straight edge
If necessary, steering alignment adjustment
should be performed at steering cable support.
GTX Series, Wake and RXT Models
Open storage compartment cover and remove
basket (if so equipped).
Remove access panel (if so equipped).
RXP Models
Remove seat.
All Models
Loosen 2 bolts retaining block at cable support.
Turn adjustment nut as required.
1
3
F01K18A
2
ALL MODELS
1. Retaining block
2. Adjustment nut
3. Loosen bolts
After adjustment, torque retaining block bolts to
6N•m(53lbf•in).
CAUTION: Verify when the handlebar is turned
completely to the left or right side, that there is
no interference with venturi or VTS ring (RXT
models only).
