Section 03 ENGINE SYSTEM
Subsection 02 (LUBRICATION SYSTEM)

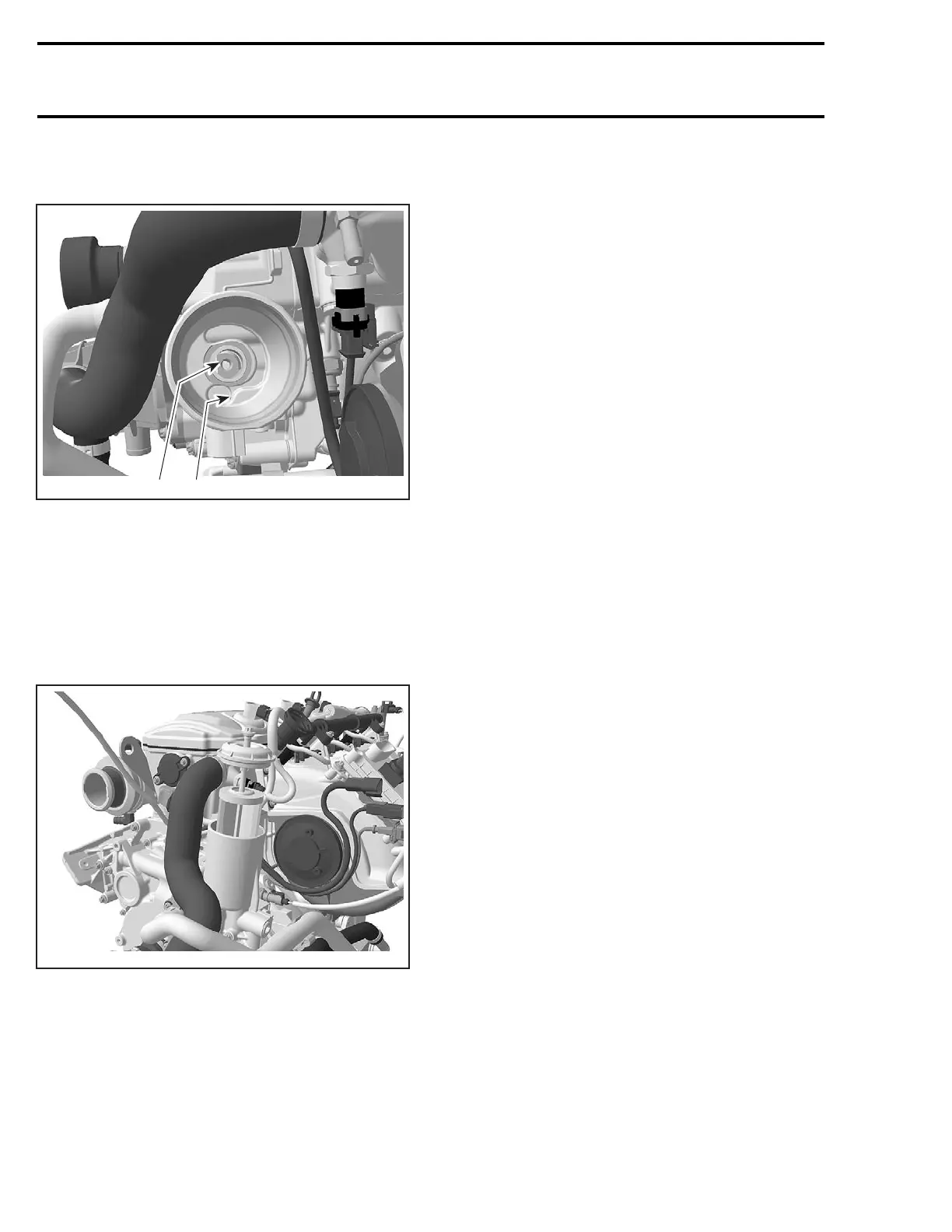

Check and clean the oil filter inlet and outlet area
for dirt and other contaminations.
1
R1503motr115A
2
TYPICAL
1. Inlet bore from the oil pump to the oil filter
2. Outlet bore to the engine oil providing system
Installation
For installation, reverse the removal procedure.
Pay attention to the following details.
Install a new oil filter.
Install O-ring on oil filter cover.
R1503motr116A
TYPICAL
Torque oil filter screw to 9 N•m(80lbf•in).
36 smr2005-007 en
