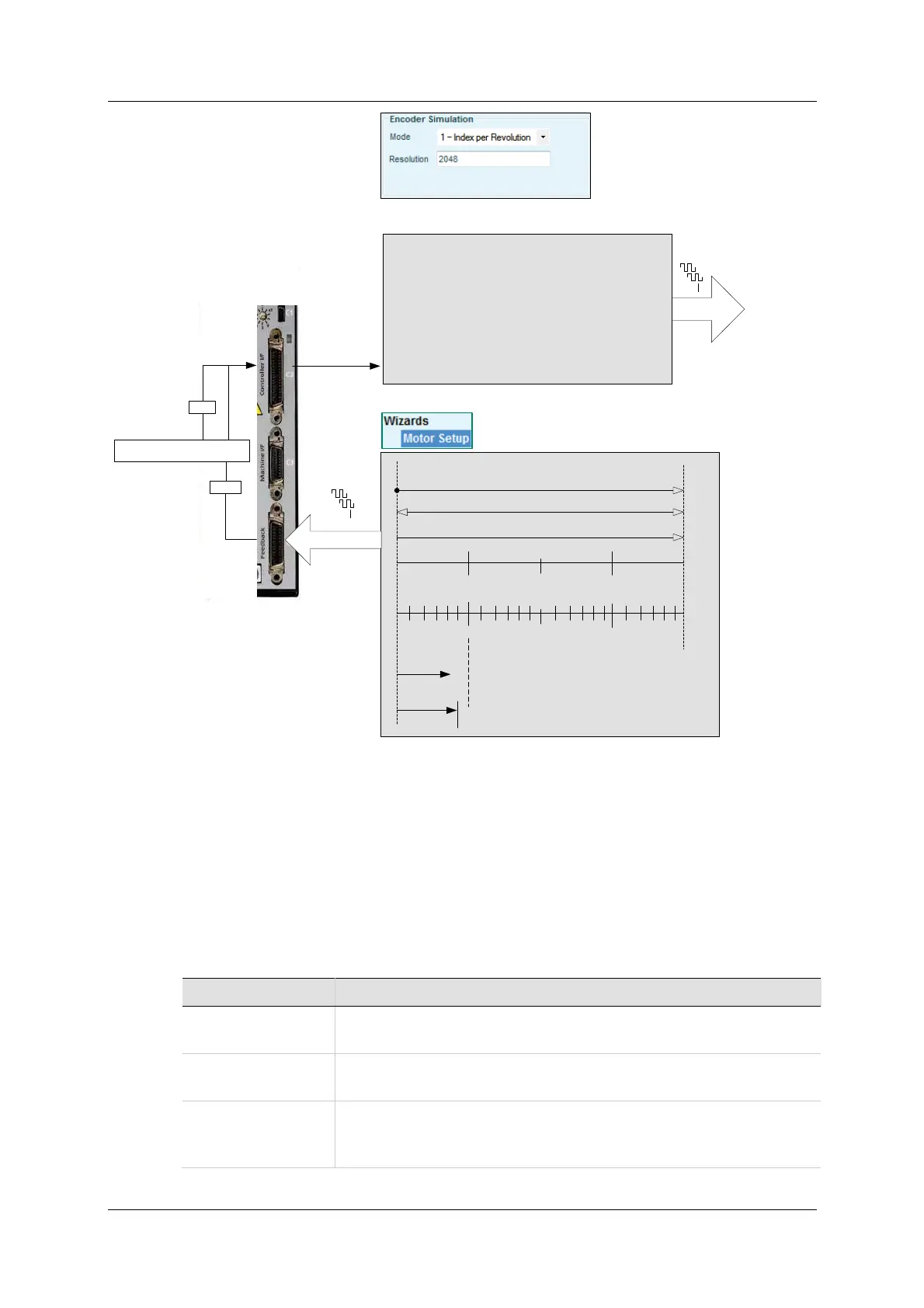

Figur e 6 - 4 . Encoder Sim u lat ion Output Process
6 .5 .7 Resolv er
A resolver is a rotary transformer used to measure the m otor shaft position.
The resolver has a primary winding, and t wo secondaries – a sine and cosine in
sync with the m ot or rot ation. The level of voltage on the sine and cosine waves
correlat es to t he position of the shaft within one revolut ion.
Resolvers typically enable slower dynamic tracking than encoders.
The following param eters are used t o configure and m onit or resolver feedback.
Va rCom Description
RESAMPLRANGE
The acceptable range of resolver sine/ cosine signals,
expressed as a percentage, around their nom inal value.
MRESPOLES
The num ber of individual poles in the resolver feedback
device.
RESFI LTMODE
Defines whether feedback position interpolation is
perform ed on the resolver feedback in order t o generate a
continuous st ream of data.
1 Mechanical Revolution
PFB = 4 x MENCRES [Counts]
MECHANGLE [Counts]
0 65536
Electrical Cycles
360 360360
n
Halls
100 001
101 011
010
110
60
120
180
240
300
Z Index pulse
MENCZPOS
[Counts]
MPHASE
[Degrees]
Feedback
A
I
B
HALLS
A
Z
B
ENCOUTMODE
0 – OFF
1 – ON
2 – ON, Index pulse goes directly from motor via FPGA to C2
ENCOUTRES ±10,000,000 (no 0)
ENCOUTZPOS 0 to 40000000
Notes and Limitations:
Index location is relative to the real index MENCTYPE 0,1, 2
or at zero electrical degree MENCTYPE 3, 4, 6
ENCOUTZPOS is not applicable in ENCOUTMODE 0 and 2
These parameters are defined by user
IF
MENCRES = ABS (ENCOUTRES)
YES
NO
These parameters are set and defined
by the Motor Setup wizard
Other Hall combinations are possible,
depending on the wiring
n = MPOLES/2
[number of electrical cycles]
FPGA
DSP
