CDHD Wiring
User Manual 37
4 W ir ing
4 .1 CDH D- 1 D5 / CDH D- 0 0 3 ( 1 2 0 / 2 4 0 VAC)
W iring and Pin Assignm ents

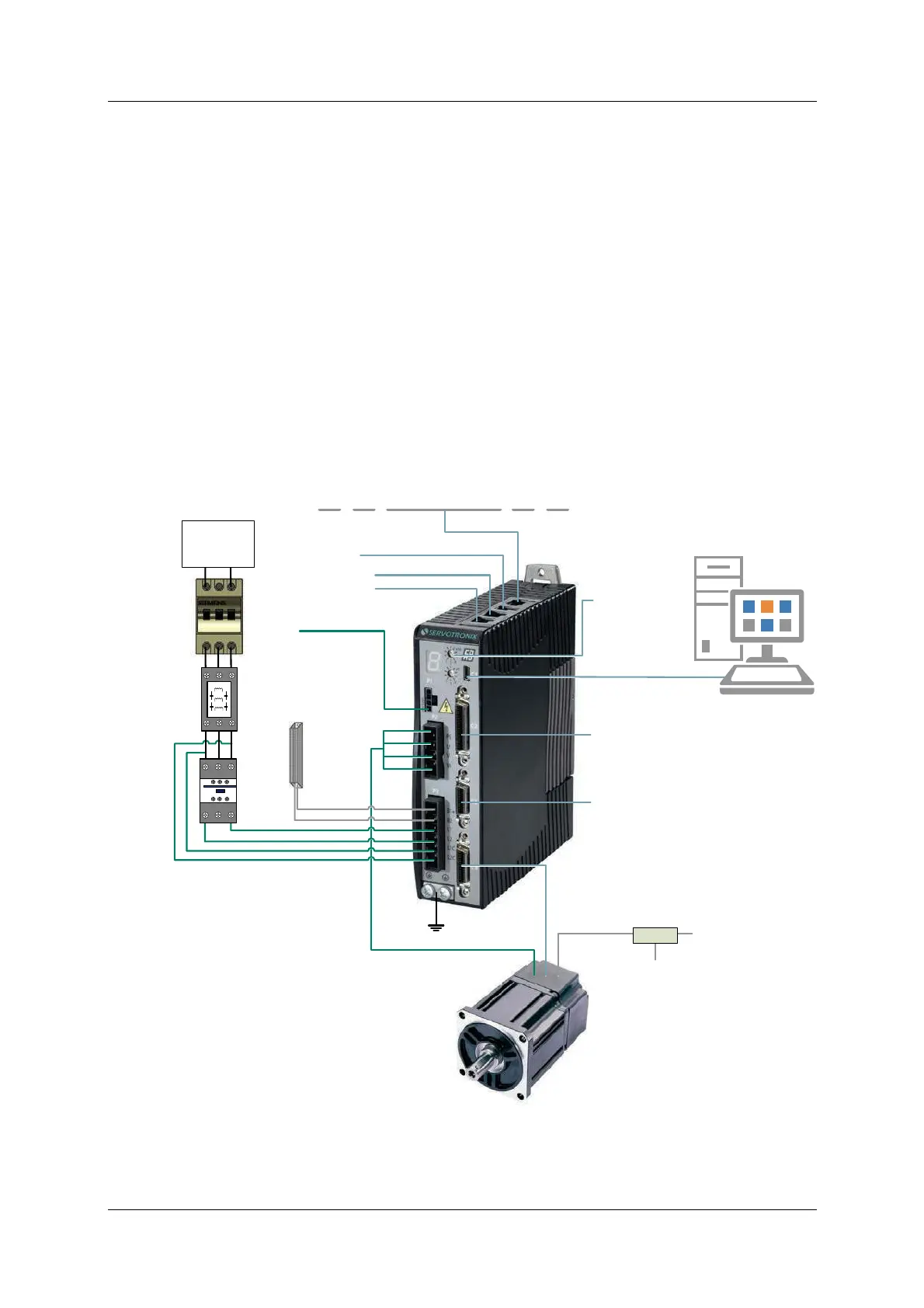

Figur e 4 - 1 . Se rvo Syst em W iring, 1 - Phase – CDH D- 1 D5 / CD HD - 0 0 3
( 1 2 0 / 2 4 0 VAC)
Motor Brake
(optional)
Functional
Ground
Motor Feedback
Motor Power
To PC
USB mini-B cable
To Host Controller
Voltage reference input
Pulse and direction input
Equivalent encoder output
6x digital inputs
3x digital outputs
1x analog output
To Additional IOs
5x digital inputs
3x digital outputs
1x fault relay
Secondary feedback
*Regenerative
Resistor (optional)
Daisy Chain
*24 VDC Power Supply
Brake Output
Rotary Switches
Drive addressing
OUT
RS232
EtherCAT
or CAN
IN
*Relay
Mains
Single-Phase
120/240 VAC
Circuit Breaker
or Fuses
Magnetic
Contactor
Line Filter
(optional)
* To be supplied by customer
Refer to EMI Suppression in the user manual
STO
Safe Torque Off
Connect to * 24 VDC PS
or use bypass plug
