Servotronix CDHD Series - CDHD-020;CDHD-024 (120;240 VAC) Wiring and Pin Assignments

CDHD Wiring
User Manual 49
4 .4 CDH D- 0 2 0 / CDH D- 0 2 4 ( 1 2 0 / 2 4 0 VAC)
W iring and Pin Assignm ents

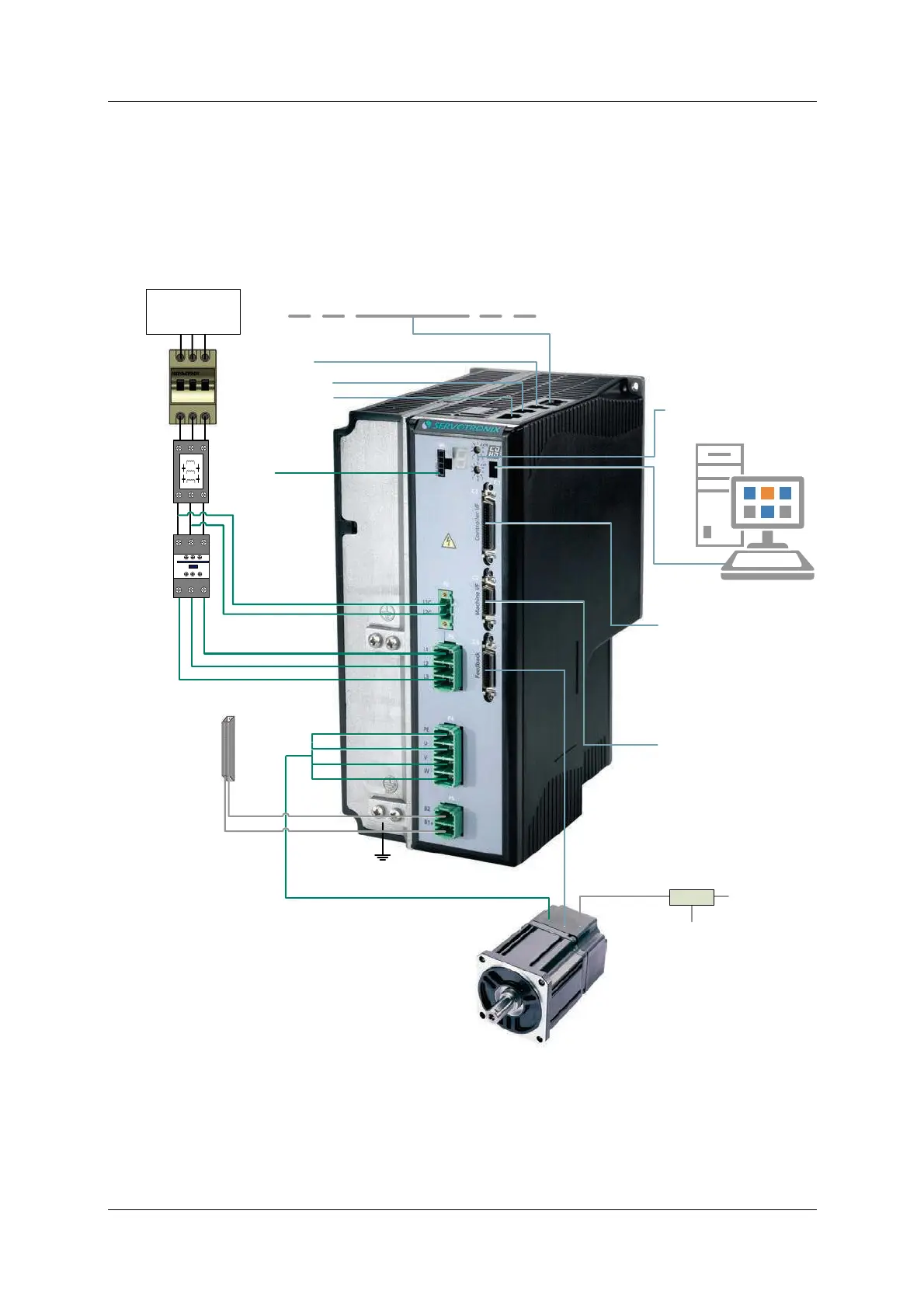

Figur e 4 - 1 3 . Servo Syst e m W iring, 3 - Phase – CDHD - 0 2 0 / CD H D- 0 2 4
( 1 2 0 / 2 4 0 VAC)
Functional
Ground
Motor Feedback
Motor Power
To PC
USB mini-B cable
Circuit
Breaker
or Fuses
Magnetic
Contactor
Line Filter
(optional)
Rotary Switches
Drive addressing
Mains
Three-Phase
120/240 VAC L-L
Daisy Chain
OUT
RS232
EtherCAT
or CAN
IN
To Host Controller
Voltage reference input
Pulse and direction input
Encoder equivalent output
6x digital inputs
3x digital outputs
1x analog output
To Additional IOs
5x digital inputs
3x digital outputs
1x fault relay
Secondary feedback
Motor Brake
(optional)
*24 VDC
Power Supply
Brake Output
*Relay
* Regenerative
Resistor (optional)
* To be supplied by customer
Refer to EMI Suppression in the user manual
STO
Safe Torque Off
Connect to * 24 VDC PS
or use bypass plug
