Specificat ions CDHD
18 User Manual

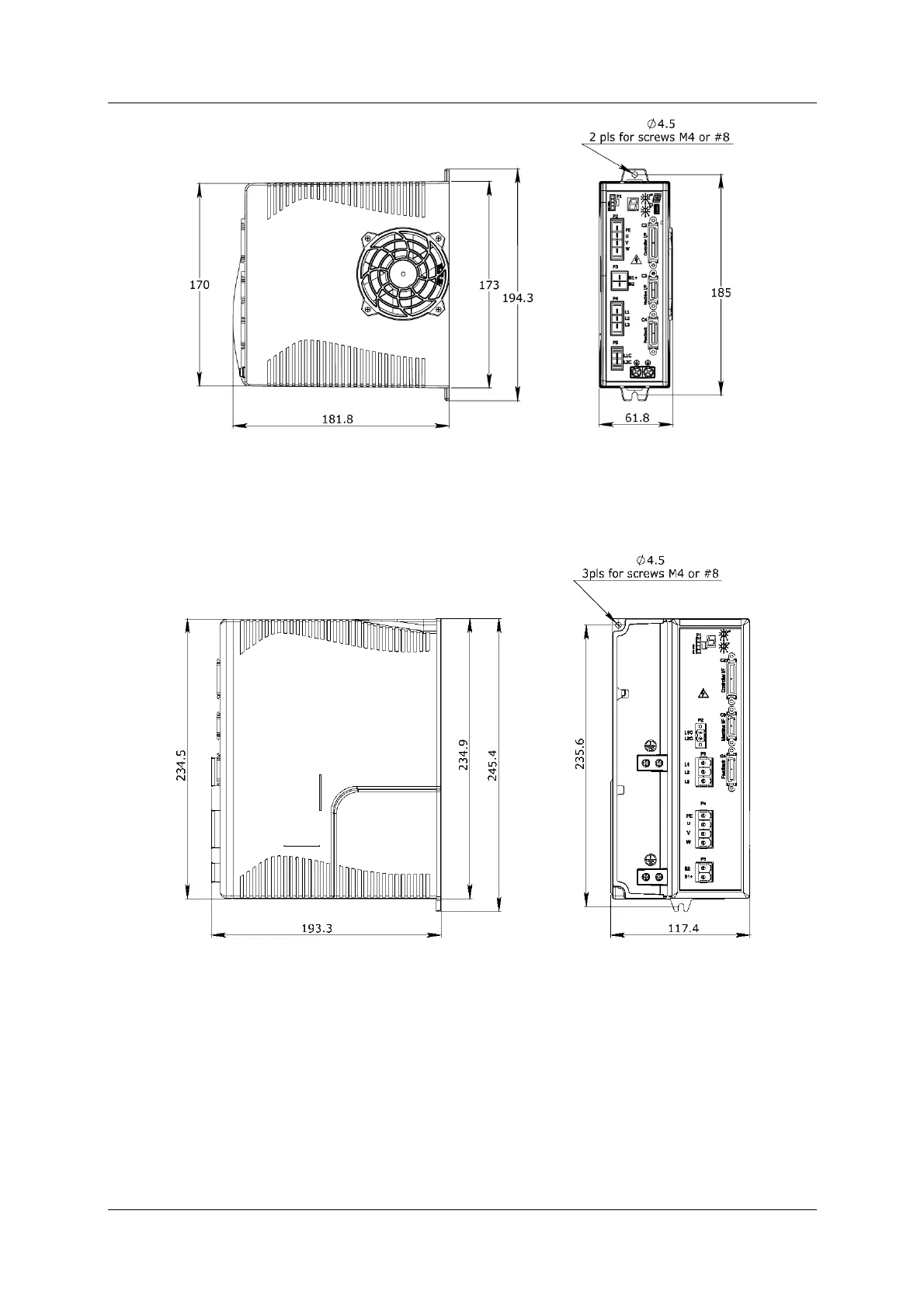

Figur e 3 - 3 . CD H D - 0 0 8 / CD H D - 0 1 0 / CD H D - 0 1 3 ( 1 2 0 / 2 4 0 VAC) –
Dim e nsions ( m m )
Figur e 3 - 4 . CD H D - 0 2 0 / CD H D - 0 2 4 ( 1 2 0 / 2 4 0 VAC) – Dim ensions ( m m )
