Wiring CDHD
44 User Manual

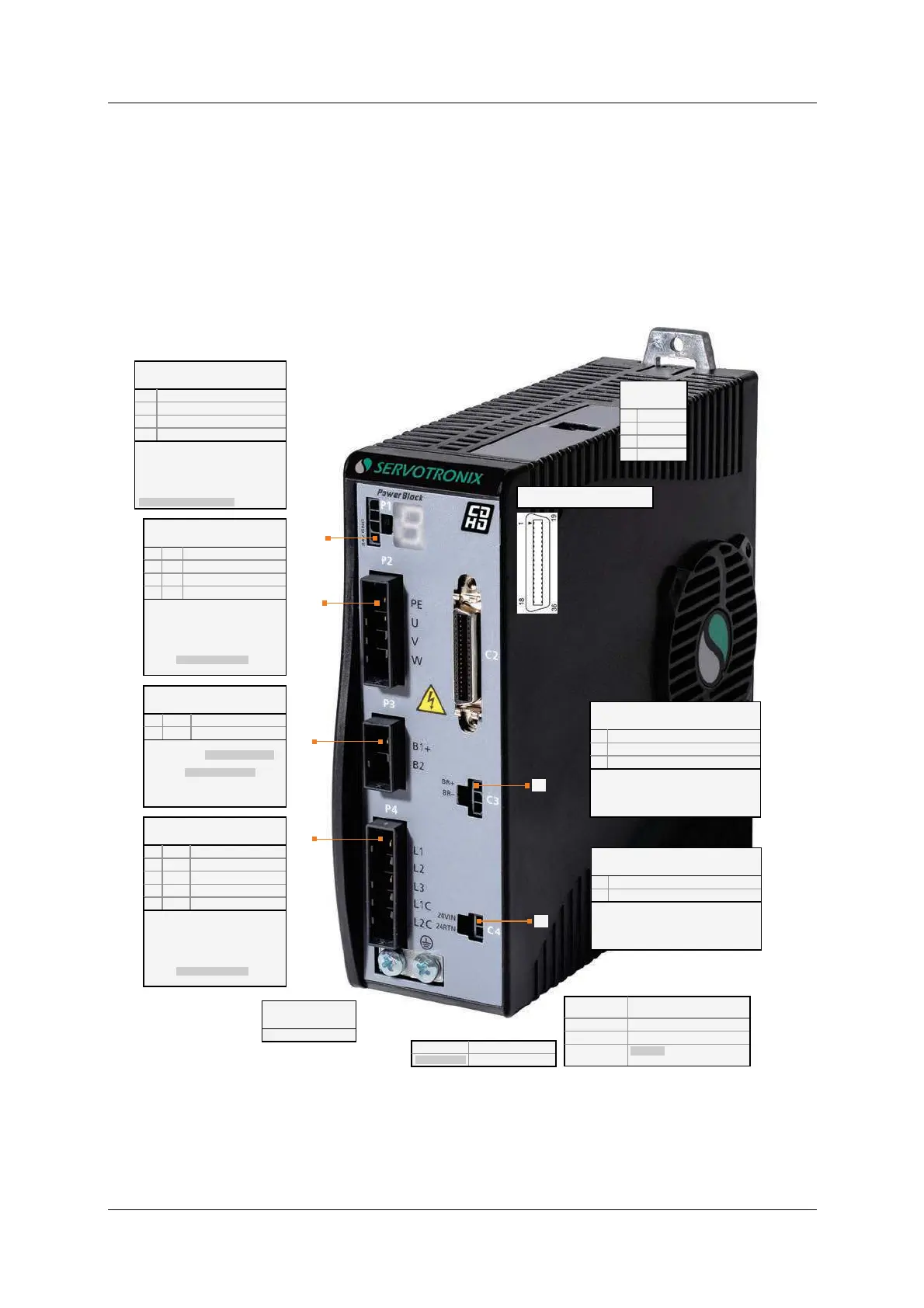

Figur e 4 - 8 . Pin Assignm ent s on CD H D -4 D5 / CD HD - 0 0 6 –
PB Mode ls ( 1 2 0 / 2 4 0 VAC)
Motor Brake Control
C3: Molex | 26-28 AWG
1
Motor Brake (+)
2
Motor Brake (-)
3
Not connected
Mating Connector:
Crimp Housing – PN 43645-0300 or equivalent
(STX PN CONr10000003-08)
Contacts – PN 0430300001 or equivalent
(STX PN PINr43030000-00)
Motor Brake DC 24V Input
C4: Molex | 26-28 AWG
1
DC +24V
2
DC -24V (return)
Mating Connector:
Crimp Housing – PN 43645-0200 or equivalent
(STX PN CONr10000002-03)
Contacts – PN 0430300001 or equivalent
(STX PN PINr43030000-00)
1
Functional Ground
PE: Terminal M4
M4 ring or spade terminal
1
1
1
1
1
Regeneration
P3: JST J300 | 16 AWG
1
B1+
DC Bus +
2
B2
Regen Bus -
Mating Connector:
Crimp Housing – PN F32FSS-02V-KX
(STX PN CONr10000002-10)
Contacts – PN SF3F-71GF-P2.0
(STX PN PINrSF3F71GF-00)
Mating Connector:
Spring – not available
AC Input
P4: JST J300 | 16 AWG
1
L1
AC Phase 1
2
L2
AC Phase 2
3
L3
AC Phase 3
4
L1C
Logic AC Phase 1
5
LC2
Logic AC Phase 2
Mating Connector:
Crimp Housing – PN F32FSS-05V-KX
(STX PN CONr10000005-03)
Contacts – PN SF3F-71GF-P2.0
(STX PN PINrSF3F71GF-00)
Mating Connector:
Spring – PN 05JFAT-SBXGF-I
(STX PN CONr10000005-04)
Motor
P2: JST J300 | 16 AWG
1
PE
Functional Ground
2
U
Motor Phase U
3
V
Motor Phase V
4
W
Motor Phase W
Mating Connector:
Crimp Housing –PN F32FSS-04V-KX
(STX PN CONr10000004-13)
Contacts – PN SF3F-71GF-P2.0
(STX PN PINrSF3F71GF-00)
Mating Connector:
Spring – PN 04JFAT-SBXGF-I
(STX PN CONr10000004-19)
Crimping tool
Molex 0638190000 (P1, C3, C4)
or equivalent
Crimping tool
YRF-1070 (P2, P3, P4)
Extraction tool
EJ-JFAJ3
Key for spring
connector
J-FAT-OT
For C2 pin descriptions, refer to
the master controller documentation
RS232
C7: 4p4c
1
RX
2
GND ISO
3
TX
4
STO – Safe Torque Off
P1: Molex | 26-28 AWG
1
24 VDC (STO enable)
2
Ground (24 VDC return)
3
4
Mating Connector:
Crimp Housing – PN 436450400 or equiv.
(STX PN CONr10000004-09)
Contacts – PN 0430300001 or equiv.
(STX PN PINr43030000-00)
Wired STO:
STX PN CONr00000004-AS
STX
Servotronix
Highlighted PN
Supplied with CDHD
