Wiring CDHD
52 User Manual

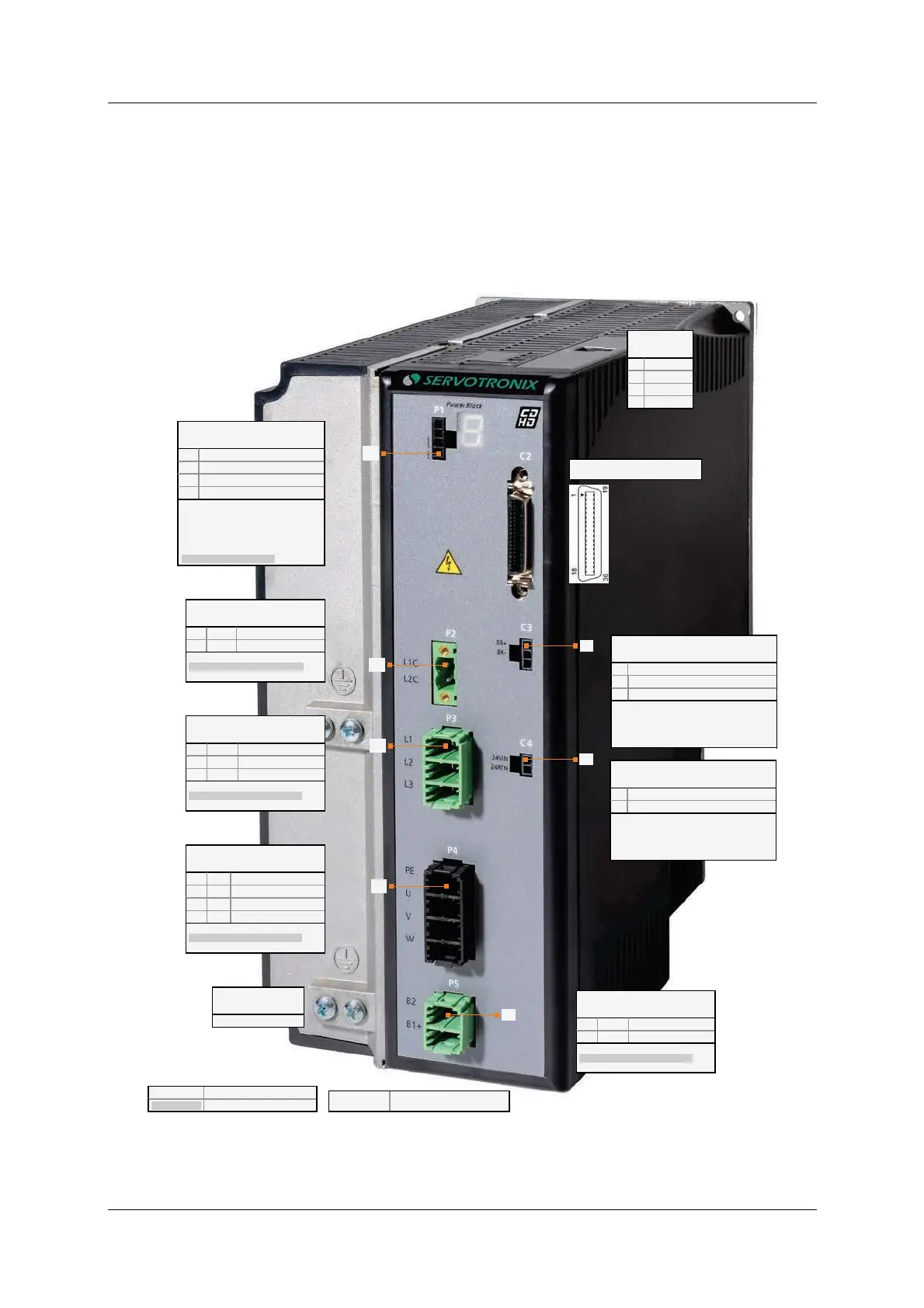

Figur e 4 - 1 6 . Pin Assignm ent s on CD H D-0 2 0 / CD HD - 0 2 4 –
PB Mode ls ( 1 2 0 / 2 4 0 VAC)
Functional Ground
PE: Terminal M4
M4 ring or spade terminal
1
1
1
1
1
1
1
STX
Servotronix
Highlighted PN
Supplied with CDHD-PB
Motor
P4 Phoenix | 10-11 AWG
1
PE
Functional Ground
2
U
Motor Phase U
3
V
Motor Phase V
4
W
Motor Phase W
Mating Connector:
PN SPC 5/4-STCL-7,62 (1718504)
(STX PN CONr10000004-26)
Main AC Input
P3: Phoenix | 12-13 AWG
1
L1
AC Phase 1
2
L2
AC Phase 2
3
L3
AC Phase 3
Mating Connector:
PN SPC 5/3-STCL-7,62 (1718494)
(STX PN CONr10000003-21)
Logic Power AC Input
P2: Phoenix | 16 AWG
1
L1C
AC Phase 1
2
L2C
AC Phase 2
Mating Connector:
PN FKC 2.5/2-STF-5.08 (1873207)
(STX PN CONr10000002-25)
Regeneration
P5 Phoenix | 14 AWG
1
B2
Regen Bus -
2
B1+
DC Bus +
Mating Connector:
PN SPC 5/2-STCL-7,62 (1718481)
(STX PN CONr10000002-16)
Motor Brake Control
C3: Molex | 26-28 AWG
1
Motor Brake (+)
2
Motor Brake (-)
3
Not connected
Mating Connector:
Crimp Housing – PN 43645-0300 or equivalent
(STX PN CONr10000003-08)
Contacts – PN 0430300001 or equivalent
(STX PN PINr43030000-00)
Motor Brake DC 24V Input
C4: Molex | 26-28 AWG
1
DC +24V
2
DC -24V (return)
Mating Connector:
Crimp Housing – PN 43645-0200 or equivalent
(STX PN CONr10000002-03)
Contacts – PN 0430300001 or equivalent
(STX PN PINr43030000-00)
Crimping tool
Molex 0638190000 (P1, C3, C4)
or equivalent
For C2 pin descriptions, refer to
the master controller documentation
RS232
C7: 4p4c
1
RX
2
GND ISO
3
TX
4
STO – Safe Torque Off
P1: Molex | 26-28 AWG
1
24 VDC (STO enable)
2
Ground (24 VDC return)
3
4
Mating Connector:
Crimp Housing – PN 436450400 or equiv.
(STX PN CONr10000004-09)
Contacts – PN 0430300001 or equiv.
(STX PN PINr43030000-00)
Wired STO:
STX PN CONr00000004-AS
