Assembly and Installation
Subject to change without notice

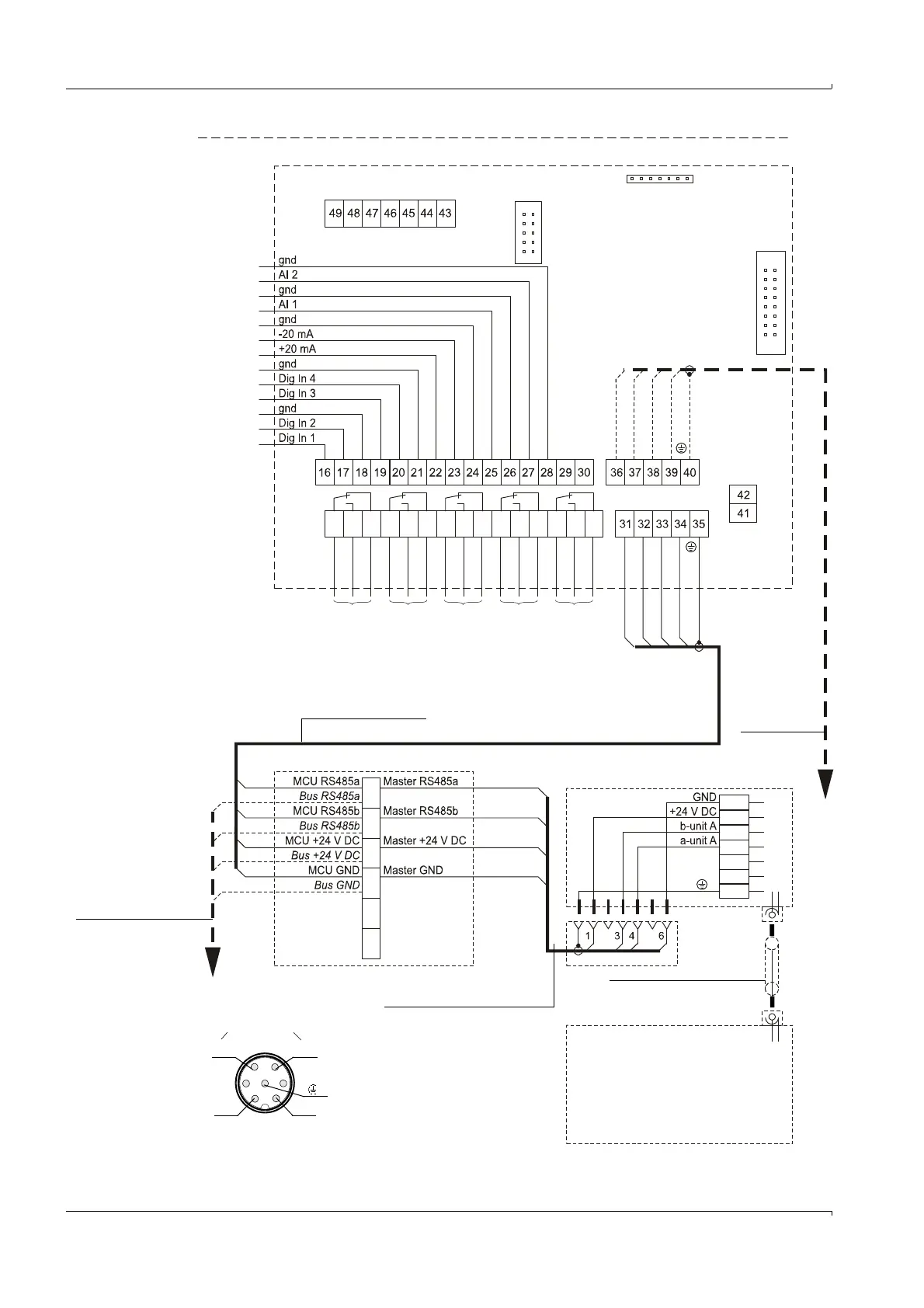

Fig. 75 FLOWSIC100 S connection on the MCU
24 V
1
2
3
4
5
6
RS485
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15
+24 V DC
GND
a-unit A b-unit A
+24 V DC GND a-unit A b-unit A
A Operation/malfunction
B Maintenance
C Check cycle
D Maintenance
E Limit values
F Onsite cable to second junction box
For bus cabling (two-path measurement), version B
G Cable provided by customer to second junction box
For bus cabling (two-path measurement), version A
MCU
FLSE100-SD
Connection cable, Slave
(length 5/10/50 m)
Analog connection cable
Junction box (optional)
Onsite cable
Processor board
WH BN GN YE
FLSE100-SA
Plug-in
connector
G
F
A
BCD
E
Plug-in connector assign-
ment, Slave: Outer view
RS485 to Master
43
61
BN WH
GN YE
BL
GN
YE
WH
BN
GN
YE
WH
BN
GN
YE
WH
BN
