Start-up and Parameter Settings
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V 2-1/2016-07 · © SICK Engineering GmbH 121
Subject to change without notice
Serial communication (when connected via USB)
Select the COM ports used.
If you are not sure which COM ports are used, select all COM ports.
Define the baudrate settings in the “Baudrate” directory according to
p. 121, Fig.
94.

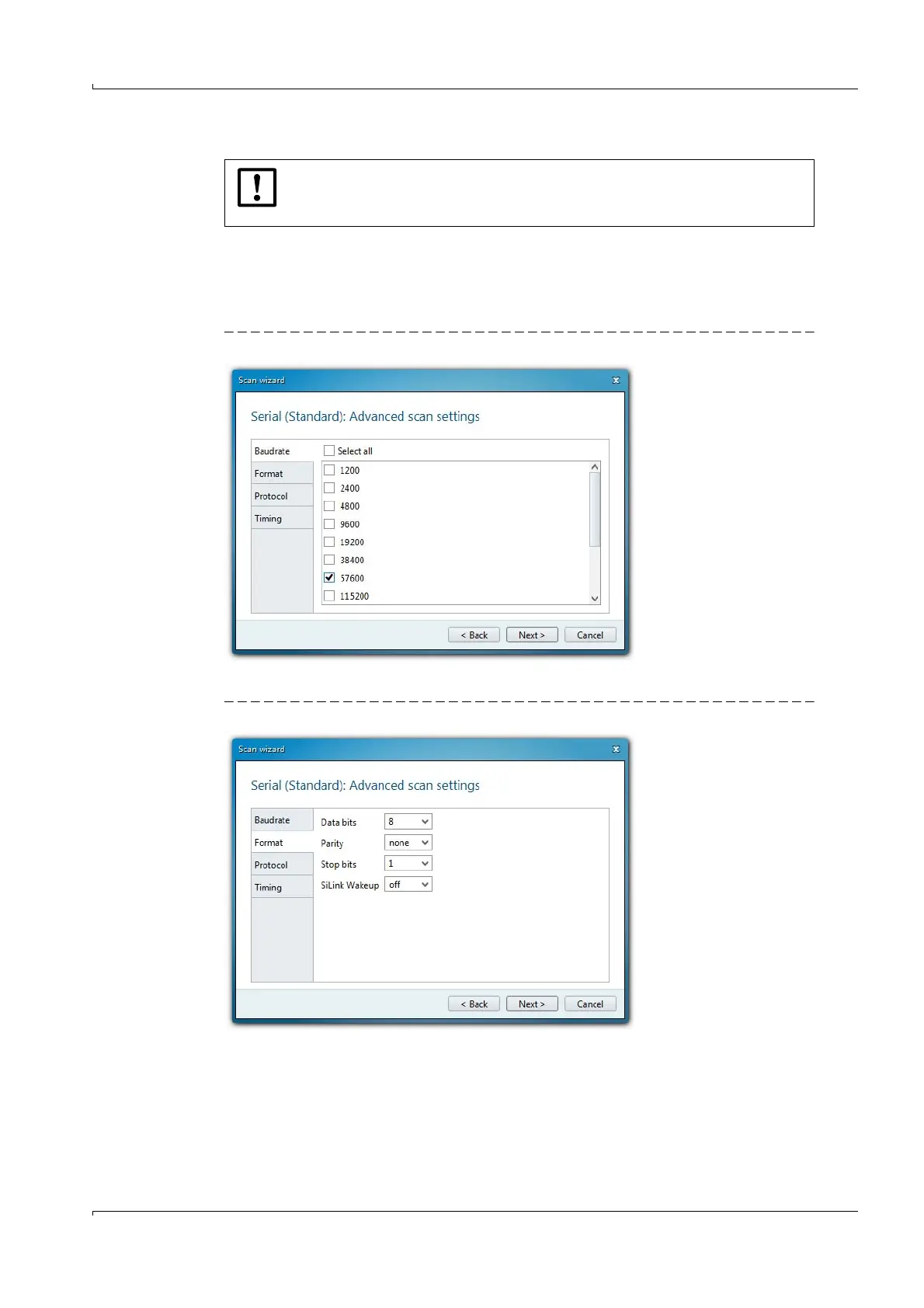

Fig. 94 Defining the baudrate
Configure the data format in the “Format” directory according to
p. 121, Fig. 95.
Fig. 95 Configuring the data format
Define the protocol settings in the “Protocol” directory according to
p. 119, Fig. 91.
Define the timeout settings in the “Timing” directory according to
p. 120, Fig. 92.
5
To save the scan settings, enter a name and click “Finish” (
p. 119, Fig. 90).
SOPAS ET starts the device search. The devices found are displayed in the “Device
search” area when device search is finished (
p. 122, Fig. 96).
NOTICE:
The MCU(P) is connected via USB to the laptop/PC.
A serial interface (COM port) is simulated via which the connection is made.
