Product Description
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V2-1/2016-07 · © SICK Engineering GmbH 23
Subject to change without notice
The following differences exist in addition to the possible versions:

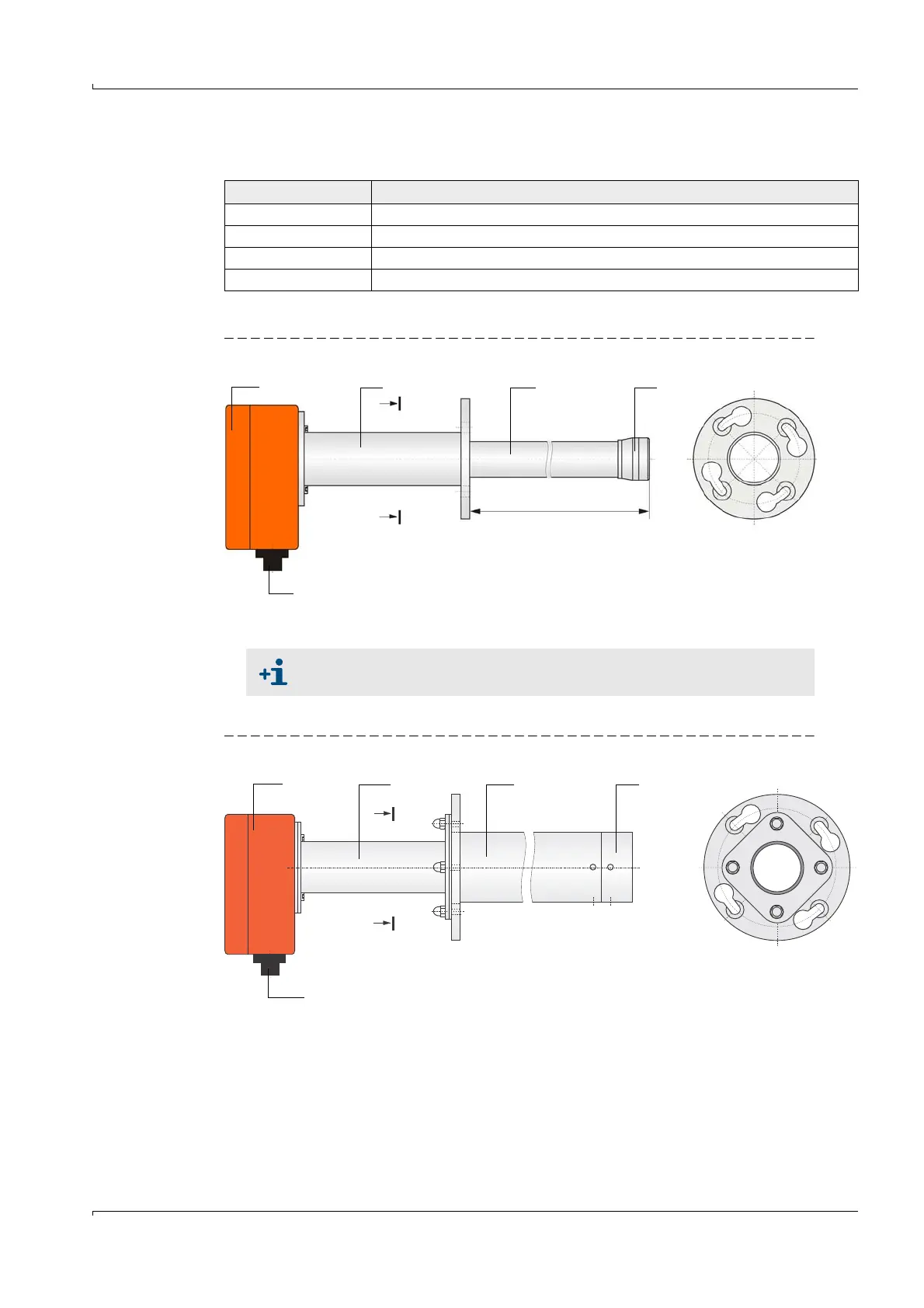

Fig. 6 FLSE100-M
Fig. 7 FLSE100-H
Type FLSE Transducer and duct probe
M Nominal diameter 35 mm
H Nominal diameter 60 mm
PR Measuring probe version (2 transducers)
SA, SD Duct probe Ø 35 mm, transducer 15 mm
The type FLSE100-M is also available with other flanges on request (  p.
169, 6.3.1).
NL = 200 mm, 350 mm, 550 mm
NL
A
A
A - A
1 Electronics unit 4 Transducer
2 Connection piece 5 Connection for connection cable
3 Duct probe
1
2
34
5
A - A
NL = 200 mm, 350 mm, 550 mm, 750 mm
A
A
NL
1
2
34
5
1 Electronics unit 4 Transducer
2 Connection piece 5 Connection for connection cable
3 Duct probe
