Assembly and Installation
FLOWSIC100 · Operating Instructions · 8012513/YSA5/V2-1/2016-07 · © SICK Engineering GmbH 85
Subject to change without notice

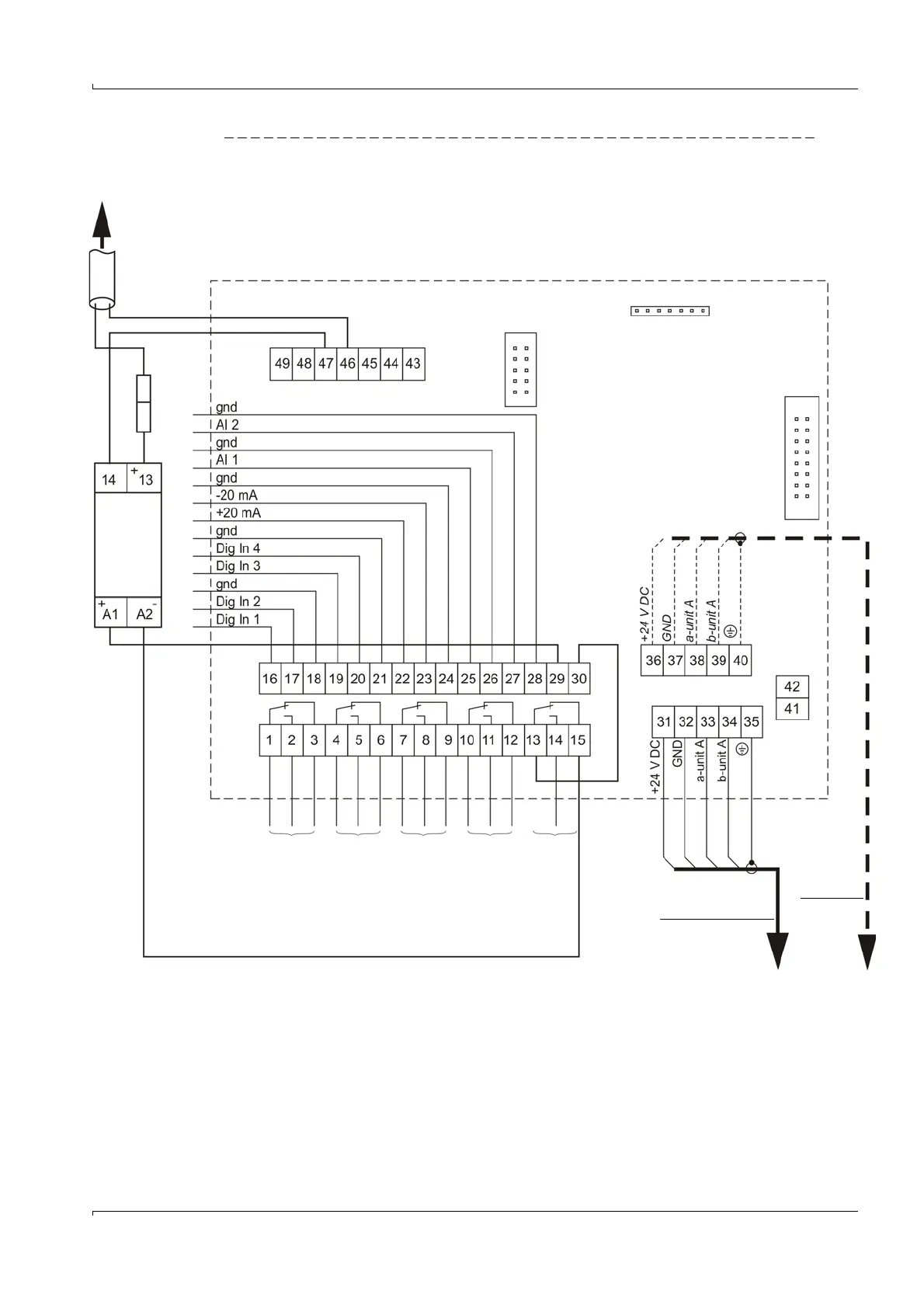

Fig. 54 Connection between cooling air control on MCU-P and MCU-N with external blower unit 24 V DC
Cable onsite
Cable
onsite
To internal blower (MCU-P) /
external blower (MCU-N)
Processor board
White
Pink
Black
Grey
Blue
Brown
Brown
Lamp-wire
connector
Solid-
state
relay
