6.6.3 Check and reset hydraulic oil level
To check the hydraulic oil level in the tank, proceed as follows:
A) Park the machine on level, solid and firm ground.
B) Safely stop the machine. (*).
C) Check the hydraulic oil level (visible) on the oil sight glass (2) on the
tank.
NOTE
The oil level must be between the minimum and maximum references.
D) In case of insufficient level, restore it immediately.
E) Thoroughly clean the area around the filler plug (3) of any oil residue.
F) Remove the drain plug (3).
G) Fill in new oil until the correct level is reached, as indicated on the oil
level gage (2).
H) Reposition and tighten the filler plug (3).
3
2
(*) See par. “5.7” pag. 99

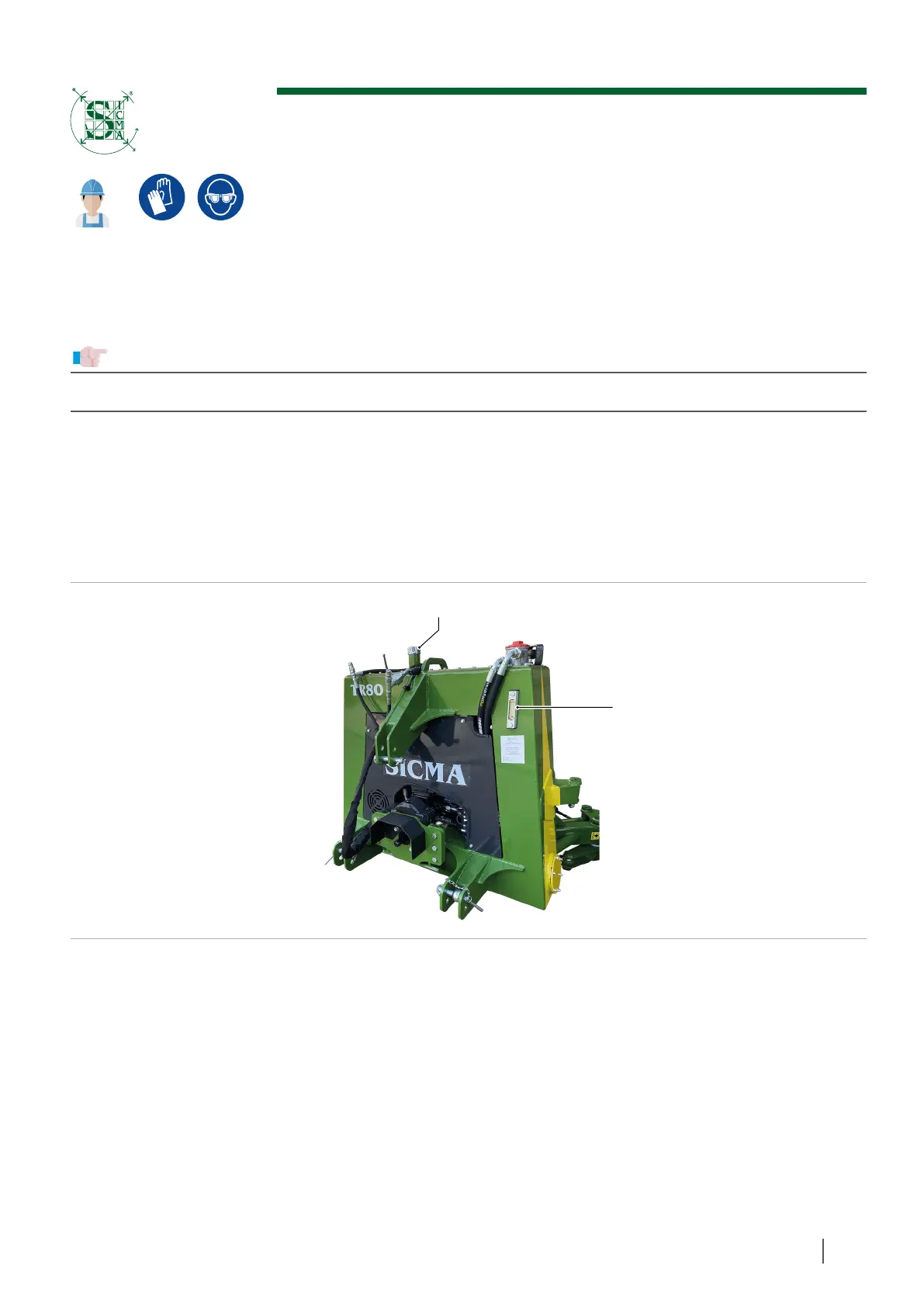

Figure 60
