6.10.9 Replacement of rubber pillows
In case of excessive wear, evident deformation or breakage of a rubber roller,
it must be replaced:
A) Safely stop the machine. (*).
B) Release the rubber band from the bottom.
C) Remove the screws (1), nuts (4) and washers (5) that secure the rubber
band (2) to the underside of the rubber jaw (3).
D) Unscrew the rubber roller (6) and replace it with a new one.
E) Insert and tighten the screws (1), nuts (4) and washers (5) removed
earlier to secure the band (2) to the underside of the jaw (3).
F) Tighten the screws (1).
5
1
4 5
2
3
6
(*) See par. “5.7” pag. 99

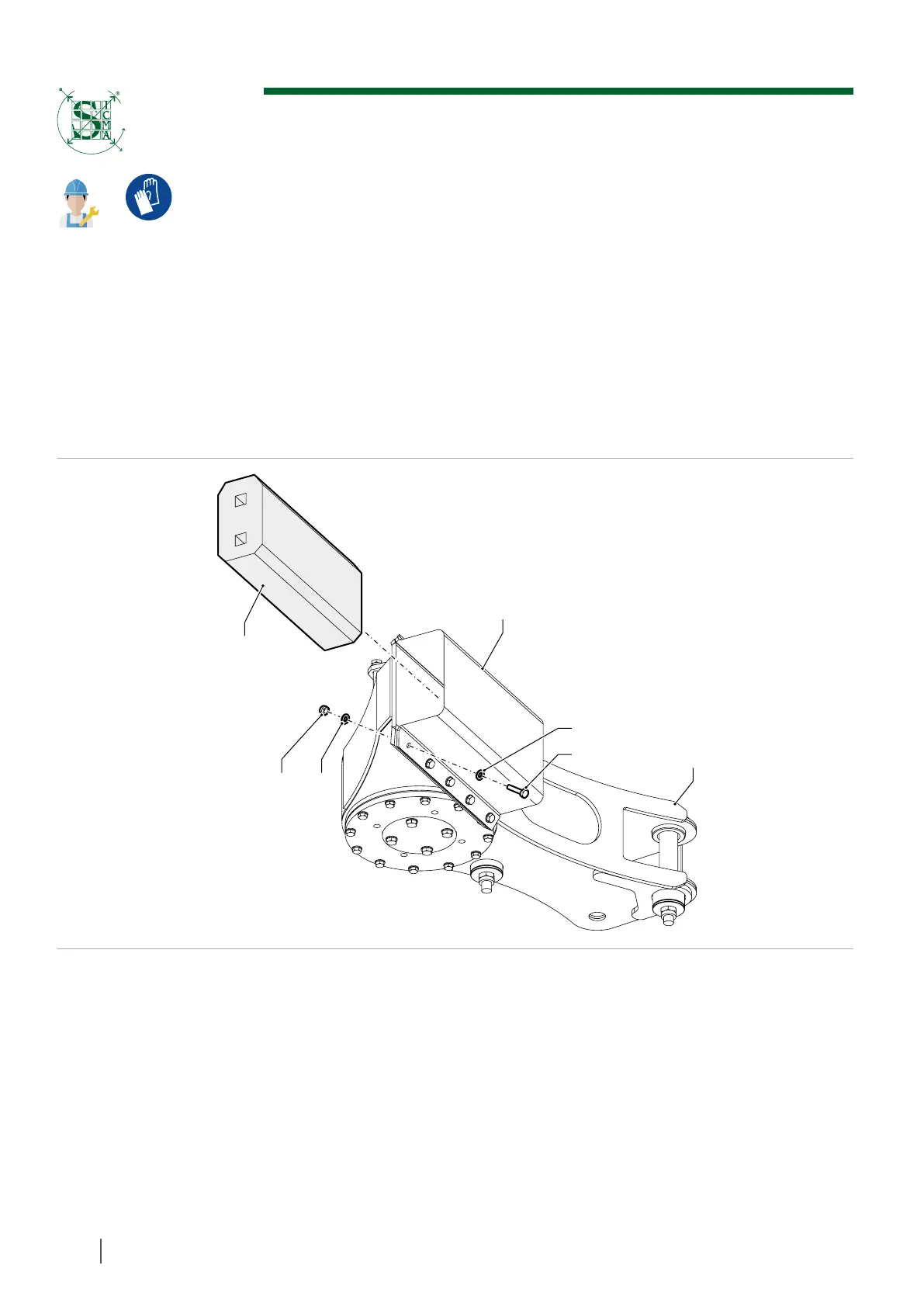

Figure 77
