Sicma TR80 - Telescopic Arm; Greasing of the Arm Support Pin

User and maintenance manual - SEMI-MOUNTED HARVESTER WITH TRUNK SHAKER - TR80
Rev. 0 - 05/2021
6.11 Telescopic arm
ATTENTION
During the greasing operations, before injecting lubricating grease into the
grease nipples, clean the grease nipples thoroughly to prevent mud, dust
or other foreign bodies from mixing with the grease, thus reducing or even
canceling the lubrication effect.
6.11.1 Greasing of the arm support pin
To grease the pins of the supports jack of the telescopic arm, proceed as
follows:
A) Safely stop the machine. (*).

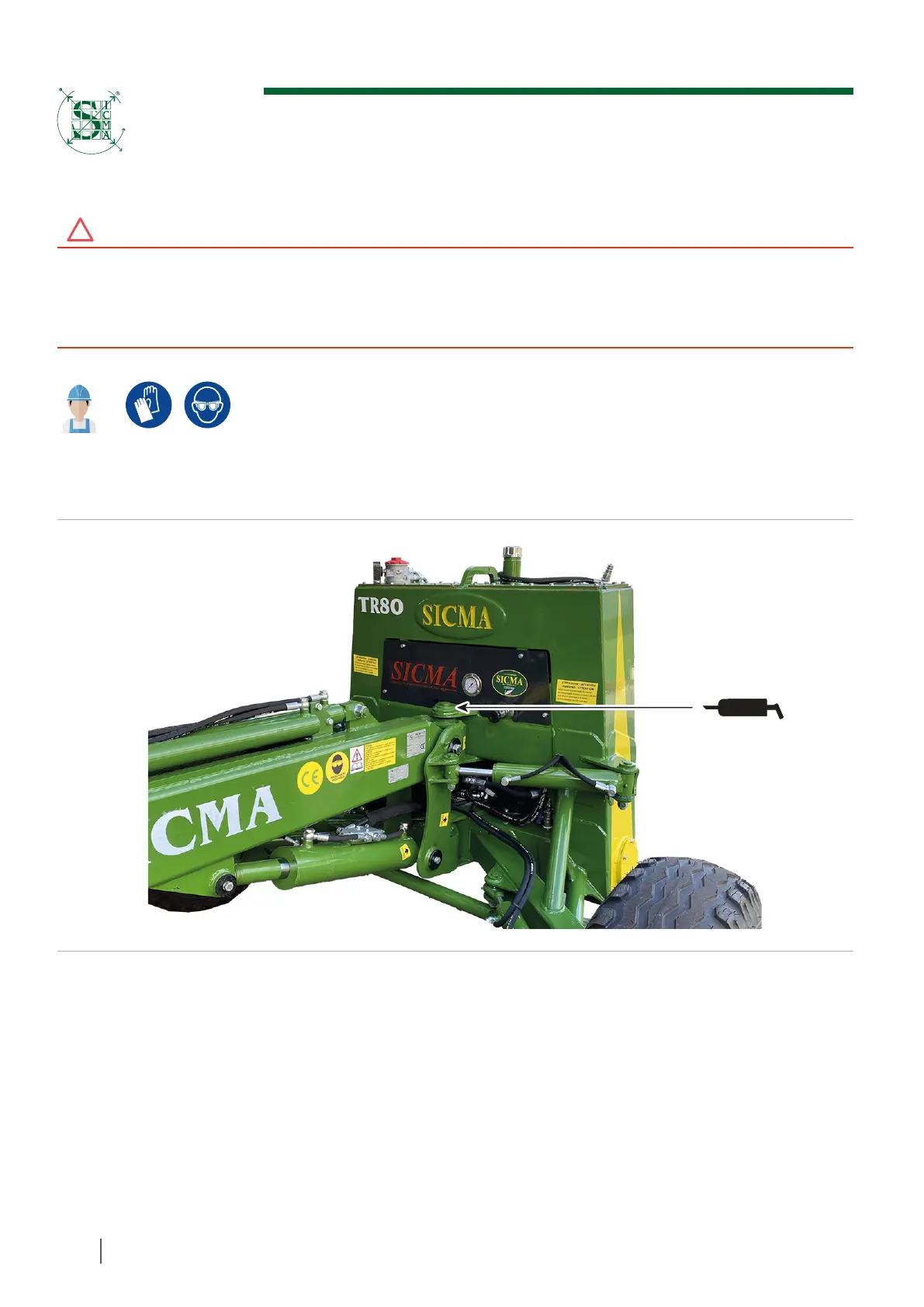

B) Grease the arm supports jack pin at the point indicated in Figure 79.
(*) See par. “5.7” pag. 99
Figure 79
