5.1.2 Coupling of the machine
Make sure that the machine is firmly positioned on a solid surface, in a manner
that prevents uncontrolled movements.
The width between the two arms of the three-point linkage of the tractor
linkage must be at least equal to (or greater) than the width of the links of the
two lower points of the machine.
ATTENTION
The machine can only be connected to a tractor with the lower link arms
fixed and placed on the rear part of the tractor itself; side oscillations of the
machine are not allowed.
• Move the tractor closer and raise the linkage arms until the holes in
the tractor couplings and the holes in the machine couplings match.
• Stop the tractor engine, apply the parking brake, remove the ignition
key.

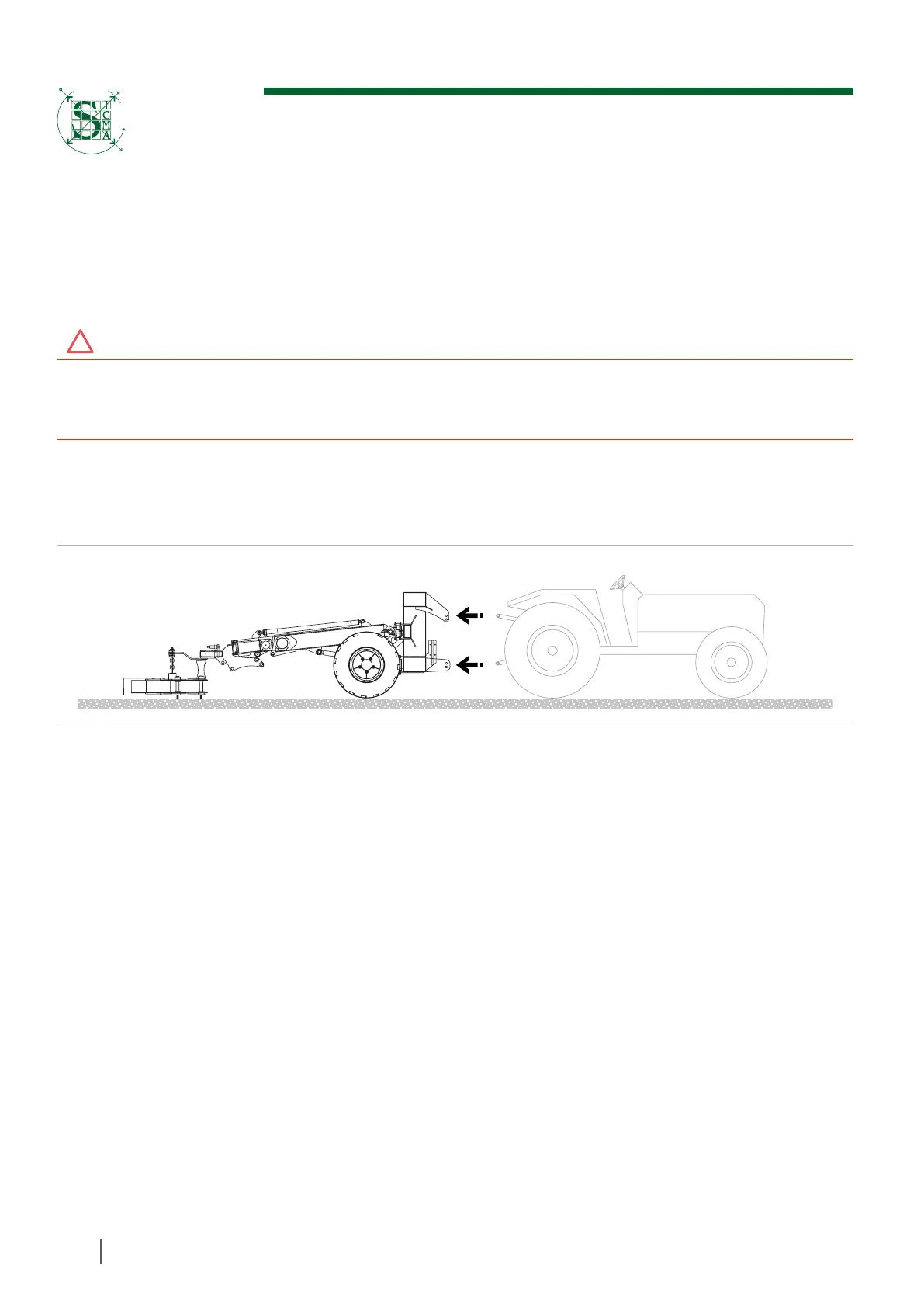

Figure 41
