6.7.2 Lubricating oil replacement
To replace the hydraulic oil inside the speed multiplier gearbox, proceed as
follows:
A) Park the machine on level, solid and firm ground.
B) Safely stop the machine. (*).
C) Loosen/remove tank cap (1) to ensure the air intake.
D) Place a container of suitable capacity under the drain plug (3) located
on the bottom of the multiplier
E) Then loosen and remove the cap (3).
F) Let the oil drain completely.
G) At the end of the operation, close the cap (3) carefully cleaning the
surrounding area.
1
3
(*) See par. “5.7” pag. 99

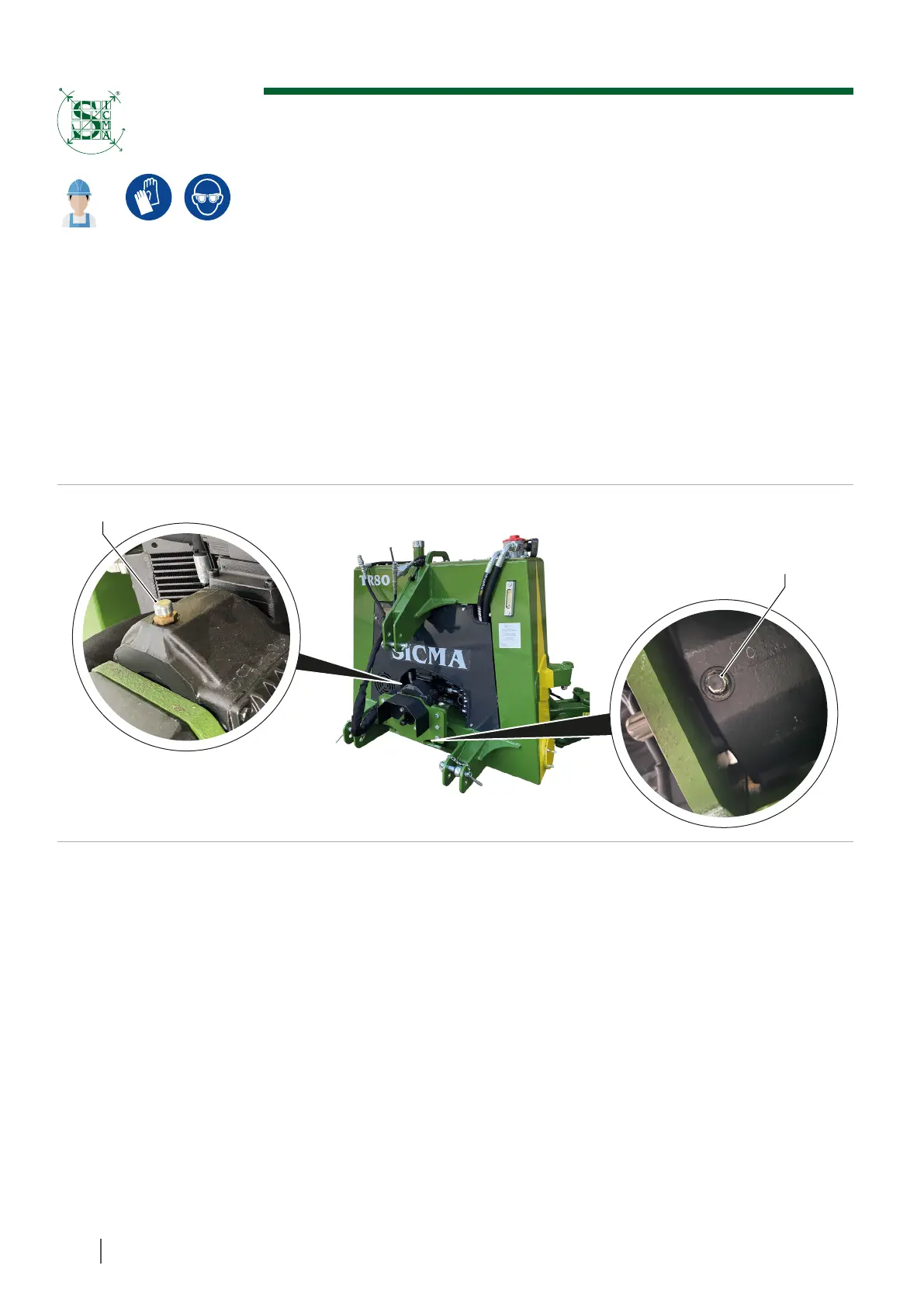

Figure 65
