6.11.3 Greasing of arm total rotation pins and rotation jack
pins
To grease the total rotation pins of the arm and the jack pins that allow it to
rotate, proceed as follows:
A) Safely stop the machine. (*).

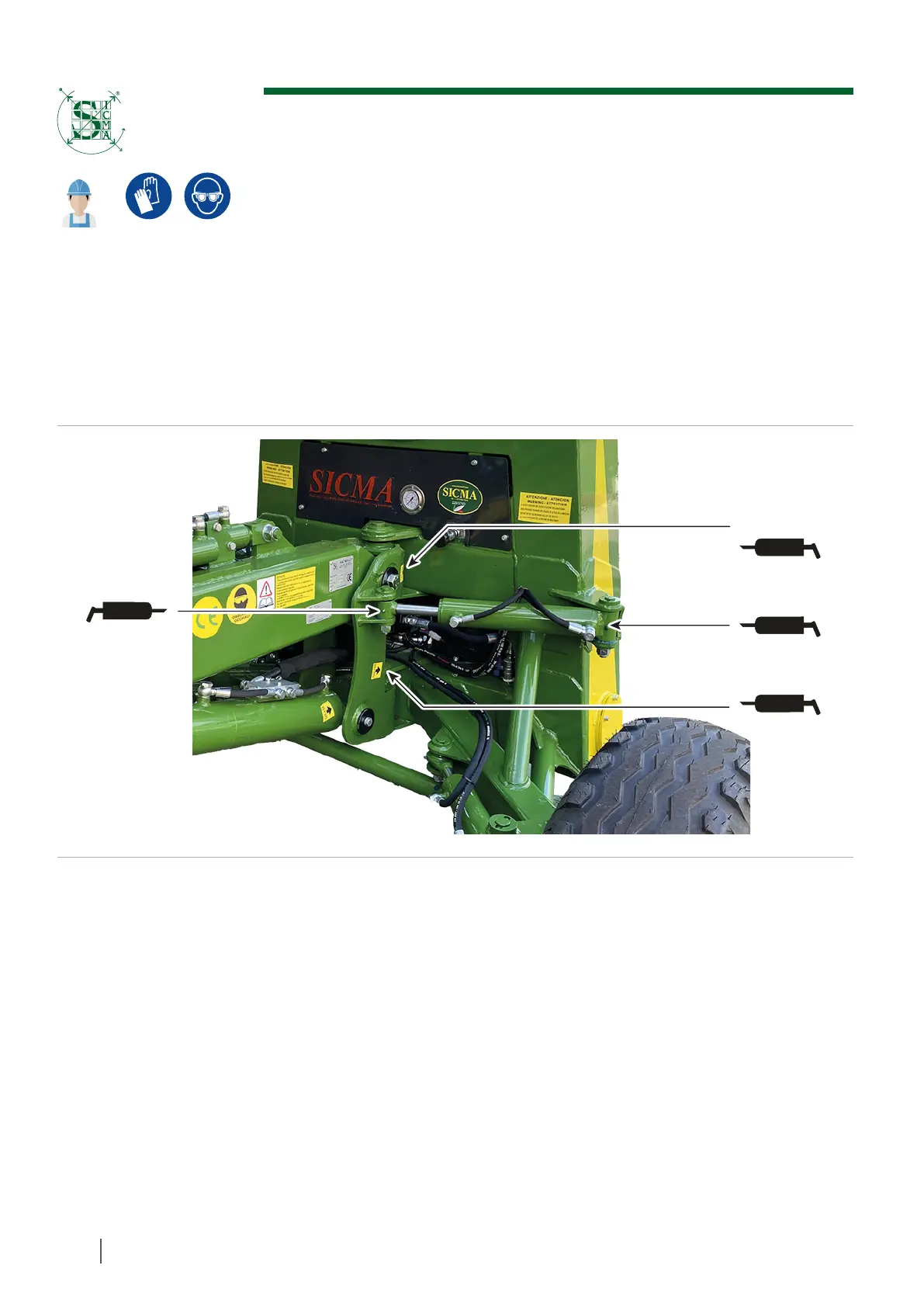

B) Grease the total rotation pins of the arm in the points indicated in Figure
81 with reference (1).
C) Grease the pins of the arm rotation jacks at the points indicated on
Figure 81 with reference (2). Carry out the operation for both jacks
(right side and left side) for rotating the arm.
2
1
2
1
(*) See par. “5.7” pag. 99
Figure 81
