6.10.6 Vibrating head hardware tightening check
Use a dynamometric key to check the correct tightening of the vibrating head
bolts; if necessary proceed with the tightening observing the values of the
tightening torques of the bolts.
The torque wrench must be approved and in good condition; do not use your
hands to tighten bolts.
6.10.7 Replacement of the rubber suspensor
In the event of excessive wear on a rubber suspensor, this must be replaced:
A) Use the controls in the cab to place the vibrating head on the ground.
B) Safely stop the machine. (*).
C) Remove the nuts (2) and washers (3) that secure the rubber suspensor
(1) to the jaw.
D) Replace the suspender (1) with a new one;
E) Refit the nuts (2) and washers (3); tighten the nuts (2).
3
2
2
3
1
(*) See par. “5.7” pag. 99

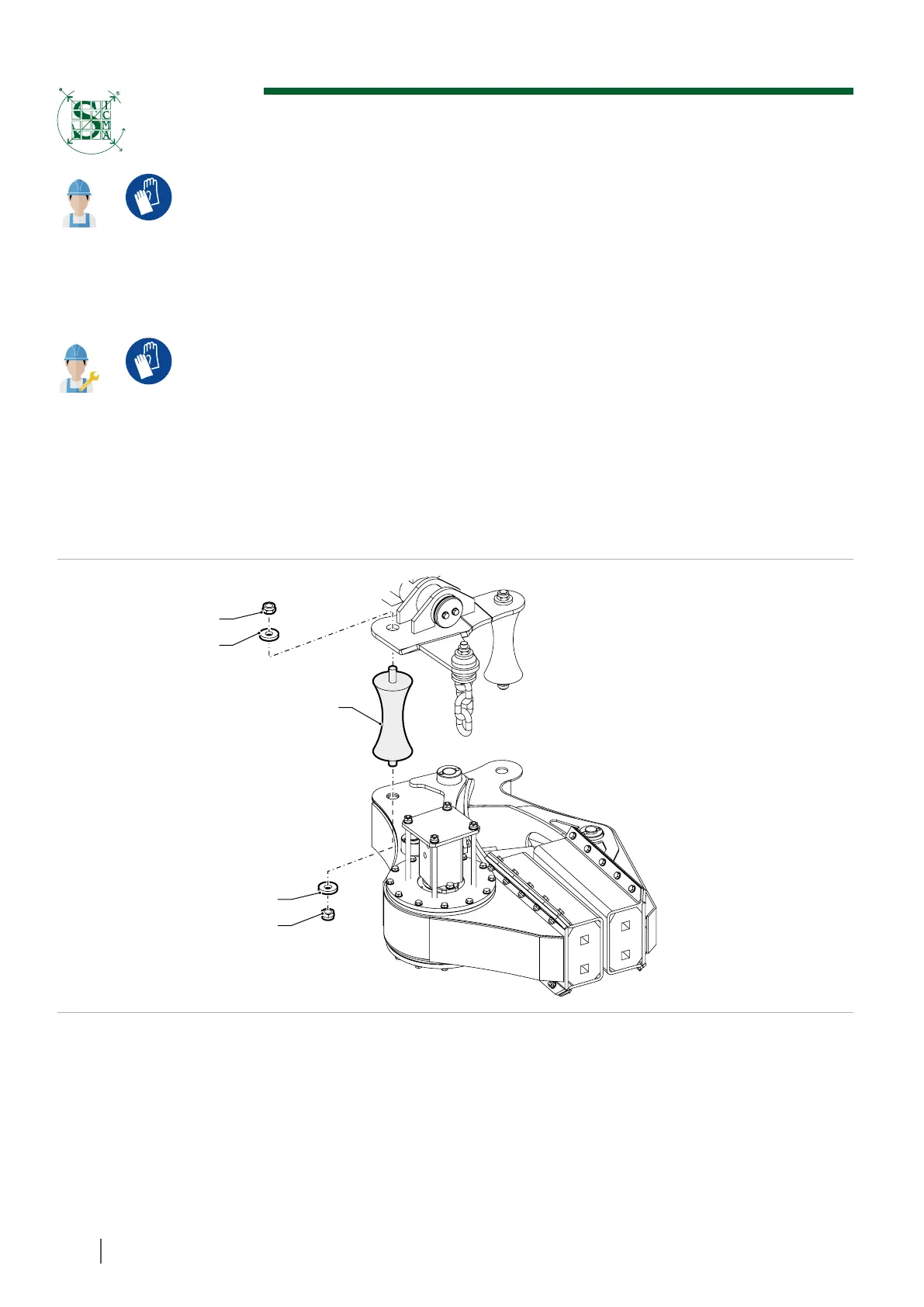

Figure 75
