6.7 Speed multiplier gearbox
6.7.1 Checking and restoring the lubricating oil level
To check the hydraulic oil level in the speed multiplier gearbox, proceed as
follows:
A) Park the machine on level, solid and firm ground.
B) Safely stop the machine. (*).
C) Check the lubricating oil level of the speed multiplier gearbox from the
sight glass (2).
NOTE
The oil level must be between the minimum and maximum references.
D) In case of insufficient level, restore it immediately.
E) Thoroughly clean the area around the filler plug (1) of any oil residue.
F) Remove the drain plug (1).
G) Fill in new oil until the correct level is reached, as indicated by the oil
sight glass (2).
H) Reposition and tighten the filler plug (1).
1
2
(*) See par. “5.7” pag. 99

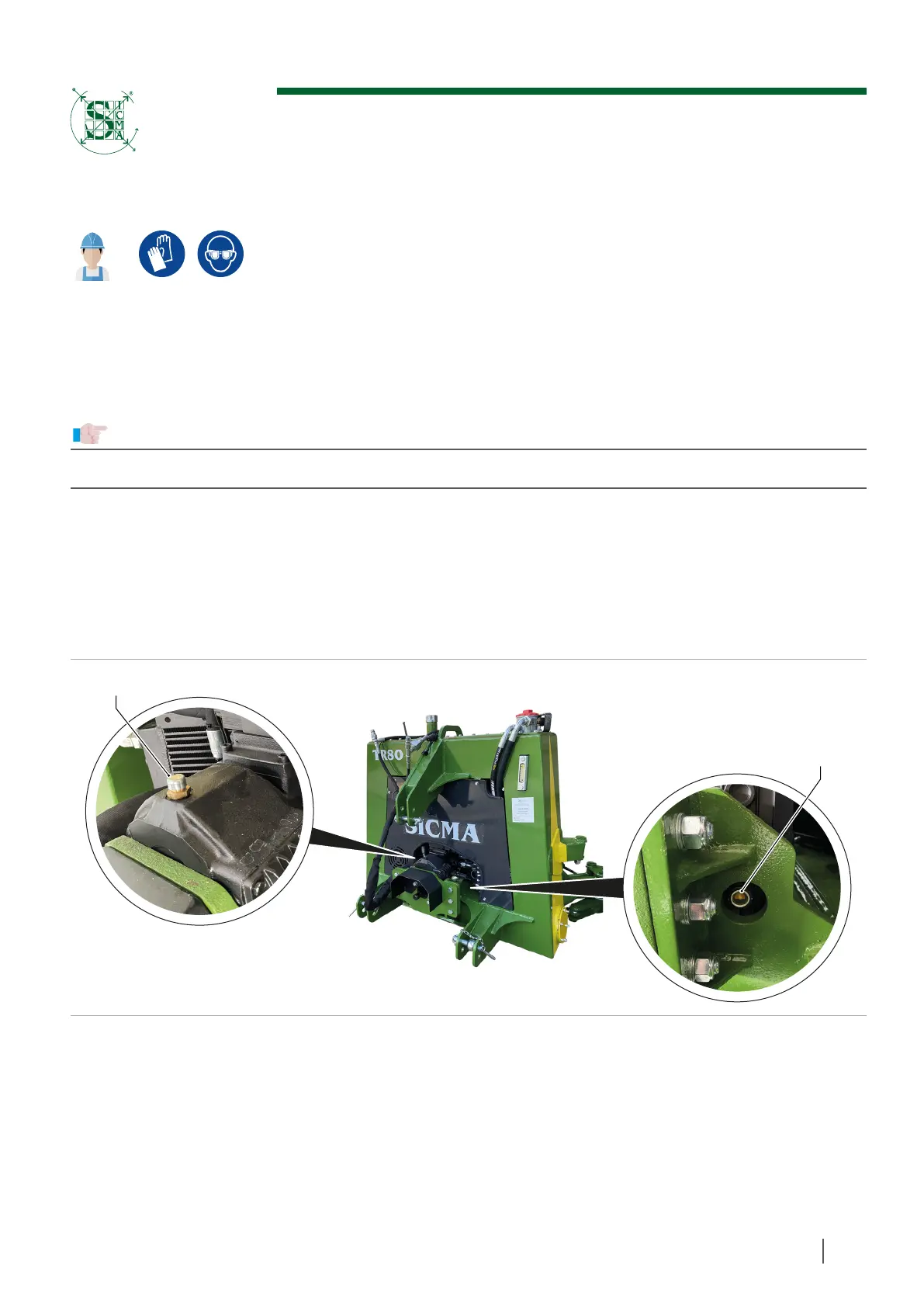

Figure 64
119
