Maintenance
6.10.10 Chain replacement
In case of excessive wear, evident deformation or breakage of the chain
holding the vibrating head, it is necessary to replace it:
A) Act the on the remote control to place the vibrating head on the ground.
B) Safely stop the machine. (*).
C) Remove the screw (1), nut (3) and washers (2) that secure the chain (5)
to the right jaw.
D) Unscrew the nut (4) to release the chain (5) from the vibrating head
frame.
E) Replace the worn chain with a new one.
F) Tighten the nut (4) to secure the new chain to the vibrating head frame.
G) Insert the screw (1), nut (3) and washers (2) to secure the chain (5) to
the right jaw.
H) Tighten the screws (1).
4
5
2 1
3 2
(*) See par. “5.7” pag. 99

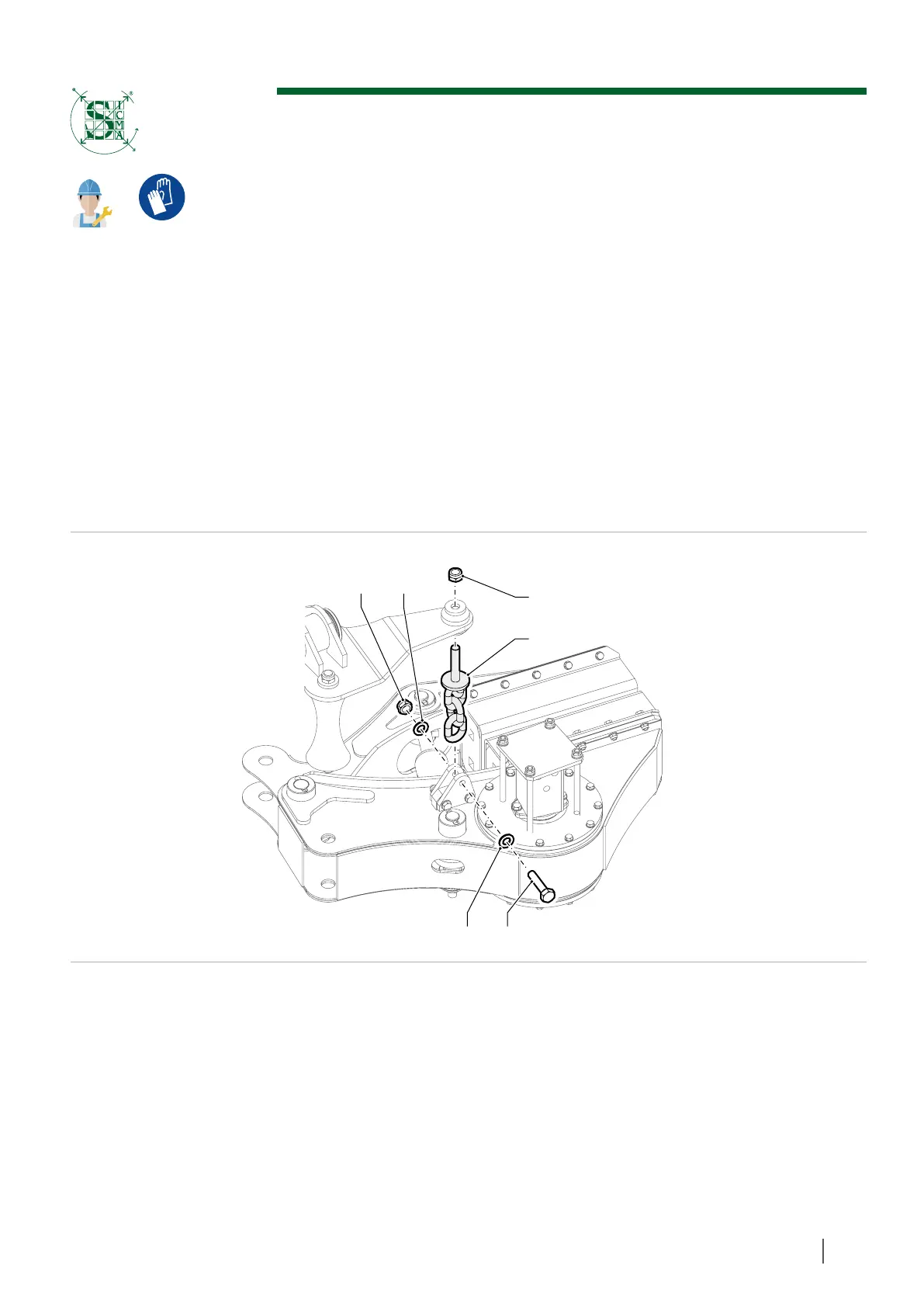

Figure 78
135
SICMA S.r.l.
