6.10.4 Greasing of the jack pins for transversal inclination
(tilting) and spider
The pins of the pivot jack of the vibrating head have two grease nipples
positioned as indicated by reference (1).
To grease the spider it is necessary to use the grease nipples positioned as
indicated by the reference (2).

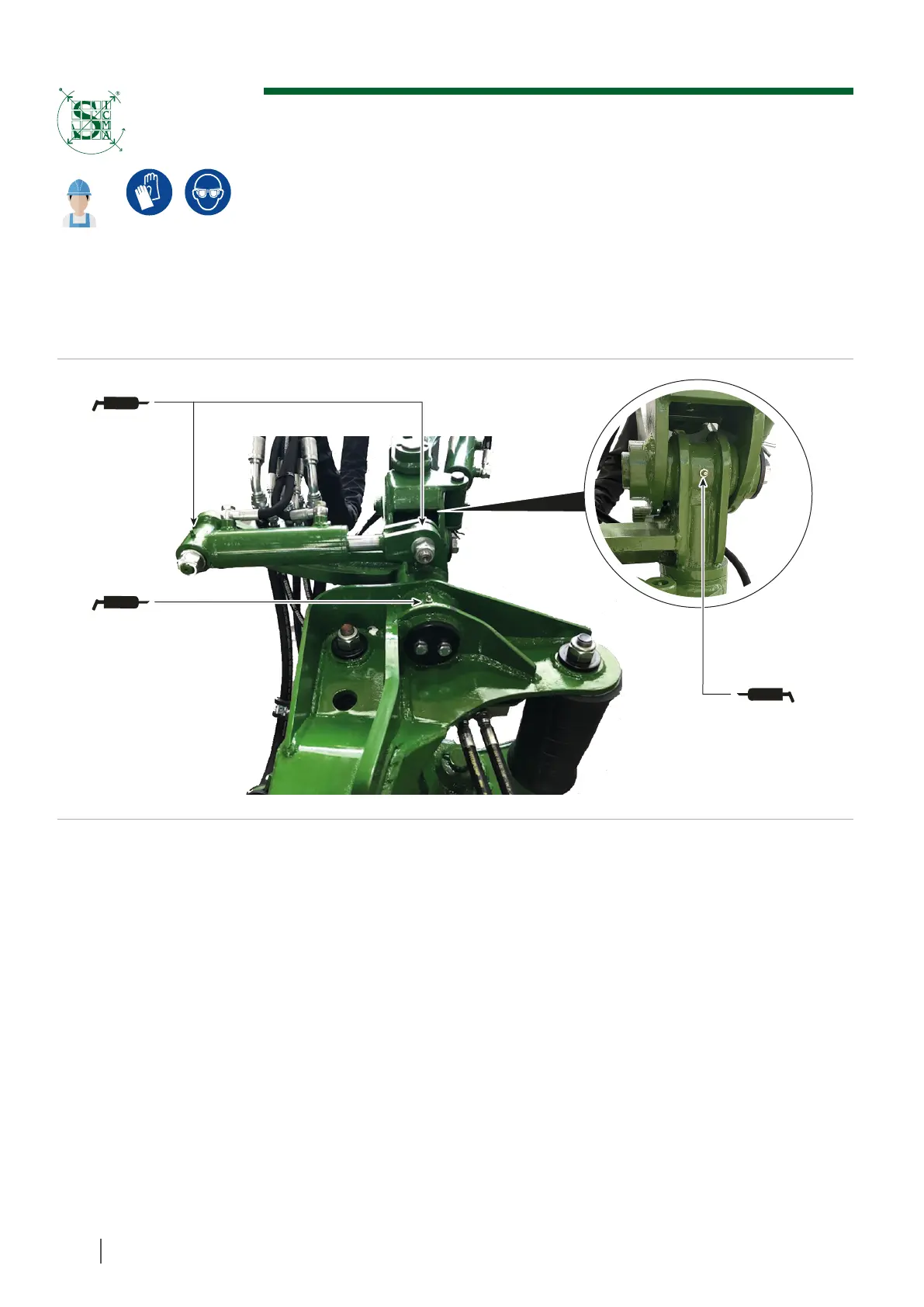

Inject lubricating grease at the points indicated at Figure 73.
1
2
2
Figure 73
