H) Removing the side protection (4) it is possible to carry out an inspection
and possible internal cleaning of the tank; the guards (4) are located on
both sides of the tank.
I) At the end of the operation, refit the side protection (4) using the relative
fixing screws.
J) Fill in new oil until the correct level is reached, as indicated on the oil
level gage (2).
NOTE
The oil level must be between the minimum and maximum references.
K) Tighten the filler plug (3).
L) Thoroughly clean the area around the filler plug (3) of any oil residue.
3
2
4

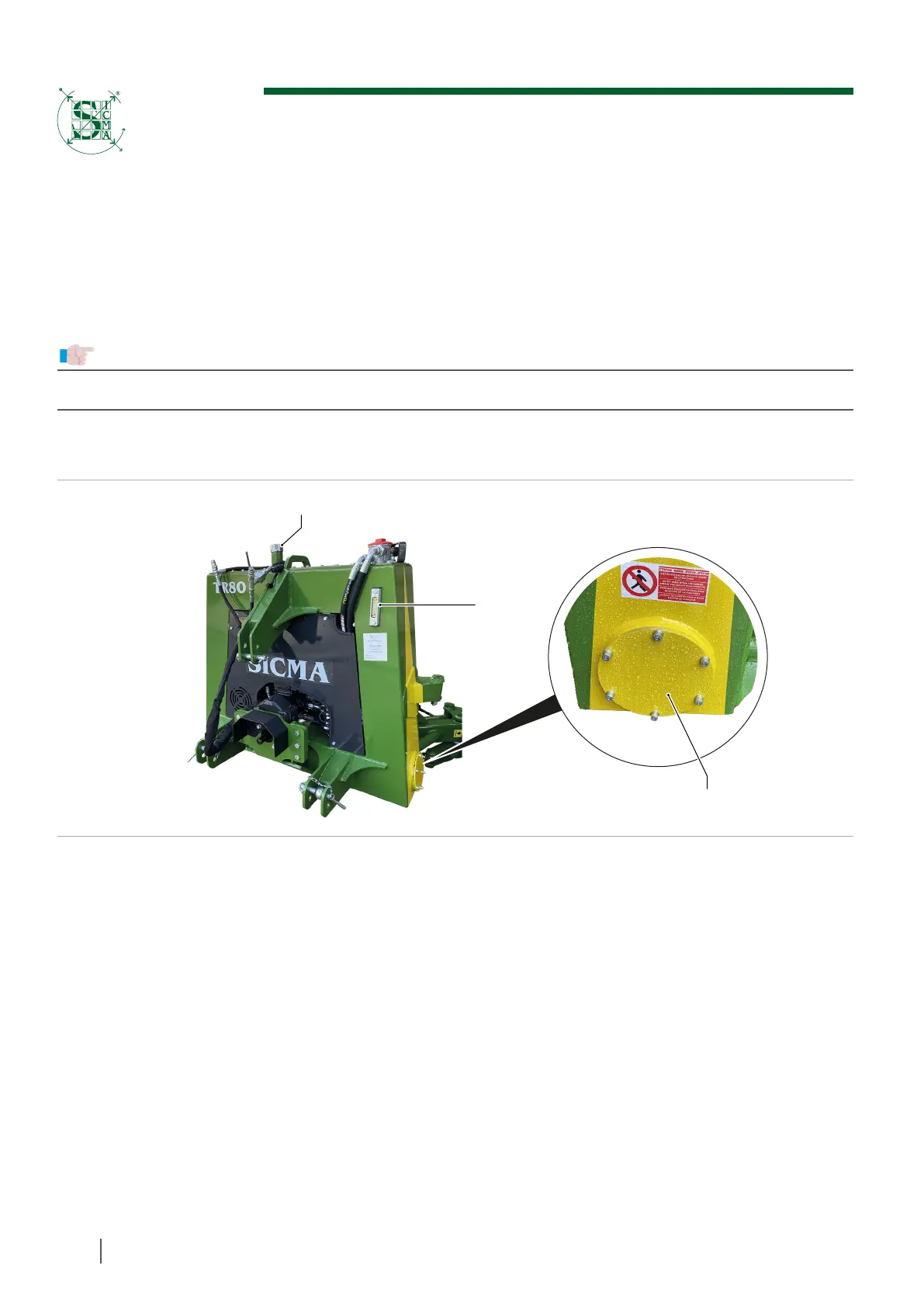

Figure 63
