Machine description and technical information

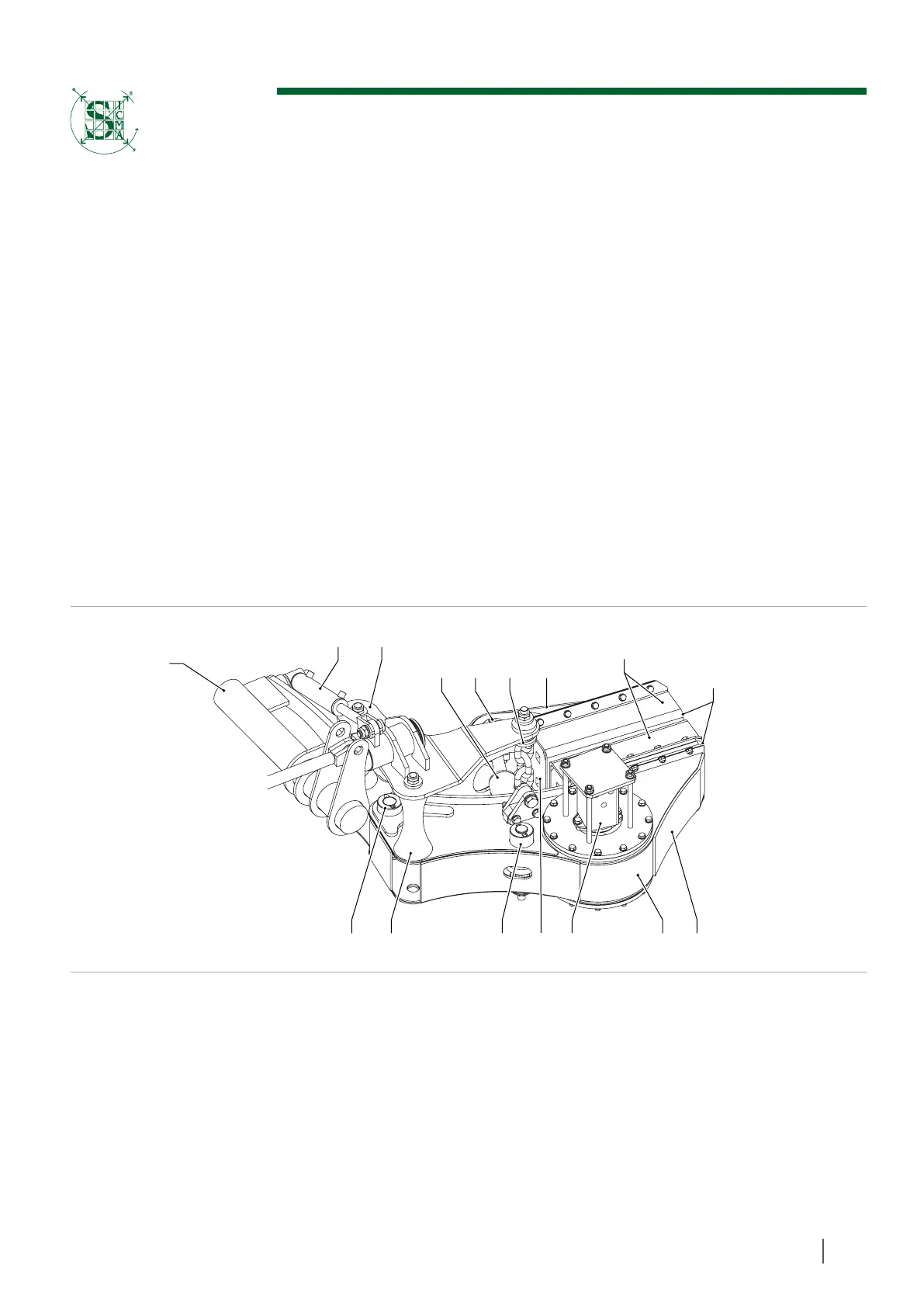

Main components
1) RH jaw
2) LH jaw
3) Kinematic motion system (inside vibrating head)
4) Vibrating head holding arms
5) Support for vibrating head holding arms
6) Jack for opening/closing the jaws of the vibrating head
7) Vibrating head transversal tilting hydraulic piston cylinder
8) Vibration hydraulic motor
9) Jaws hydraulic cylinder pins (opening and closing vibrating head)
10) Articulation pin
11) Rubber pillows
12) Rubber bands
13) Rubber suspensor
14) Vibrating head holding chain
11
5
2
12
6 9
47
14
1
8
31310
119
Figure 8
39
