Machine description and technical information
Solenoid valve specifications/details
1
2
3 4 5
6
8
7
9
10
11
12
Ref. Function Command code
1 Proportional by-pass valve - -
2 Additional free valve - -
3 Telescopic arm rotation H2 - right rotation L2 - left rotation
4 Umbrella case hatch H8 - hatch closure L8 - hatch opening
5 Umbrella H7 - umbrella opening L7 - umbrella closure
6 Vibrating head jaws Jaws opening. Jaws closing.
7 Vibration gear control Snail - 1st speed Hare - 2nd speed
8 Lateral tilting vibrating head H4 - tilting to the right L4 - tilting to the left
9 Vibrating head rotation H6 - right rotation L6 - left rotation
10 Head overturning H5 - lifting L5 - lowering
11 Telescopic arm H3 - extends L3 - retracts
12 Telescopic arm L1 - lifting H1 - lowering

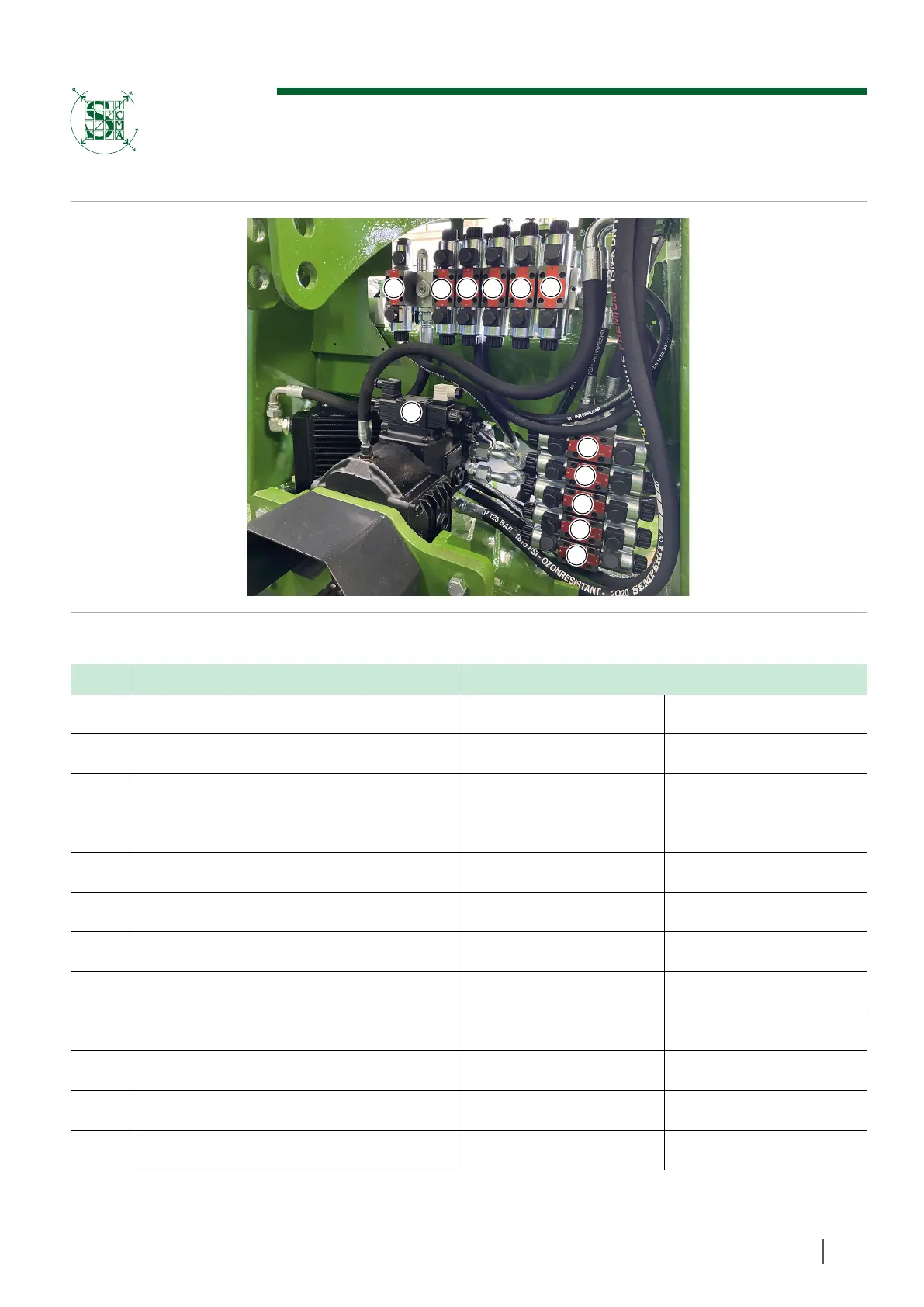

Figure 23
