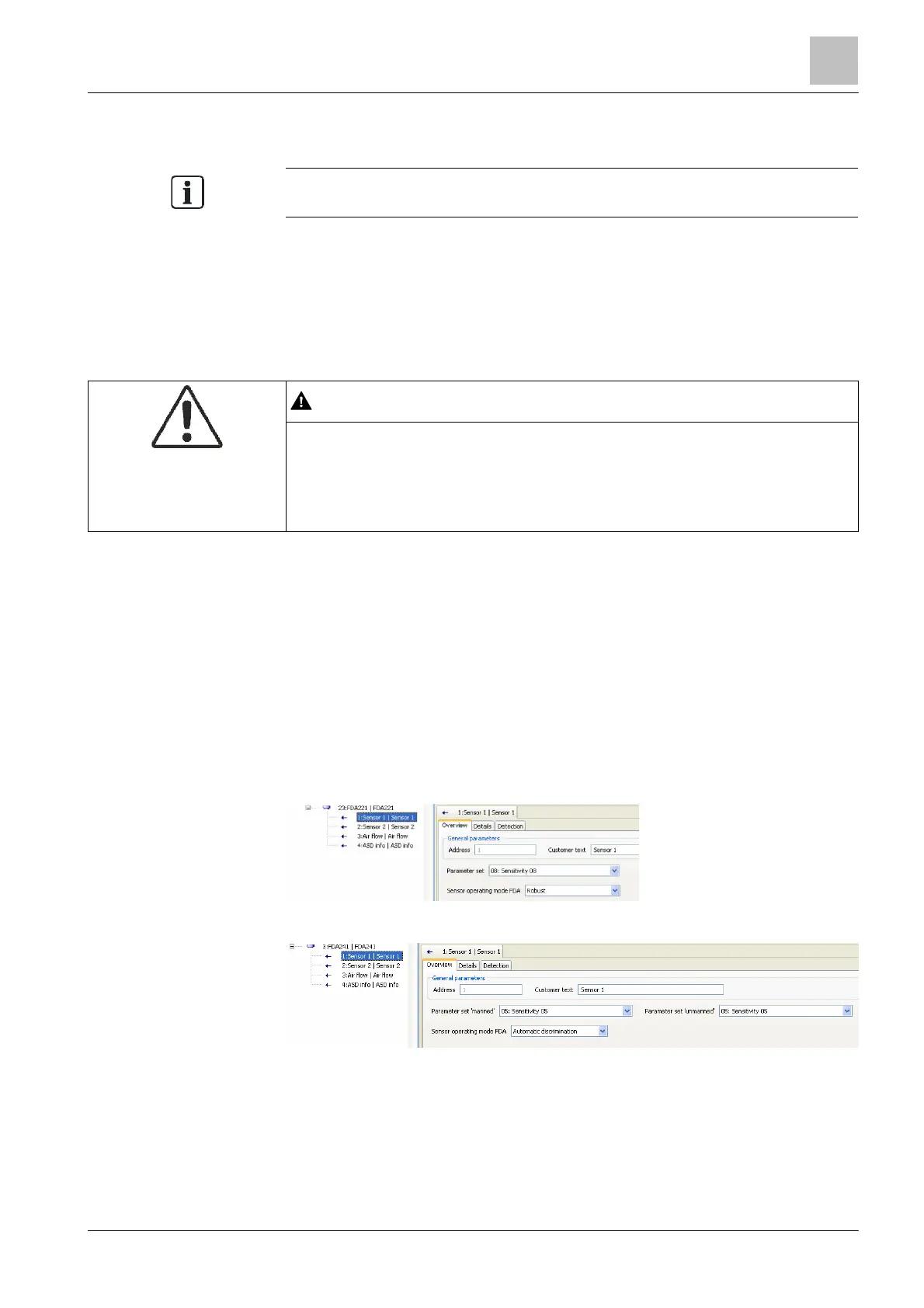

10.3.8 Aspirating smoke detector
You will find more information about the aspirating smoke detectors in document
A6V10334410. See chapter 'Applicable documents'.
The elements 'FDA221' and 'FDA241' each contain the ↑ following physical
channels:
● 'Sensor 1'
● 'Sensor 2'
● 'Air flow'
● 'ASD info'
WARNING
Incorrect sensor link for the
FDA221
and
FDA241
If the FDA221 or FDA241 sensors are assigned to different 'Zones', the detection
behavior corresponding to the ↑ parameter set is not guaranteed.
● Assign both FDA221 or FDA241 sensors to the same 'Zone' in the 'Detection
tr
ee
'.
Setting the properties of the aspirating smoke detector
1. Select the 'Hardware' task card.
2. In the tree view, open the ↑ 'Station' > the ↑ line card > the ↑ loop or the
↑ stub.
3. Open the element 'FDA221' or 'FDA241'.
4. Highlight a physical channel.
5. Set the properties you want in the detail editor. The properties are described in
the following sections.
Properties of the elements 'Sensor 1' and 'Sensor 2'
Figure 34: FDA221: Settings in the detail editor of the element 'Sensor 1'
Figure 35: FDA241: Settings in the detail editor of the element 'Sensor 1'
'Parameter set'
This setting specifies the ↑ parameter set of the detector for 'Manned operation'
and 'Unmanned operation'.
