Visibility configuration
The ↑ visibility that the event printer logs is defined in the 'Visibility' element.
The following selection is available:
● 'Site': Visibility for the entire ↑ site.
● 'Site without areas': Visibility for all events from the 'Hardware tree' of the site.
● 'Station': Visibility for one 'Station' within the site, with all ↑ areas in this
'Station'
● 'Station without areas': Visibility for all events from the 'Hardware tree' of the
'Station'.
● 'Area': Visibility on an area within a control panel

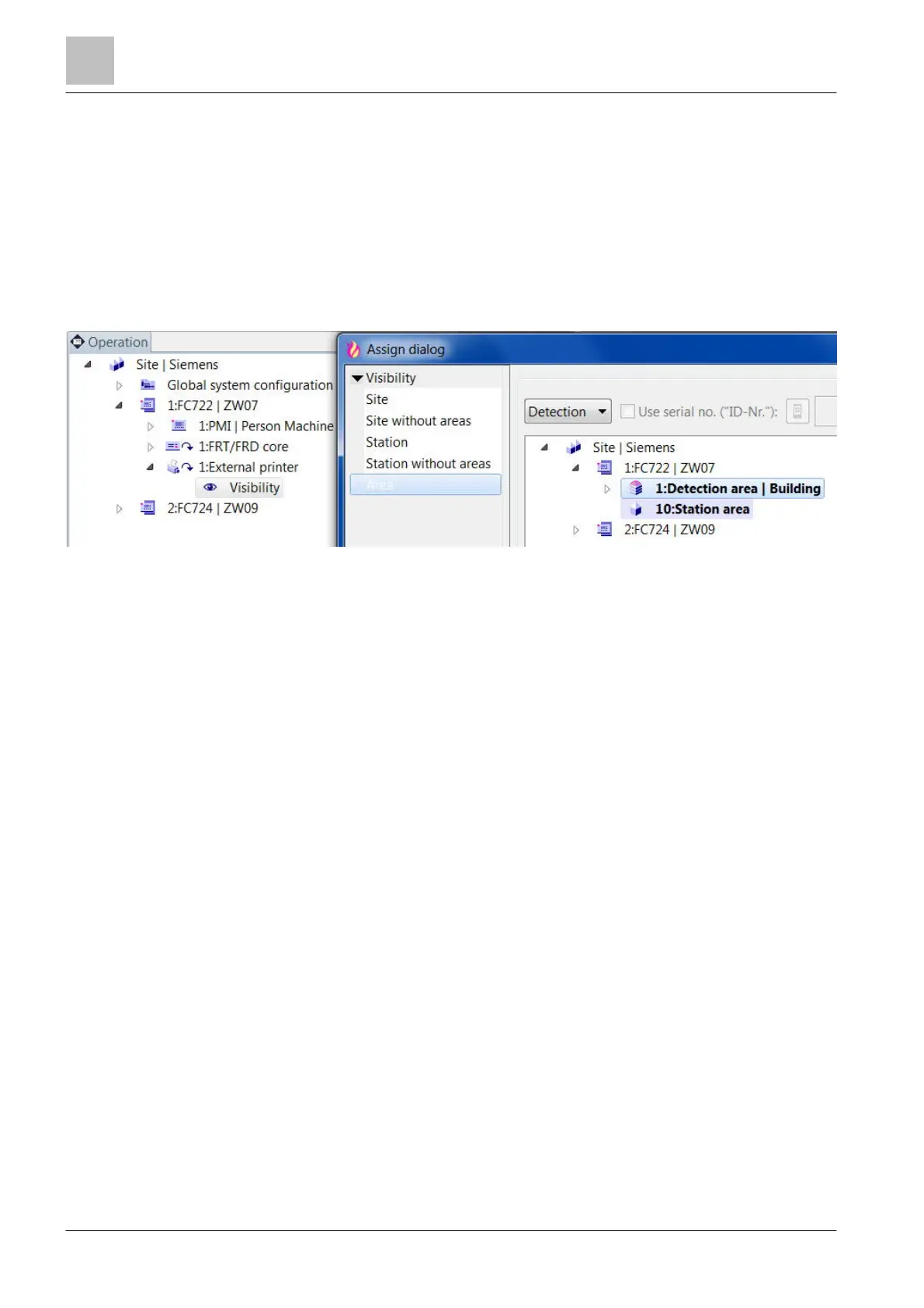

Figure 129: 'Assign dialog' window for assigning the visibility
To configure the visibility, proceed as follows:
1. Select the 'Operation' task card.
2. In the tree view, open 'Built-in printer' or 'External printer' and highlight
'Visibility'.
3. Open the 'Assign dialog' window.
a 'Visibility' list and the 'Hardware tree' or ↑ detection tree are displayed.
4. Select the site, station, or ↑ area and click on 'Assign' (you can assign the
visibility to several elements).
a 'Visibility' is assigned to the corresponding element.
13.7 Fire brigade periphery [DE]
The fire brigade periphery comprises the following devices:
● FBF: Fire brigade operating panel
● FSD: Fire brigade key depot
● FAT: Fire brigade indication panel
● FAT with FBF: Fire brigade indication panel with fire brigade operating panel
● FSE: Releasing element link [➙ 161]
The devices are connected as follows:
● FSD is assigned to the fire brigade periphery module FCI2001.
● FBF can either be connected via the fire brigade periphery module FCI2001 or
an RS485 interface.
● FAT and FAT with FBF are connected to the ↑ 'Station' via an RS485 serial
interface.
To configure the devices, the logical element must be created in the 'Operation'
task card and assigned to the corresponding hardware element.
